For 2023 Porsche 718 GT4RS
Vehicles Covered in This Guide
The 2023 Porsche 718 GT4RS.
Brake Clearance Information
In the engineering phase of wheel development we 3D scan factory brakes and review 2D aftermarket brake templates in order to optimize our barrel profiles and spoke curvatures. As a result, our wheels offer massive brake clearance so you can run the smallest possible wheel diameter.
* The factory 6 piston 408mm Steel and 410mm PCCBs require 20" wheels for proper clearance. Read our article for more info.
Available Wheel Designs (click images to enlarge)
|
Forged Designs |
|
|

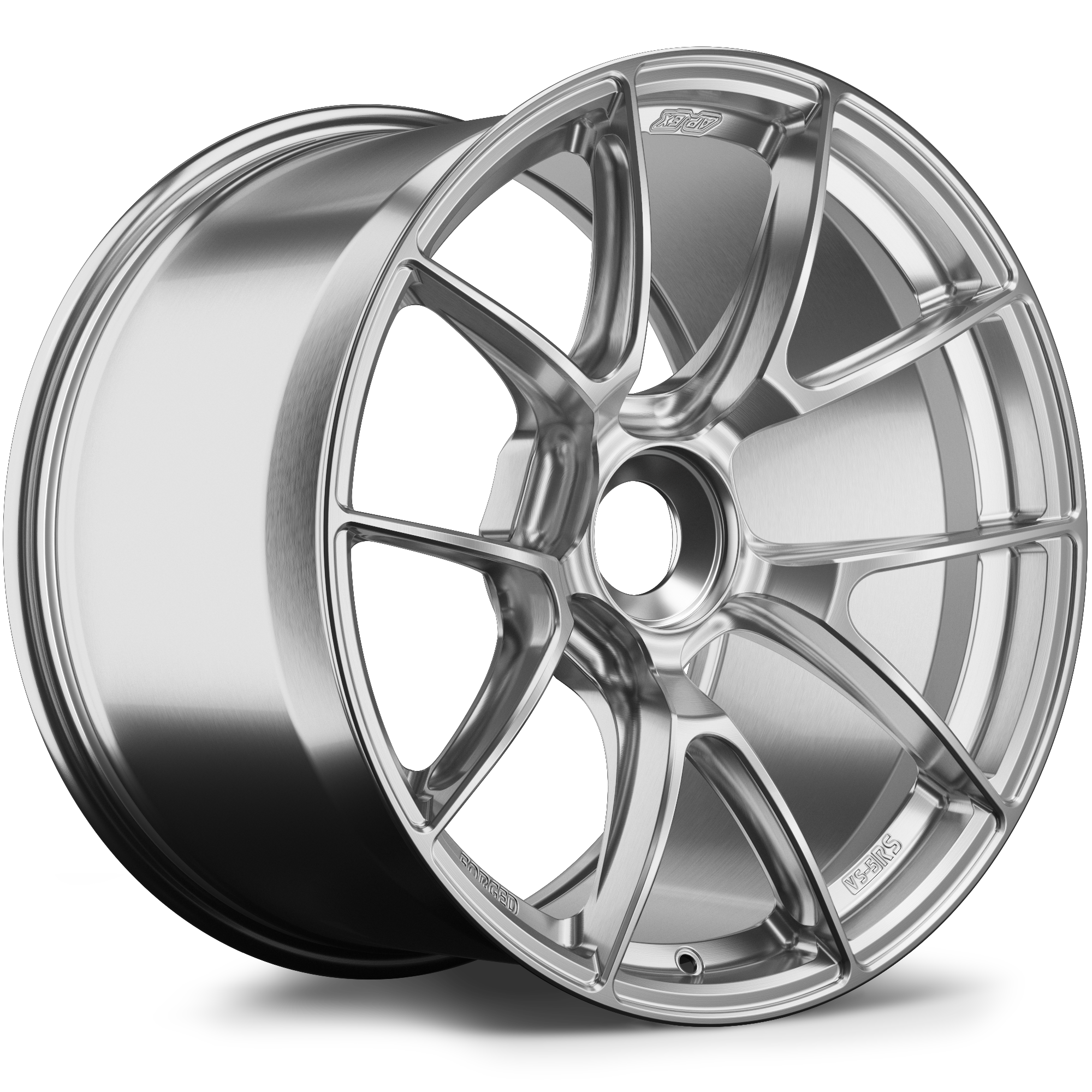

VS-5RS |
|
Performance Street & Track
Wider fitments for enhanced performance
Centerlock Wheel
- Front: 20x9" ET52 // Rear: 20x11" ET50
- Available in: VS-5RS
- Popular fitment
Tires
- APEX Staff Pick: Front: 245/35-20 // Rear: 295/30-20
- Factory GT4RS Tire Sizes
- Direct Fit
- Max Performance Summer: Continental Extremecontact Sport 02 (300TW), Michelin PS4S (300 TW)
- Extreme Performance Summer: Goodyear Supercar 3 (220 TW), Michelin Cup 2 Connect (240TW), Yokohama AD09 (200TW)
- R-Compound: Michelin Pilot Sport Cup 2 N1 (180 TW), Dunlop Sport Maxx Race 2 N1 (80 TW)
- Semi-Slick: Hoosier R7 (40TW)- Additional negative camber from front strut mount required
Additional Resources
Brake Clearance Information
- Factory Steel 6 piston 408mm - 20x9"ET52 clears
- Factory PCCB 6 piston 410mm - 20x9"ET52 clears
- Essex AP Racing Front 13.01.10073 CP9661 6 piston 394mm - 20x9"ET52 clears
- Essex AP Racing Rear 13.01.10185 CP9450 4 piston 380mm - 20x11"ET50 clears
Should I Dial in Negative Camber, and How Much is Right for me?
Whether you are a casual weekend track warrior that still enjoys your car on the street, or a hardcore racer competing for a spot on the podium, negative camber is a vital part of chassis setup that has many benefits. Not only will adding negative camber create more room for wider wheel and tire configurations, it more importantly improves handling, turn-in and tire longevity.Learn more in our blog article,The Positives of Negative Camber.
