G29 Z4 fitment guide

  • Updated

All 2019+ BMW Z4 models are covered in this guide.

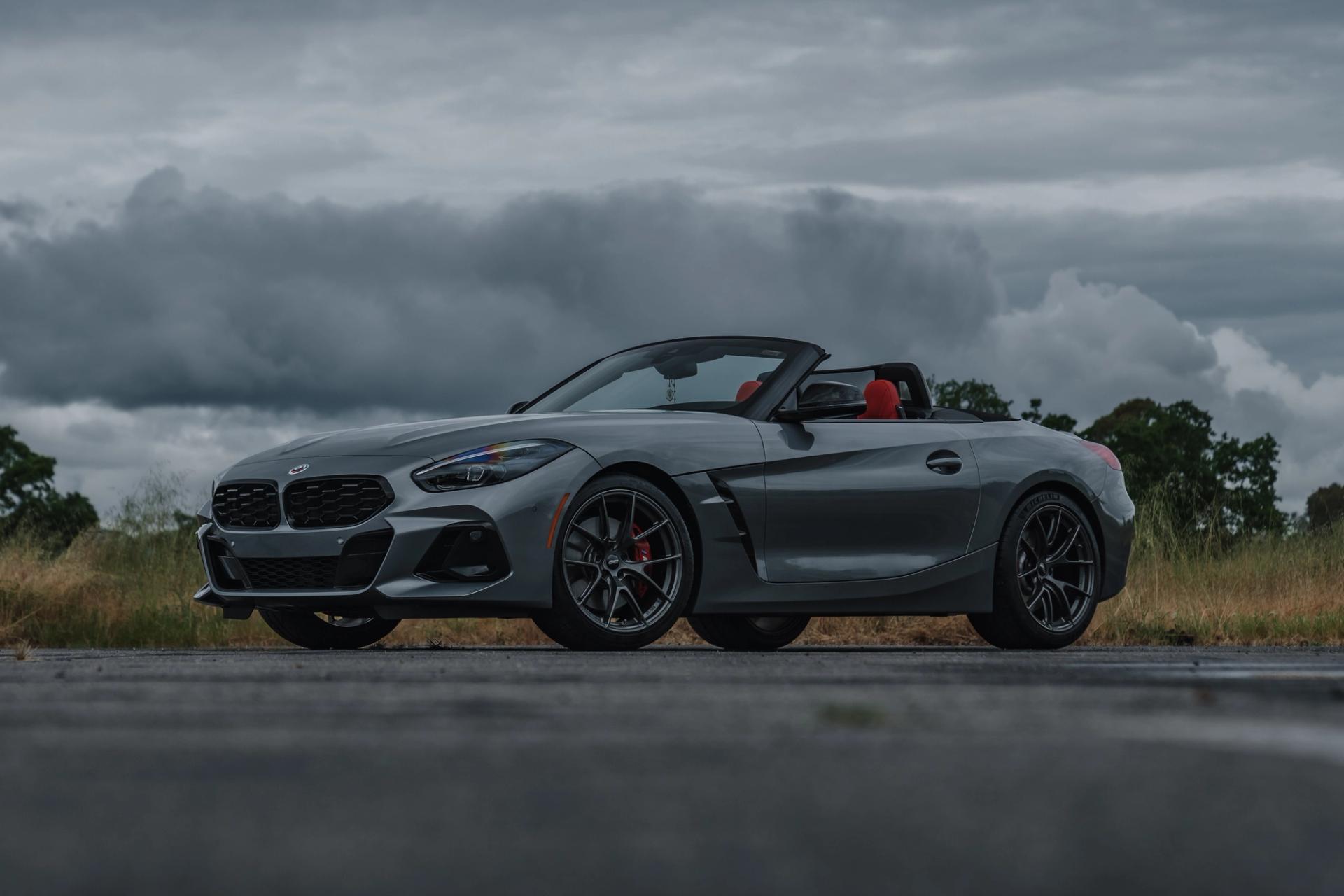

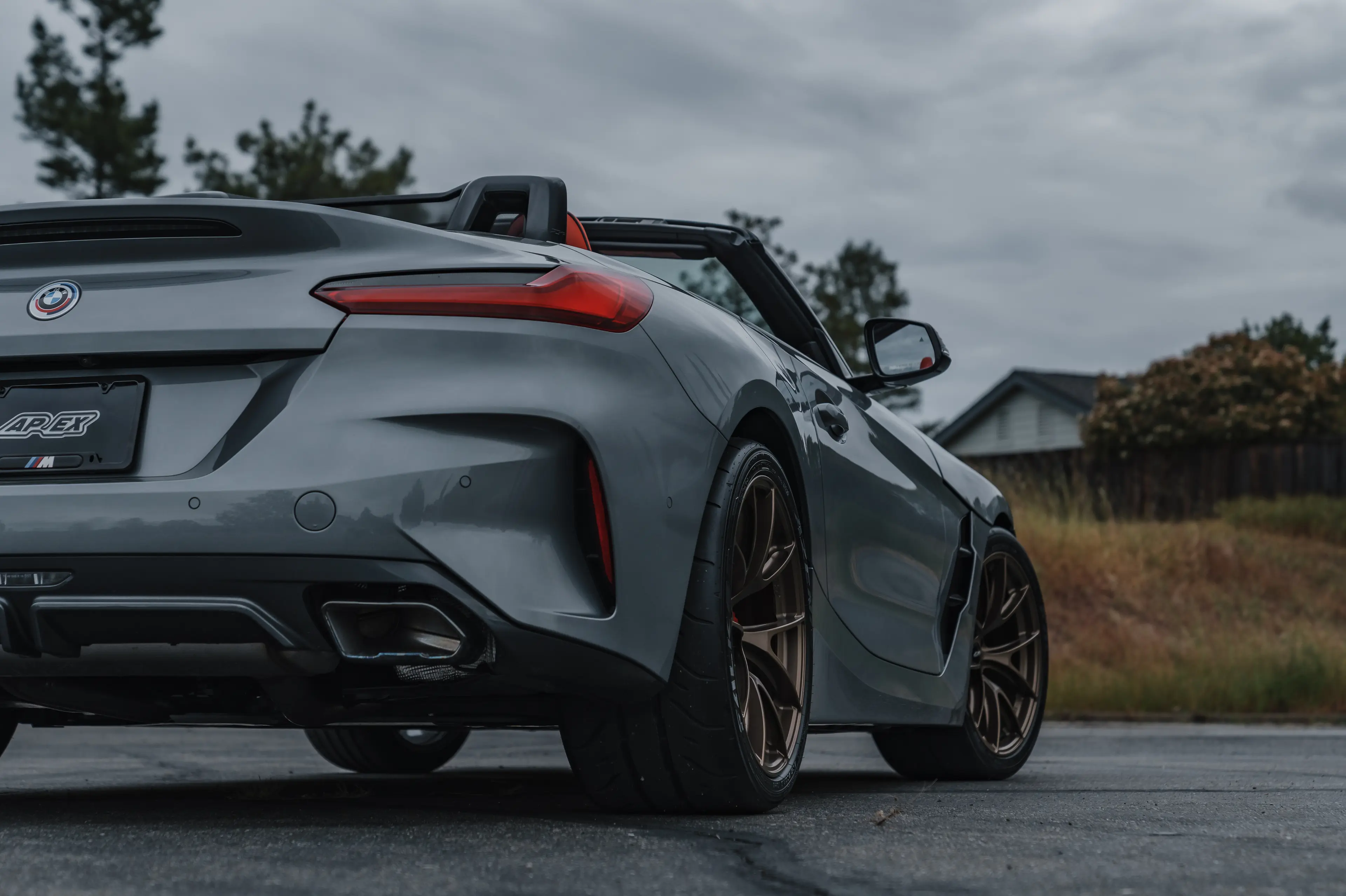

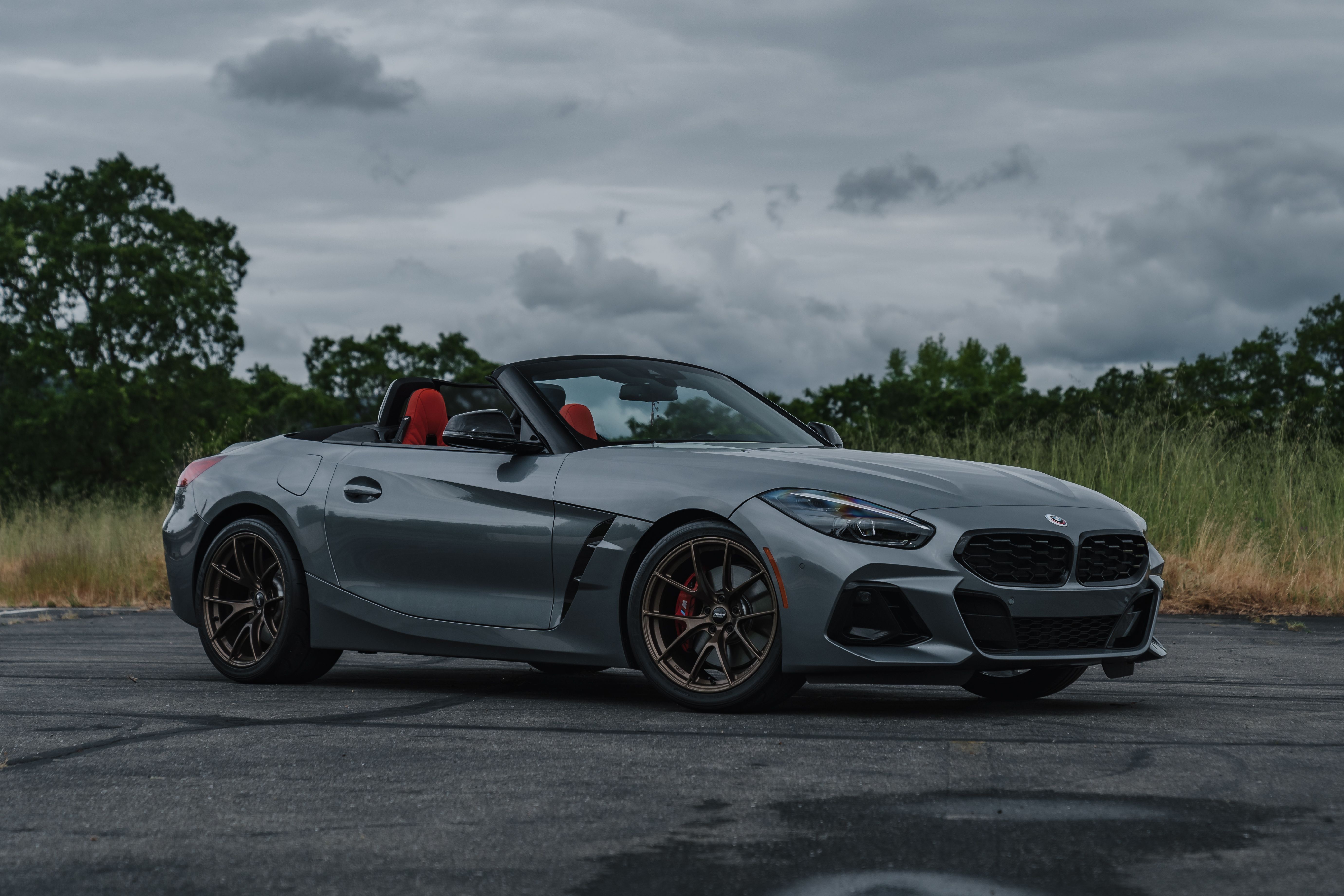

View all G29 Z4 Images

Vehicles Covered in this Guide

2019 - Current G29 Z4

Brake Clearance Information

In the engineering phase of wheel development we 3D scan factory brakes and review 2D aftermarket brake templates in order to optimize our barrel profiles and spoke curvatures. As a result, our wheels offer massive brake clearance so you can run the smallest possible wheel diameter.

Available Wheel Designs



Forged Designs Flow Formed Designs

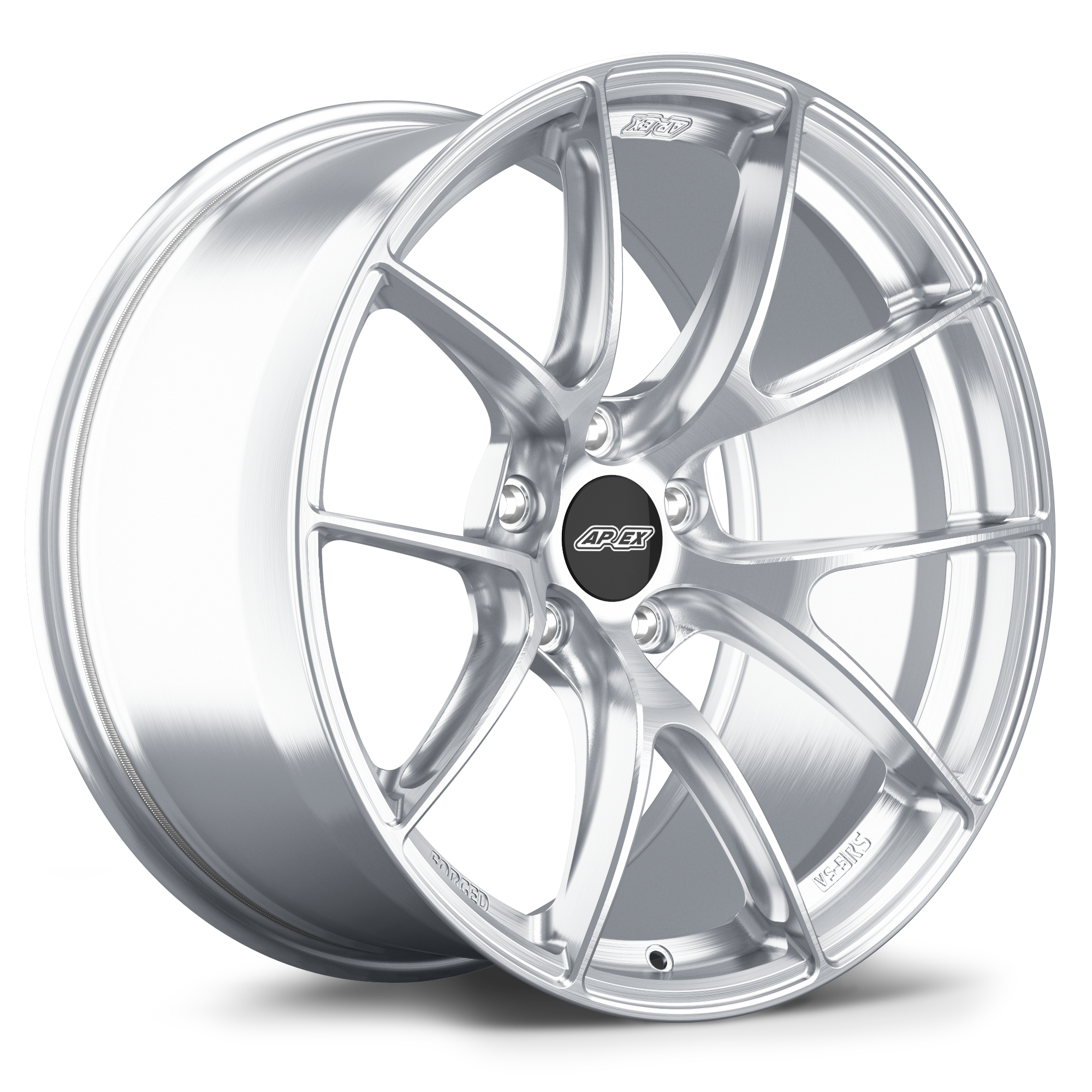

VS-5RS


Order Here

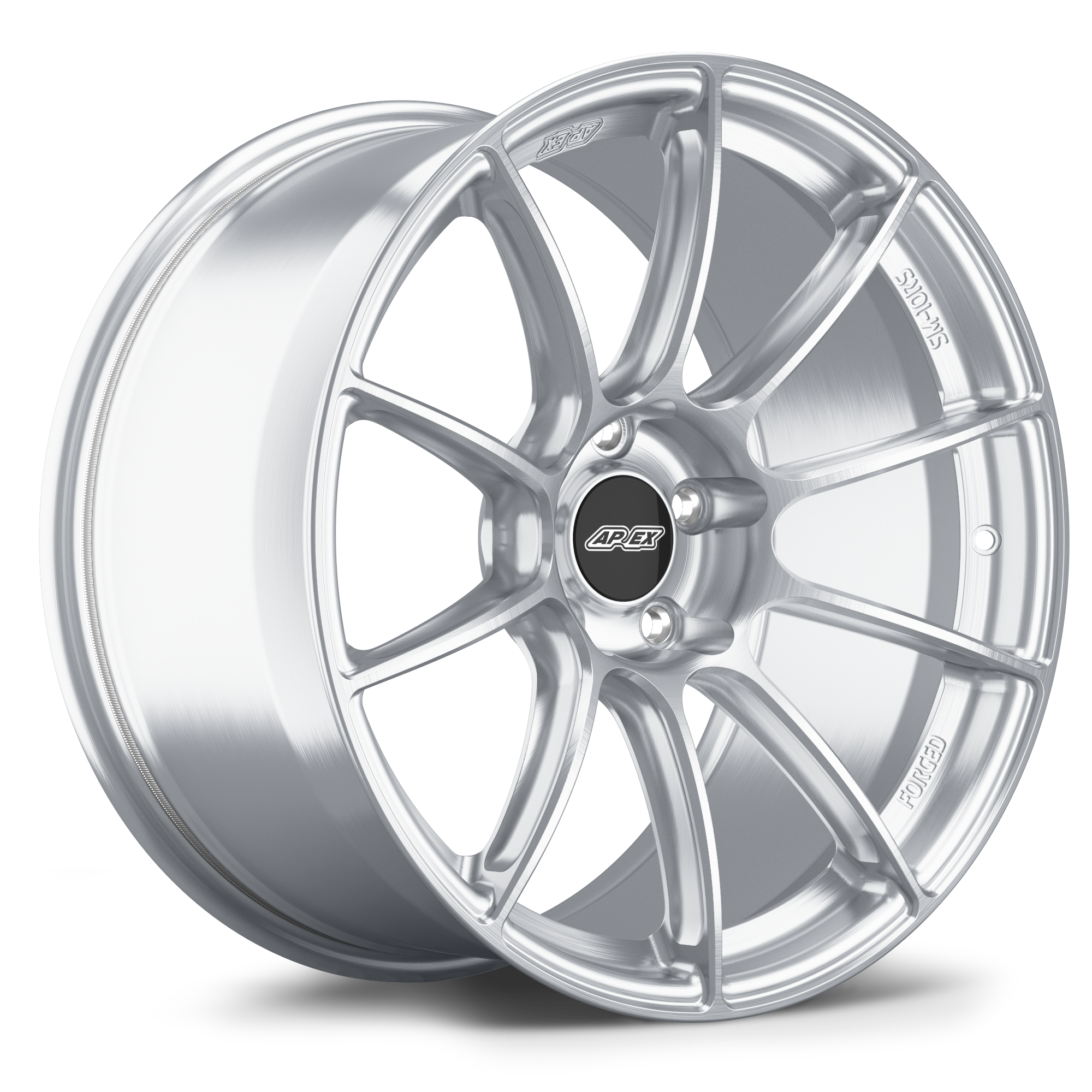

SM-10RS


Order Here

SM-10


Order Here

Bolt Pattern
5x112mm

Center Bore
66.6mm

Lug Seat
60º Conical

 Thread Pitch
M14x1.25mm





OEM+

Easy upgrades for street-driven cars


These bolt-on wheel fitments are ideal for enthusiasts enjoying their car day-to-day on the street, and they are typically paired with all-season or performance-oriented summer tires. These wheel and tire configurations will improve the appearance and performance of the car without requiring modifications to the factory suspension or alignment. Just bolt-on and enjoy!

While these wheel fitments can be used for track days and AutoX, performance will be left on the table. Drivers that prioritize performance should review our Performance Street & Track and/or Hardcore Track & Race sections below.



Staggered Configurations

Recommended for enthusiasts that prioritize rear-end grip/traction. Wheels and tires cannot be rotated front to rear and large staggers may induce understeer.

Wheels

  • Front: 18x9" ET25 // Rear: 18x10" ET38
    • Available in: VS-5RS
    • Same widths as the OE wheels with slightly lower offsets for a slightly more aggressive aesthetic.

Tires

  • APEX Staff Pick: (OEM Size on some Z4 models): Front 255/40-18 & Rear 275/40-18
    • All-Season - Michelin Pilot Sport AS4 (540TW), Yokohama Advan Sport A/S+ (440TW)
    • Ultra High Performance Summer - Firestone Firehawk Indy 500 (340TW), BFGoodrich G-Force Sport Comp-2 (340TW), Sumitomo HTR Z5 (320TW)
    • Max Performance Summer - Michelin Pilot Sport (300TW), Yokohama Advan Apex V601 (280TW), Continental Extremecontact Sport (340TW), Hankook V12 Evo2 (320TW), Kumho Ecsta PS91 (260TW)
    • Extreme Performance Summer - Goodyear Eagle F1 Supercar 3 (220TW), Yokohama Advan A052 (200TW)

Wheels

  • Front: 19x9” ET28 or ET25
  • Rear: 19x10" ET38
    • Popular Fitment
    • Available in: SM-10, VS-5RS

Tires

  • APEX Staff Pick: Front 255/35-19 & Rear 275/35-19
    • Allows use of OEM tires
    • Slight stretch depending on tire brand
    • All Seasons - Yokohama Advan Sport A/S+ (440TW), Bridgestone Potenza RE980AS (500TW)
    • Ultra High Performance Summer - Firestone Firehawk Indy 500 (340TW), Falken Azenis FK510 (300TW), Sumitomo HTR Z5 (320TW)
    • Max Performance Summer - Michelin Pilot Sport 4S (300TW), Yokohama Advan Apex V601 (280TW), Continental Extremecontact Sport (340TW), Bridgestone S-04 PP (280TW), Hankook V12 Evo2 (320TW), Kumho Ecsta PS91 (260TW)
    • Extreme Performance Summer - Yokohama AD08 R (200TW)

Wheels

  • Front: 20x9" ET25 // Rear: 20x10" ET38
    • Available in: VS-5RS

Tires

  • APEX Staff Pick: Front: 255/30-20 // Rear: 275/30-20
    • Direct Fit
    • All Season: N/A
    • Ultra-High Performance Summer: Falken Azenis FK510 (300 TW), Toyo Proxes Sport (240 TW)
    • Max Performance Summer: Michelin Pilot Sport 4S (300 TW), Continental Extremecontact Sport 02 (340 TW), Hankook Ventus V12 EVO2 (320 TW), Pirelli P Zero (220 TW)
    • Extreme Performance Summer:  N/A



Performance Street & Track

Wider fitments for enhanced performance


Whether you enjoy spirited street driving or you are a weekend track warrior chasing lap times, these wheel & tire configurations are ideal for enthusiasts looking for a more dramatic improvement in performance and they are typically paired with performance-oriented Summer tires or track-oriented R-compounds.



Square Configurations

Recommended for enthusiasts that want to mitigate understeer and rotate tires front & rear for extended life. Square configurations may compromise rear-end grip when compared to staggered configurations.

Wheels

  • Front & Rear: 18x10” ET30
    • Popular Fitment
    • Availability: SM-10, VS-5RS

Tires

  • Front Tire Fitment Notes: The implications of fitting wider and taller tires on the Z4 carry over from our experience with the A90/MKV Supra. Learn more here: Supra 18" Wheels Technical Article
  • APEX Staff Pick: 275/35-18
    • Max Performance Summer - Michelin Pilot Sport 4S (300TW), Continental Extreme Contact Sport (340TW), Bridgestone S-04 PP (280TW), Hankook V12 Evo2 (320TW), Kumho Ecsta PS91 (260TW)
    • Extreme Performance Summer - Dunlop Direzza ZIII (200TW), Falken Azenis RT660 (200TW), Nankang CR-1 (200 TW), Goodyear Eagle F1 Supercar 3 (220TW), BFGoodrich G-Force Rival S 1.5 (200TW), Maxxis VR-1 (200TW)
    • R Compounds - Toyo Proxes RA1 (100TW), Toyo Proxes R888R (100TW), Goodyear Eagle F1 Supercar 3R (100TW), Nitto NT01 (100TW), Nankang AR-1 (100TW), Maxxis RC-1 (100TW)
  • Taller Alternative: 275/40-18
    • Tall front tire, may rub fender liner under suspension compression
    • 5mm front spacers may be needed for tire compounds that run wide. Coilovers that limit inner clearance are not recommended.
    • May require additional negative camber up front to prevent rubbing
    • Max Performance Summer - Yokohama Advan Apex V601 (280TW), Continental Extremecontact Sport (340TW), Hankook V12 Evo2 (320TW), Kumho Ecsta PS91 (260TW)
    • Extreme Performance Summer - Hankook RS-4 (200 TW), Goodyear Eagle F1 Supercar 3 (220TW), Yokohama Advan A052 (200TW)
    • R Compounds - Toyo R888R (100TW), Nitto NT01 (100TW)
  • Wider Alternative: 285/35-18
    • 5mm front spacers minimum are required. Wider spacers may be required depending on strut configuration. Coilovers that limit inner clearance are not recommended.
    • Extreme Performance Summer - Hankook RS-4 (200 TW)



Staggered Configurations

Recommended for enthusiasts that prioritize rear-end grip/traction. Wheels and tires cannot be rotated front to rear and large staggers may induce understeer.



Wheels

  • Front : 18x10” ET30
  • Rear: 18x11" ET40
    • Popular Fitment
    • Available in: SM-10, VS-5RS

Tires

  • APEX Staff Pick: Front 265/35-18 & Rear 285/35-18
    • Max Performance Summer - Michelin Pilot Sport 4S (300TW), Bridgestone Potenza S-04 Pole Position (280TW), Hankook V12 Evo2 (320TW), Kumho Ecsta PS91 (260TW)
    • Extreme Summer - Hankook RS-4 (200 TW), Maxxis VR-1 (200TW)
  • Wider Rear Alternative: Front 265/35-18 & Rear 295/35-18
    • Max Performance Summer - Continental ExtremeContact Sport (340TW), Michelin Pilot Sport 4S (300TW)
    • Extreme Summer - Yokohama Advan A052 (200TW)
  • Wider Front Alternative: Front 275/40-18 & Rear 295/35-18
    • Tall front tire, may rub fender liner under suspension compression
    • 5mm front spacers may be needed when running aggressive tire compounds with OE suspension.  Coilovers that limit inner clearance are not recommended.
      • Max Performance Summer - Michelin Pilot Super Sport (300TW), Continental ExtremeContact Sport (340TW)
      • Extreme Summer - Yokohama Advan A052 (200TW)
  • Narrower Alternative (OEM Size on some Z4 models): Front 255/40-18 & Rear 275/40-18
    • Slight Stretch
      • Max Performance Summer - Michelin Pilot Sport (300TW), Yokohama Advan Apex V601 (280TW), Continental Extremecontact Sport (340TW), Hankook V12 Evo2 (320TW), Kumho Ecsta PS91 (260TW)
      • Extreme Performance Summer - Goodyear Eagle F1 Supercar 3 (220TW), Yokohama Advan A052 (200TW)

Wheels

  • Front :19x9.5” ET25
  • Rear: 19x11" ET40
    • Popular Fitment
    • Available in: SM-10, VS-5RS

Tires

  • APEX Staff Pick : Front 265/35-19 & Rear 305/30-19
    • 3mm rear spacers may be required with tires that run wide
    • Max Performance Summer - Michelin Pilot Sport 4S (300TW), Continental ExtremeContact Sport (340TW), Bridgestone S-04 PP (280TW), Hankook V12 Evo2 (320TW), Kumho Ecsta PS91 (260TW)
    • Extreme Summer - Yokohama Advan Neova AD08 R (200TW), Falken Azenis RT660 (200TW), Goodyear Eagle F1 Supercar 3 (220TW)
    • R Compounds - Toyo Proxes R888R (100TW), Michelin Pilot Sport Cup 2 (180TW), Pirelli P Zero Trofeo R (60TW)
  • Wider Alternative: Front 275/30-19 & Rear 305/30-19
    • May rub on front struts or fenders with track oriented 200tw or less track tires that run wide.
    • 3mm rear spacers may be required with tires that run wide
      • Max Performance Summer - Michelin Pilot Sport 4S (300TW), Continental Extremecontact Sport (340TW), Hankook V12 Evo2 (320TW), Kumho Ecsta PS91 (260TW)
      • Extreme Performance Summer - Yokohama Advan Neova AD08 R (200TW), Falken Azenis RT660 (200TW)
  • Narrower Alternative: Front 265/35-19 & Rear 285/35-19
    • Max Performance Summer - Michelin Pilot Sport 4S (300TW), Yokohama Advan Apex V601 (280TW), Continental Extremecontact Sport (340TW), Bridgestone S-04 PP (280TW), Hankook V12 Evo2 (320TW), Kumho Ecsta PS91 (260TW)
    • Extreme Summer - Goodyear Eagle F1 Supercar 3 (220TW), Michelin Pilot Sport Cup 2 240 Connect (240TW)
    • R Compounds - Toyo Proxes R888R (100TW), Goodyear Eagle F1 Supercar 3R (100TW)
  • OEM Stagger: Front 255/35-19 & Rear 275/35-19
    • Allows use of OEM tires
    • Slight stretch depending on tire brand
    • Notable Availability
      • Max Performance Summer - Michelin Pilot Sport 4S (300TW), Yokohama Advan Apex V601 (280TW), Continental Extremecontact Sport (340TW), Bridgestone S-04 PP (280TW), Hankook V12 Evo2 (320TW), Kumho Ecsta PS91 (260TW)
      • Extreme Summer - Advan Neova AD08 R (200TW)
      • R Compound - Michelin Pilot Sport Cup 2 (180TW)





Hardcore Track & Race

All-out performance for fastest lap times

These wheel and tire configurations are best suited for hardcore track junkies and club racers competing for a spot on the podium.  Everything from Extreme Summer tires to full Racing Slicks are commonly used depending on your experience behind the wheel, class rules, etc.

The majority of these fitments were developed for the A90 Supra. With the architecture sharing between the 2 models, most of the track-oriented fitments developed for the Supra carry over to its convertible twin. One area of concern we noted was a fuel filler pipe and clamp assembly in the passenger side rear wheelwell of the Z4 that came closer to wider 305-section tires.


305/30-19 Falken RT660s on our 19x11 ET40s, rear passenger side inner clearance

We've limited our recommendations to slightly narrower tires for rear fitments or spacer notes to account for this difference.



Aftermarket coilovers with a slimmer silhouette in comparison to the stock struts are recommended. Not all aftermarket coilovers provide a slim enough silhouette to accommodate 11” wheels on the front without the use of spacers, so please contact an APEX product expert if you have any questions. List of confirmed aftermarket that allows no spacers:

  • JRZ RS Pro Coilovers
  • KW Clubsport Coilovers
  • Motion Control Suspension (MCS) Coilovers
  • Megan Racing Street Series Coilovers
  • HKS Height Adjustable Springs on Factory Struts

Additional Negative Camber Required. For both on-track performance and rub-free fitment, we recommend dialing in negative camber with these aggressive track setups. The amount of camber required will vary based on tire choice and ride height.

Front Tire Fitment Notes: Supra 18" Wheels Technical Article

11" Wheel Width Fitment Notes: Go Wider With Apex Technical Article



Square Configurations

Recommended for enthusiasts that want to mitigate understeer and rotate tires front & rear for extended life. Square configurations may compromise rear-end grip when compared to staggered configurations.



Wheels

  • Front & Rear: 18x11” ET40
    • Popular Fitment
    • Available in: EC-7RS, SM-10, VS-5RS
    • Detailed Article with on-car fitment examples here.
    • Aftermarket suspension/coilovers required with a smaller silhouette
    • Aggressive negative camber required up front, -3° minimum, more is better with wider tires.
    • These wheels may contact front lower control arms at full lock
    • 11" front wheels are not compatible with most aftermarket brake duct kits

Tires

  • APEX Staff Pick: 295/30-18
    • Extreme Performance Summer - Michelin Pilot Sport Cup 2 Connect (240TW), Yokohama Advan A052 (200TW)
    • R Compounds - Toyo Proxes R888R (100TW), Nankang AR-1 (100TW), Pirelli P Zero Trofeo R (60TW)
    • Semi-Slicks - Hoosier A7 (40TW), Hoosier R7 (40TW), Toyo Proxes RR (40TW)
  • Taller Alternative: 295/35-18
    • Extreme Performance Summer - Yokohama Advan A052 (200TW)
  •



Wheels

  • Front & Rear: 19x11” ET40
    • Available in: SM-10, VS-5RS
    • Supra Fitment notes here, see last on car posting for example.
    • Aftermarket coilovers required with smaller silhouette, as well as aggressive negative camber
    • These wheels may contact front lower control arms at full lock
    • 11" front wheels are not compatible with most aftermarket brake duct kits

Tires

  • APEX Staff Pick: 295/30-19
    • Extreme Performance Summer:Yokohama Advan Neova AD08 R (200TW), Goodyear Eagle F1 Supercar 3 (220TW), Michelin Pilot Sport Cup 2 Connect (240TW)
    • R Compounds: Toyo Proxes R888R (100TW), Pirelli P Zero Trofeo R (60TW)
    • Semi-Slicks: Hoosier A7 (40TW), Hoosier R7 (40TW), Toyo Proxes RR (40TW)
    • Slicks: Pirelli DH
  • Wider Alternative: 305/30-19
    • 3mm rear spacers recommended
    • Extreme Performance Summer: Yokohama Advan Neova AD08 R (200TW), Bridgestone Potenza RE-71R (200TW), Goodyear Eagle F1 Supercar 3 (220TW), BFGoodrich G-Force Rival S 1.5 (200TW), Falken Azenis RT660 (200TW), Nankang CR-1 (200 TW)
    • R Compounds: Toyo Proxes R888R (100TW), Nankang AR-1 (100TW), Pirelli P Zero Trofeo R (60TW), Nitto NT01 (100TW), Goodyear Eagle F1 Supercar 3R (100TW)
    • Slicks: Pirelli DH





Staggered Configurations

Recommended for enthusiasts that prioritize rear-end grip/traction. Wheels and tires cannot be rotated front to rear and large staggers may induce understeer.

Wheels

  • Front :18x10” ET30
  • Rear: 18x11" ET40
    • SM-10, VS-5RS

Tires

  • APEX Staff Pick: Front 275/35-18 & Rear 305/35-18
    • R-compound - Nitto NT01 (100 TW), Toyo R888R
  • Wider Alternative: Front 275/35-18 & Rear 315/30-18
    • 3mm rear spacers recommended
    • Extreme Performance Summer: Falken RT660 (200 TW), BFG Rival S (200 TW), Nankang CR-1 (200 TW), Yokohama A052 (200 TW)
    • R-compound: Nitto NT01 (100 TW), Toyo R888R (100 TW), Nankang AR-1 (100 TW)
    • Semi Slicks:  Hoosier R7 (40 TW), Hoosier A7 (40 TW)

Additional Resources

Alignment Notes

The following alignment notes / settings have been determined:

Suspension Setup Front Camber Rear Camber
OEM // Factory Struts

Approx. -1.25º to -1.75º

 Approx. -1.6º to -2.0º
Factory Struts with Lowering Springs

Approx. -2.1º to -2.2º

 Approx. -1.6º to -2.2º

Factory Struts with HKS HAS kit with Vorshlag camber plates

 Approx. -2.5º Approx. -1.9º to -2.2º

Factory Struts with Front SPL LCA & Caster Bushings

 Approx. -3.1º Approx. -1.6º to -2.0º



Brake Clearance Information

In the engineering phase of wheel development we 3D scan factory brakes and review 2D aftermarket brake templates in order to optimize our barrel profiles and spoke curvatures. As a result, our wheels offer massive brake clearance so you can run the smallest possible wheel diameter. The following brakes have been tested and confirmed to clear our wheels.



SM-10

18x10 ET30

SM-10

18x11 ET40

SM-10

19x9.5 ET25

SM-10

19x11 ET40
OEM Brembo Brakes Clears Clears Clears Clears
Brembo GT/GT-S/GT-R 1N1.9067A
FRONT 6 Piston 380x34mm		 Clears Clears Clears Clears
Brembo GT
1T1.9020A
FRONT 6 Piston 380x34mm		 Does not clear (Barrel) Does not clear (Barrel) Clears Clears

Brembo GT/GT-S/GT-R
2P1.9064A
REAR 4 Piston 380x28mm

 Does not clear (Barrel) Does not clear (Barrel) Clears Clears

Brembo GT
2S1.9020A
REAR 4 Piston 380x28mm

 Clears Clears Clears Clears
AP Essex FRONT Street 9668 6pot 380x36mm Clears Clears Clears Clears
AP Essex FRONT CP9660 6 Piston 372x34mm Clears Clears Clears Clears

AP Essex FRONT CP9668 6 Piston 372x32mm

 Clears Clears Clears Clears

AP Essex REAR CP9450 4 Piston 365x30mm

 Clears Clears Clears Clears

R1Concepts FRONT 8 Piston 380x34mm

 Clears Clears Clears Clears



Should I Dial In Negative Camber and How Much Is Right for Me?

Whether you are a casual weekend track warrior that still enjoys your car on the street, or a hardcore racer competing for a spot on the podium, negative camber is a vital part of chassis setup that has many benefits. Not only will adding negative camber create more room for wider wheel and tire configurations (when dialed in through the top hat / camber plate), it more importantly improves handling, turn-in and tire longevity. Learn more in our blog article The Positives of Negative Camber.
