2023-Current G87 M2

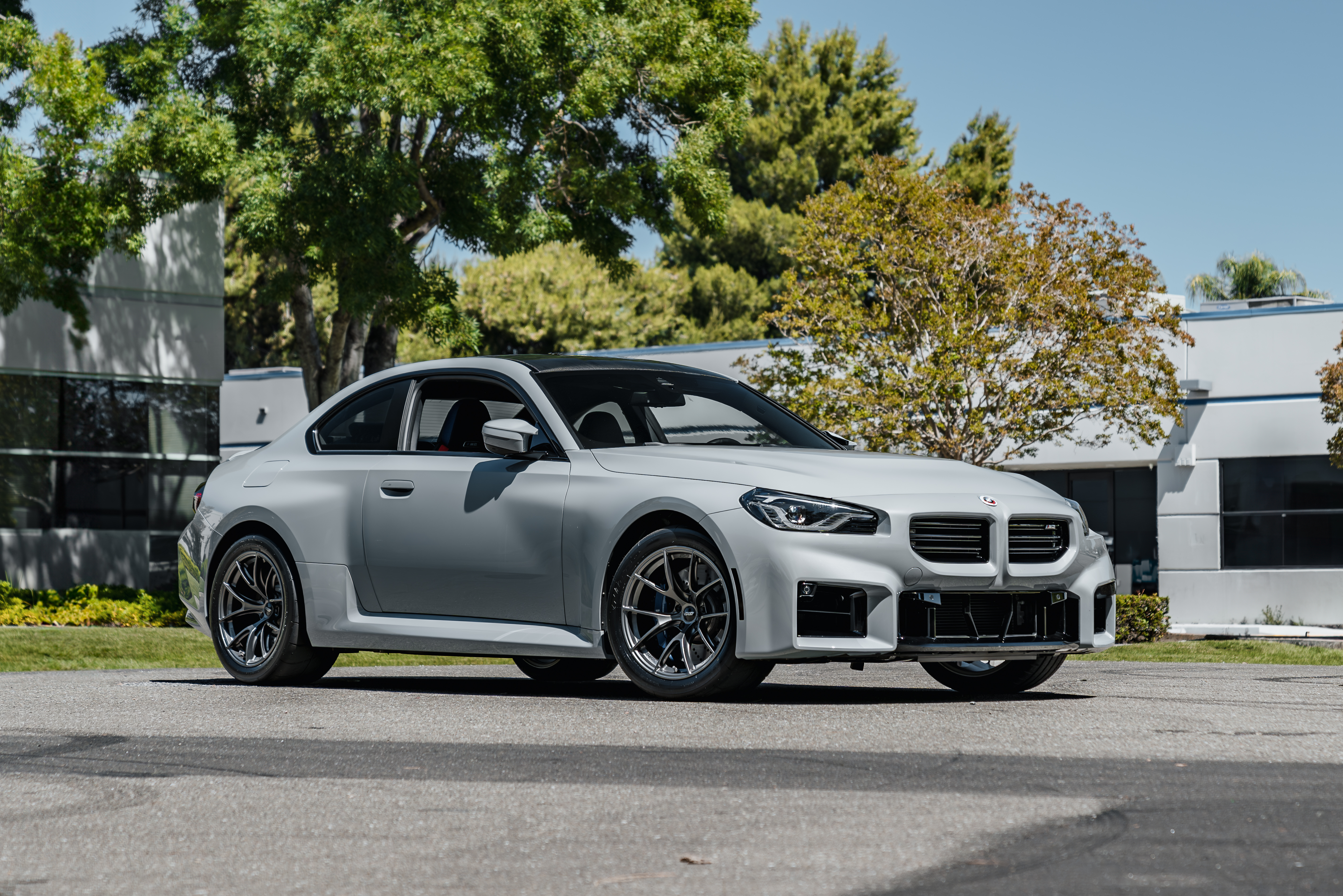

VS-5RS 19x10" ET12 - 275/35-19 F&R. PC: @jaedworks x @basicperformance_korea
Vehicle Covered in this Guide
2023-Current BMW G87 M2
Brake Clearance Information
In the engineering phase of wheel development we 3D scan factory brakes and review 2D aftermarket brake templates in order to optimize our barrel profiles and spoke curvatures. As a result, our wheels offer massive brake clearance so you can run the smallest possible wheel diameter.
Click Here to view our G8X master brake clearance guide
Forged Designs | Flow Formed Designs | |

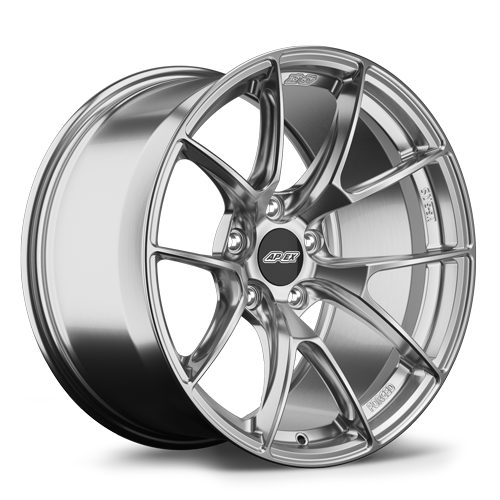

VS-5RS Order Here |
SM-10RS Order Here |
SM-10 Order Here |
Bolt Pattern | Center Bore | Lug Seat | Thread Pitch |
5x112mm | 66.6mm | 60º Conical | M14x1.25mm |
OEM+
Easy upgrades for street-driven cars

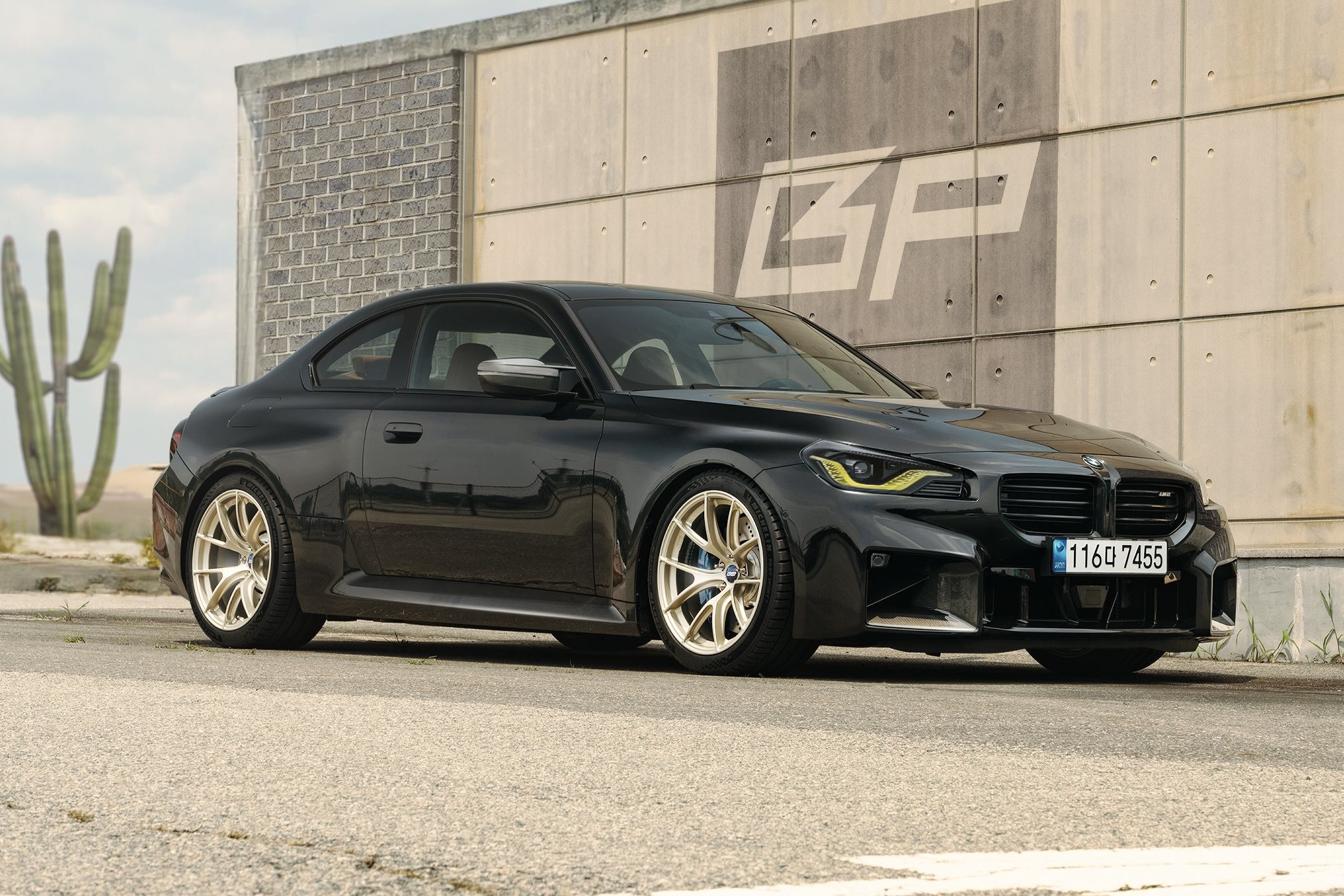

VS-5RS 19x10" ET12 w/ 285/35-19 F. // 20x11" ET18 w/ 305/30-20 R.
These bolt-on wheel fitments are ideal for enthusiasts enjoying their car day-to-day on the street, and they are typically paired with all-season or performance-oriented summer tires. These wheel and tire configurations will improve the appearance and performance of the car without requiring modifications or adjustments to the factory alignment. Just bolt-on and enjoy!
While these wheel fitments can be used for track days and AutoX, performance will be left on the table. Drivers that prioritize performance should review our Performance Street & Track and/or Hardcore Track & Race sections below.
Square Configurations
Recommended for enthusiasts that want to mitigate understeer and rotate tires front & rear for extended life. Square configurations may compromise rear-end grip when compared to staggered configurations.
Wheels
- Front & Rear: 19x10" ET12
- Available in: VS-5RS
Tires
- APEX Staff Pick: Front & Rear 275/35-19
- Direct Fit
- All Season: Michelin Pilot Sport AS4 (540TW), Continental Extremecontact DWS 06 + (560TW)
- Ultra-High Performance Summer: Firestone Firehawk Indy 500 (340TW), Falken Azenis FK510 (300TW), Sumitomo HTR Z5 (320TW)
- Max Performance Summer: Michelin Pilot Sport 4S (300TW), Yokohama Advan Apex V601 (280TW), Continental Extremecontact Sport (340TW), Bridgestone S-04 PP (280TW), Hankook V12 Evo2 (320TW), Kumho Ecsta PS91 (260TW)
- Extreme Performance Summer: Goodyear Eagle F1 Supercar 3 (220TW)
- Direct Fit
- Wider Alternative: Front & Rear 285/35-19
- Some front rubbing can occur with tires that run wide against the inner fender liner at full steering lock.
- All Season: Michelin Pilot Sport AS4 (540TW), Continental Extremecontact DWS 06 + (560TW)
- Ultra-High Performance Summer: Firestone Firehawk Indy 500 (340TW), Falken Azenis FK510 (300TW), BFGoodrich G-Force Sport Comp-2 (340TW)
- Max Performance Summer: Michelin Pilot Sport 4S (300TW), Yokohama Advan Apex V601 (280TW), Continental Extremecontact Sport (340TW), Hankook V12 Evo2 (320TW)
- Extreme Performance Summer: Goodyear Eagle F1 Supercar 3 (220TW)
- Some front rubbing can occur with tires that run wide against the inner fender liner at full steering lock.
Wheels
- Front & Rear: 20x10" ET8
- Available in: VS-5RS
Tires
- APEX Staff Pick: Front & Rear 275/30-20
- Direct Fit
- All Season: Michelin Pilot Sport AS4 (540TW), Continental Extremecontact DWS 06 + (560TW)
- Ultra-High Performance Summer: Falken Azenis FK510 (300TW)
- Max Performance Summer: Michelin Pilot Sport 4S (300TW), Yokohama Advan Apex V601 (280TW), Continental ExtremeContact Sport (340TW), Hankook V12 Evo2 (320TW)
- Extreme Performance Summer: No options currently available
- Direct Fit
- Wider Alternative: Front & Rear 285/30-20
- Some front rubbing can occur with tires that run wide against the inner fender liner at full steering lock.
- All Season: Michelin Pilot Sport AS4 (540TW), Continental Extremecontact DWS 06 + (560TW)
- Ultra-High Performance Summer:Firestone Firehawk Indy 500 (340TW), Falken Azenis FK510 (300TW), Sumitomo HTR Z5 (320TW)
- Max Performance Summer:Michelin Pilot Sport 4S (300TW),Continental Extremecontact Sport (340TW), Bridgestone Potenza Sport (300TW), Yokohama Advan Apex V601 (280TW), Continental Extremecontact Sport (340TW), Hankook V12 Evo2 (320TW)
- Extreme Performance Summer: Michelin Pilot Sport Cup 2 Connect (240TW), Goodyear Supercar 3 (220TW)
- Some front rubbing can occur with tires that run wide against the inner fender liner at full steering lock.
Staggered Configurations
Recommended for enthusiasts that prioritize rear end grip/traction. Wheels and tires cannot be rotated front to rear and large staggers may induce understeer.
Wheels
- Front: 19x9.5" ET25 // Rear: 19x10.5” ET18
- Available in: VS-5RS
- 5mm spacers recommended - matches factory front wheel offset with spacers installed.
- SCCA street class legal setup
- Available in: VS-5RS
Tires
- APEX Staff Pick: Front: 275/35-19 // Rear: 285/35-19
- All Season: Continental Extremecontact Dws 06 Plus (560TW), Michelin Pilot Sport All Season 4 (540TW), Yokohama Advan Sport A/S+ (440TW), Goodyear Eagle Exhilarate (500TW)
- Ultra-High Performance Summer: Firestone Firehawk Indy 500 (340TW), Falken Azenis FK510 (300TW), Toyo Proxes Sport (240TW)
- Max Performance Summer: Michelin Pilot Sport 4s (300TW), Continental Extremecontact Sport 02 (340TW), Bridgestone Potenza Sport (300TW), Yokohama Advan Apex V601 (280TW), Hankook Ventus V12 EVO2 (320TW)
- Extreme Performance Summer: Toyo Proxes R888R (100TW)
Wheels
- Front: 19x10" ET12 // Rear: 20x11” ET18
- Available in: VS-5RS
- Available in: VS-5RS
Tires
- APEX Staff Pick: Front: 285/35-19 // Rear: 305/30-20
- Some front rubbing can occur with tires that run wide against the inner fender liner at full steering lock.
- All Season: Continental ExtremeContact DWS 06 + (560TW)
- Ultra-High Performance Summer: Falken Azenis FK510 (300TW), Firestone Firehawk Indy 500 (340TW)
- Max Performance Summer: Michelin Pilot Sport 4S (300TW), Continental Extremecontact Sport (340TW), Bridgestone Potenza Sport (300TW), Hankook V12 Evo2 (320TW), Kumho Ecsta PS91 (260TW), Pirelli P Zero (220TW)
- Extreme Performance Summer: Michelin Pilot Sport Cup 2 Connect (240TW)
- Narrower Alternative: Front: 285/35-19 // Rear: 295/30-20
- Some front rubbing can occur with tires that run wide against the inner fender liner at full steering lock.
- All Season: Continental ExtremeContact DWS 06 + (560TW), Michelin Pilot Sport AS4 (540TW)
- Ultra-High Performance Summer: Firestone Firehawk Indy 500 (340TW), Falken Azenis FK510 (300TW)
- Max Performance Summer: Michelin Pilot Sport 4S (300TW), Continental Extremecontact Sport (340TW), Bridgestone Potenza Sport (300TW), Kumho Ecsta PS91 (260TW), Pirelli P Zero (220TW)
- Extreme Performance Summer: Goodyear Eagle F1 Supercar 3 (220TW)
- OE Alternative: Front: 275/35-19 // Rear: 285/30-20
- OEM tire sizes
- Some front rubbing can occur with tires that run wide against the inner fender liner at full steering lock.
- All Season: Continental Extremecontact DWS 06 + (560TW), Michelin Pilot Sport AS4 (540TW)
- Ultra-High Performance Summer: Firestone Firehawk Indy 500 (340TW), Falken Azenis FK510 (300TW)
- Max Performance Summer: Michelin Pilot Sport 4S (300TW, * rated available), Continental Extremecontact Sport 02(340TW), Yokohama Advan Apex V601 (280TW), Pirelli P Zero (220TW)
- Extreme Performance Summer: Michelin Pilot Sport Cup 2 Connect (240) (240TW), Yokohama Advan Neova AD09 (200TW)
Wheels
- Front: 20x10" ET8 // Rear: 20x11” ET18
- Available in: VS-5RS
Tires
- APEX Staff Pick: Front: 285/30-20 // Rear: 305/30-20
- Some front rubbing can occur with tires that run wide against the inner fender liner at full steering lock.
- All Season: Continental ExtremeContact DWS 06 + (560TW)
- Ultra-High Performance Summer: Toyo Proxes Sport (240TW)
- Max Performance Summer: Michelin Pilot Sport 4S (300TW), Continental Extremecontact Sport (340TW), Bridgestone Potenza Sport (300TW), Yokohama Advan Apex V601 (280TW), Pirelli P Zero (220TW)
- Extreme Performance Summer: Goodyear Eagle F1 Supercar 3 (220TW), Michelin Pilot Sport Cup 2 Connect (240TW)
- R Compound: Goodyear Eagle F1 Supercar 3R (100TW)
- Narrower Alternative: Front: 285/30-20 // Rear: 295/30-20
- Some front rubbing can occur with tires that run wide against the inner fender liner at full steering lock.
- All Season: Continental Extremecontact DWS 06 + (560TW), Michelin Pilot Sport AS4 (540TW)
- Ultra-High Performance Summer: Firestone Firehawk Indy 500 (340TW), Falken Azenis FK510 (300TW)
- Max Performance Summer: Michelin Pilot Sport 4S (300TW), Continental Extremecontact Sport (340TW), Bridgestone Potenza Sport (300TW), Yokohama Advan Apex V601 (280TW), Pirelli P Zero (220TW)
- Extreme Performance Summer: Michelin Pilot Sport Cup 2 (180TW)
Performance Street & Track Fitments
Fitments for enhanced performance
VS-5RS 18x10.5 ET18 w/ 305/35-18 F&R.
Whether you enjoy spirited street driving or you are a weekend track warrior chasing lap times, these wheel & tire configurations are ideal for enthusiasts looking for a more dramatic improvement in performance and they are typically paired with performance-oriented summer tires or track-oriented R-compounds.
The suspension type,
Square Configurations
Recommended for enthusiasts that want to mitigate understeer and rotate tires front & rear for extended life. Square configurations may compromise rear-end grip when compared to staggered configurations.
Wheels
- Front & Rear: 18x10.5" ET18
- Available in: VS-5RS
- 3-5mm front spacer recommended.
- Wider front spacers required for aftermarket suspension that limits inner clearance.
- Additional negative camber via adjustable camber plates is recommended.
Tires
- APEX Staff Pick: Front & Rear 295/35-18
- Some rubbing up front at full lock against fender liners & cooling duct outlets is possible depending on tire.
- Ultra-High Performance Summer: Toyo Proxes Sport (240TW)
- Max Performance Summer: Continental ExtremeContact Sport 02 (340TW), Michelin Pilot Super Sport (300TW), Pirelli P Zero Rosso (160TW)
- Extreme Performance Summer: Bridgestone Potenza RE-71RS (200TW), Nankang Sportnex CR-S (200TW), Yokohama Advan A052 (200TW), Yokohama Advan Neova AD09 (200TW)
- R-Compound: N/A
- Some rubbing up front at full lock against fender liners & cooling duct outlets is possible depending on tire.
- Wider Alternative: Front & Rear: 305/35-18
- 5mm spacers or wider are recommended.
- Significant rubbing up front at full lock against front fender liners & cooling duct outlets. Aftermarket or trimmed liners are recommended.
- Ultra-High Performance Summer: N/A
- Max Performance Summer: N/A
- Extreme Performance Summer: N/A
- R-Compound: Nitto NT01 (100TW), Toyo R888R (100TW)
- Drag: Mickey Thompson Street ET S/S, Nitto NT555R2 (100TW)
- Slick/Semi-Slick: Toyo RR (40TW)
Wheels
- Front & Rear: 19x10" ET12
- Available in: VS-5RS
Tires
- APEX Staff Pick: Front & Rear 285/35-19
- Some front rubbing can occur with tires that run wide against the inner fender liner at full steering lock.
- Ultra-High Performance Summer: Firestone Firehawk Indy 500 (340TW), Falken Azenis FK510 (300TW), BFGoodrich G-Force Sport Comp-2 (340TW)
- Max Performance Summer: Michelin Pilot Sport 4S (300TW), Yokohama Advan Apex V601 (280TW), Continental Extremecontact Sport (340TW), Hankook V12 Evo2 (320TW)
- Extreme Performance Summer: Goodyear Eagle F1 Supercar 3 (220TW) Bridgestone Potenza RE-71RS (200TW)
- R-Compound: Goodyear Eagle F1 Supercar 3R (100TW), Toyo Proxes R888R (100TW), Nitto NT01 (100TW)
- Some front rubbing can occur with tires that run wide against the inner fender liner at full steering lock.
- Narrower Alternative: Front & Rear 275/35-19
- Direct Fit
- Ultra-High Performance Summer: Firestone Firehawk Indy 500 (340TW), Falken Azenis FK510 (300TW), Sumitomo HTR Z5 (320TW)
- Max Performance Summer: Michelin Pilot Sport 4S (300TW), Yokohama Advan Apex V601 (280TW), Continental ExtremeContact Sport (340TW), Bridgestone S-04 PP (280TW), Hankook V12 Evo2 (320TW), Kumho Ecsta PS91 (260TW)
- Extreme Performance Summer: Goodyear Eagle F1 Supercar 3 (220TW)
- R-Compound: Michelin Pilot Sport Cup 2 (180TW), Toyo Proxes R888R (100TW), Nankang AR-1 (100TW)
- Direct Fit
Wheels
- Front & Rear: 19x10.5" ET18
- Available in: VS-5RS
- Aggressive track setup compatible with CCBs
- 3-5mm front spacer recommended.
- Wider front spacers required for aftermarket suspension that limits inner clearance.
- Additional negative camber via adjustable camber plates is recommended.
Tires
- APEX Staff Pick: Front & Rear: 295/30-19
- Some rubbing up front at full lock against fender liners & cooling duct outlets is possible depending on tire.
- Ultra-High Performance Summer: Falken Azenis FK510 (300TW), Sumitomo HTR Z5 (320TW)
- Max Performance Summer: Michelin Pilot Sport 4S (300TW), Bridgestone S-04 PP (280TW), Hankook V12 Evo2 (320TW), Kumho Ecsta PS91 (260TW)
- Extreme Performance Summer: Yokohama Advan Neova AD08 R (200TW), Michelin Pilot Sport Cup 2 Connect (240TW), Goodyear Eagle F1 Supercar 3 (220TW)
- R-Compound: Pirelli P Zero Trofeo R (60TW), Toyo Proxes R888R (100TW)
- Slick/Semi-Slick: Hoosier A7 (40TW), Hoosier R7 (40TW), Toyo Proxes RR (40TW)
- Wider Alternative: Front & Rear: 305/30-19
- 5mm spacers or wider are recommended.
- Significant rubbing up front at full lock against front fender liners & cooling duct outlets. Aftermarket or trimmed liners are recommended.
- Ultra-High Performance Summer: Falken Azenis FK510 (300TW), Sumitomo HTR Z5 (320TW)
- Max Performance Summer: Michelin Pilot Sport 4S (300TW), Continental ExtremeContact Sport (340TW), Bridgestone S-04 PP (280TW), Hankook V12 EVO2 (320TW), Kumho Ecsta PS91 (260TW)
- Extreme Performance Summer: Yokohama Advan Neova AD08 R (200TW), Falken Azenis RT660 (200TW), Goodyear Eagle F1 Supercar 3 (220TW), BFGoodrich G-Force Rival S 1.5 (200TW)
- R-Compound: Michelin Pilot Sport Cup 2 (180TW), Pirelli P Zero Trofeo R (60TW), Goodyear Eagle F1 Supercar 3R (100TW), Toyo Proxes R888R (100TW), Nitto NT01 (100TW), Nankang AR-1 (100TW)
- Slick/Semi-Slick: N/A
Staggered Configurations
Recommended for enthusiasts that prioritize rear-end grip/traction. Wheels and tires cannot be rotated front to rear and large staggers may induce understeer.
Wheels
- Front: 19x10" ET12 // Rear: 19x11” ET22
- Available in: VS-5RS
Tires
- APEX Staff Pick: Front: 285/30-19 // Rear: 305/30-19
- Direct Fit
- A shorter tire sidewall option with improved tire model availability
- Ultra-High Performance Summer:Falken Azenis FK510 (300TW), Sumitomo HTR Z5 (320TW)
- Max Performance Summer: Michelin Pilot Sport 4S (300TW), Continental ExtremeContact Sport (340TW), Bridgestone S-04 PP (280TW), Hankook V12 Evo2 (320TW), Kumho Ecsta PS91 (260TW), Pirelli P Zero (220TW)
- Extreme Performance Summer: Goodyear Eagle F1 Supercar 3 (220TW)
- R-Compound: No options currently available
- Taller Alternative: Front: 285/35-19 // Rear: 295/35-19
- Some front rubbing can occur with tires that run wide against the inner fender liner at full steering lock.
- Ultra-High Performance Summer: No options currently available
- Max Performance Summer: Michelin Pilot Sport 4S (300TW), Continental ExtremeContact Sport (340TW), Pirelli P Zero (220TW)
- Extreme Performance Summer:No options currently available
- R-Compound: No options currently available
Wheels
- Front: 19x10" ET12 // Rear: 20x11” ET18
- Available in: VS-5RS
- Available in: VS-5RS
Tires
- APEX Staff Pick: Front: 285/35-19 // Rear: 305/30-20
- Some front rubbing can occur with tires that run wide against the inner fender liner at full steering lock.
- Ultra-High Performance Summer: No options currently available
- Max Performance Summer: Michelin Pilot Sport 4S (300TW), Continental ExtremeContact Sport (340TW), Bridgestone Potenza Sport (300TW), Hankook V12 Evo2 (320TW), Kumho Ecsta PS91 (260TW), Pirelli P Zero (220TW)
- Extreme Performance Summer: Michelin Pilot Sport Cup 2 Connect (240TW)
- R-Compound: No options currently available
- Narrower Alternative: Front: 285/35-19 // Rear: 295/30-20
- Some front rubbing can occur with tires that run wide against the inner fender liner at full steering lock.
- Ultra-High Performance Summer: Firestone Firehawk Indy 500 (340TW), Falken Azenis FK510 (300TW)
- Max Performance Summer: Michelin Pilot Sport 4S (300TW), Continental ExtremeContact Sport (340TW), Bridgestone Potenza Sport (300TW), Kumho Ecsta PS91 (260TW), Pirelli P Zero (220TW)
- Extreme Performance Summer: Goodyear Eagle F1 Supercar 3 (220TW)

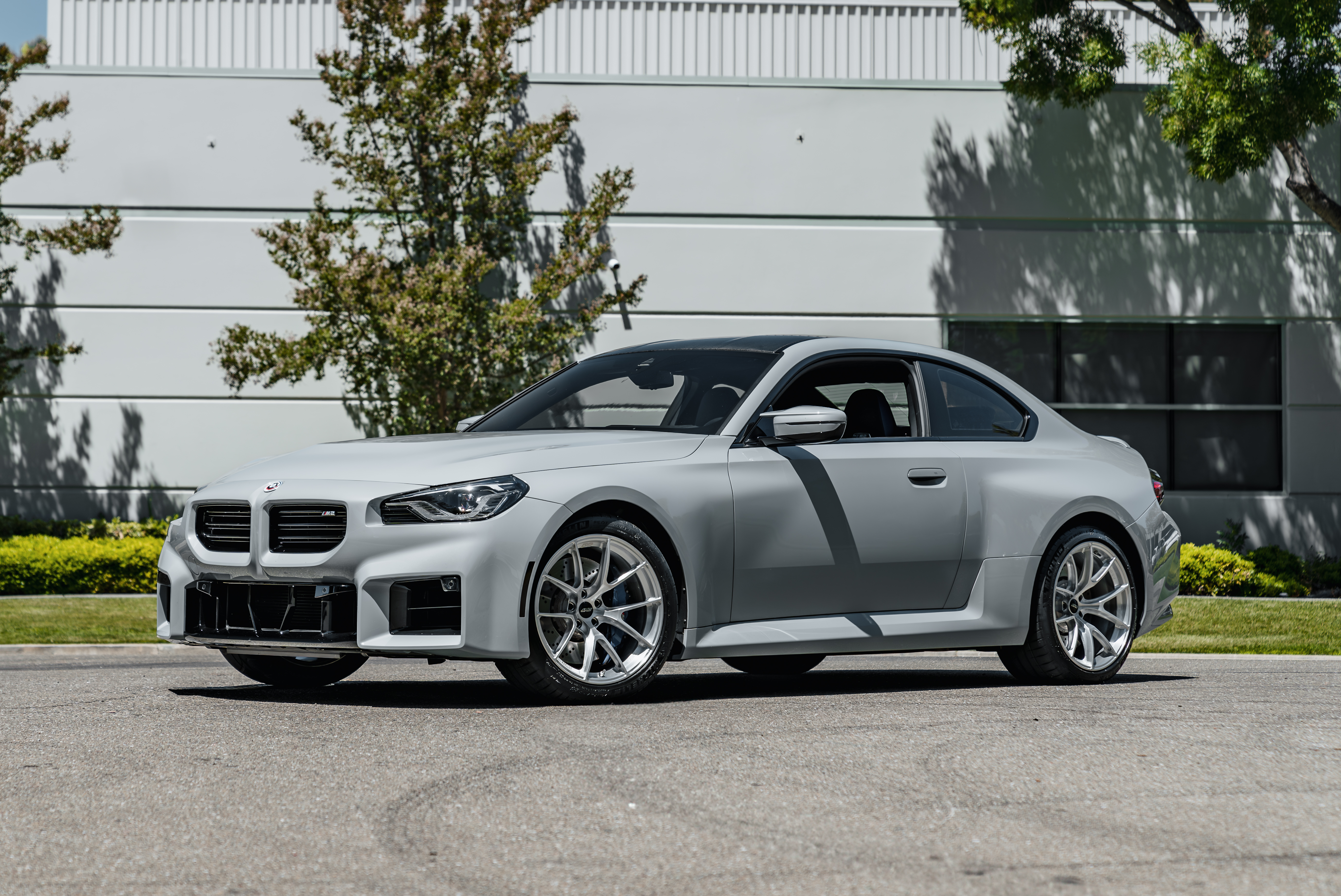

Wheels
- Front & Rear: 19x9.5" ET25
- Available in: SM-10, SM-10RS, VS-5RS
- 5mm front & 15mm rear spacers recommended for aesthetics (not required for fitment)
Tires
- APEX Staff Pick: Front & Rear: 265/35-19
- Direct Fit
- Performance Winter: Michelin Pilot Alpin PA4, Bridgestone Blizzak LM32, Continental
Contiwintercontact TS830 P, Pirelli Winter 270 Sottozero Series II
- Wider Alternative: Front & Rear: 275/35-19
- Direct Fit
- Performance Winter: Pirelli Pzero Winter run flat (Star BMW spec), Nokian Hakkapeliitta R3, Vredestine Wintertrac Pro
Wheels
- Front & Rear: 19x10" ET12
- Available in: VS-5RS
Tires
- APEX Staff Pick: Front & Rear: 275/35-19
- Direct Fit
- Performance Winter: Pirelli Pzero Winter run flat (Star BMW spec), Nokian Hakkapeliitta R3, Vredestine Wintertrac Pro
Additional Resources
Should I Dial in Negative Camber, and How Much is Right for me?
Whether you are a casual weekend track warrior that still enjoys your car on the street, or a hard core racer competing for a spot on the podium, negative camber is a vital part of chassis setup that has many benefits. Not only will adding negative camber create more room for wider wheel and tire configurations, it more importantly improves handling, turn-in and tire longevity. Learn more in our blog article, The Positives of Negative Camber.
Still have questions?
Fill out our Fitment Recommendation form
Call us: 925-245-0773
Email us: support@apexraceparts.com
