S550 Mustang Wheel & Tire Fitment Guide

  • Updated

2015-present S550 Mustang Wheel and Tire Fitment Guide

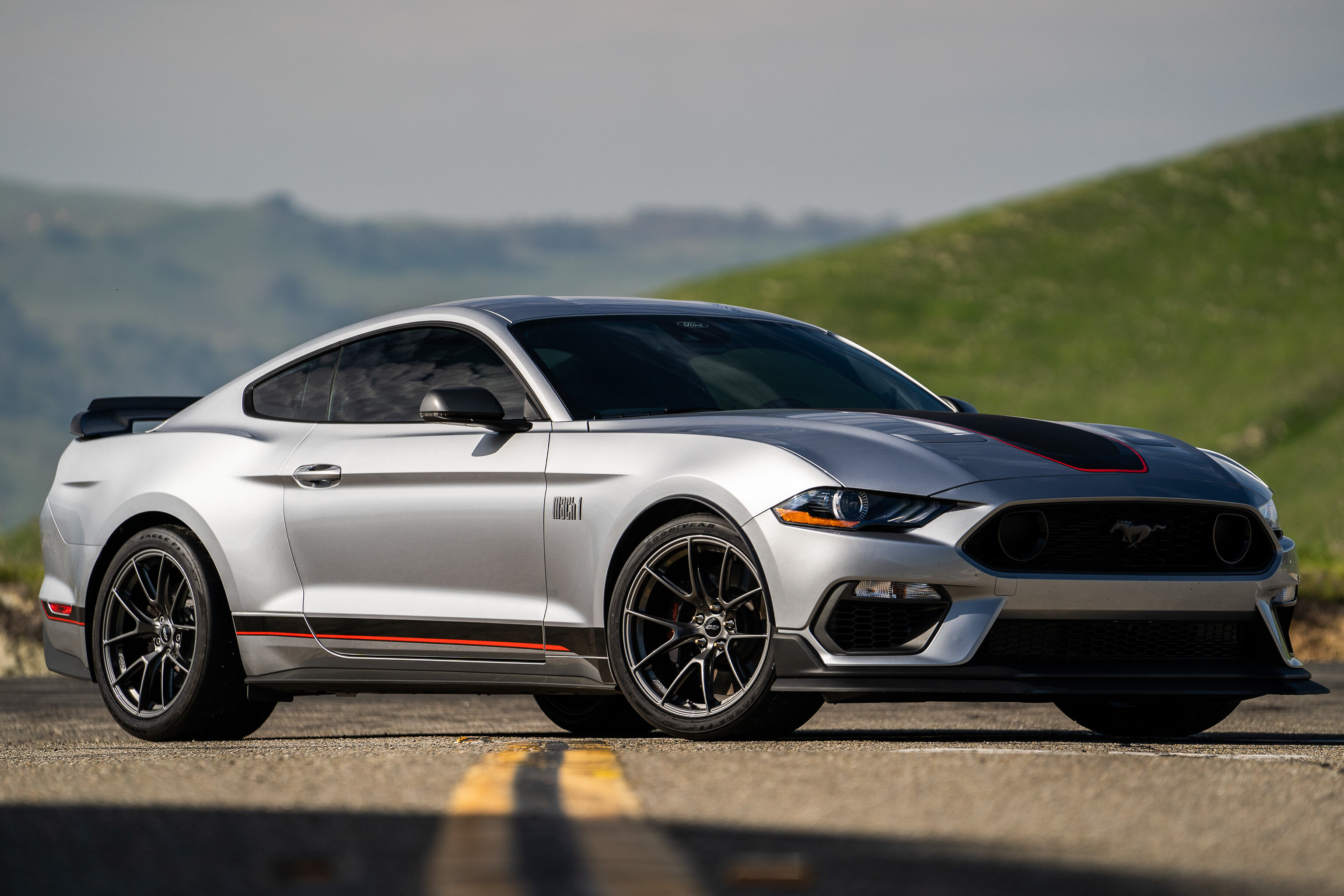

Vehicle Covered in this Guide
2015-present Mustang

Chassis Introduction
For 2015, the Mustang underwent its first major overhaul in over ten years. Gone are the traditional old school looks and character, replaced by the most refined and modernized Mustang yet. Dubbed the S550 chassis, it is new from the ground up and shares very little with the previous generation. The most notable change was the introduction of the independent rear suspension, making it the first time a mass produced Mustang left the factory with it. Despite the new body work and axles, the S550 shares the same wheel specs as the S197.





Available Wheel Designs (click images to enlarge)

Forged Designs

 Flow Formed Designs

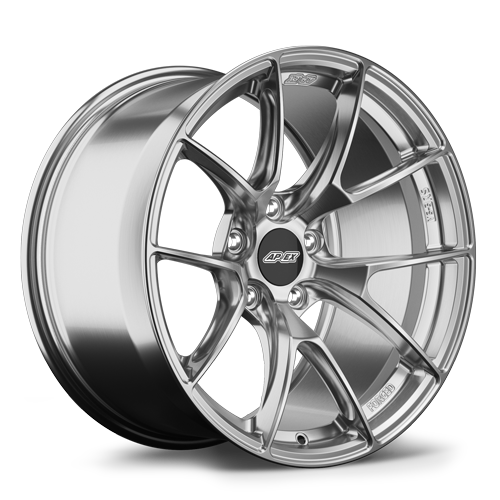

VS-5RS


Order Here

EC-7RS


Order Here

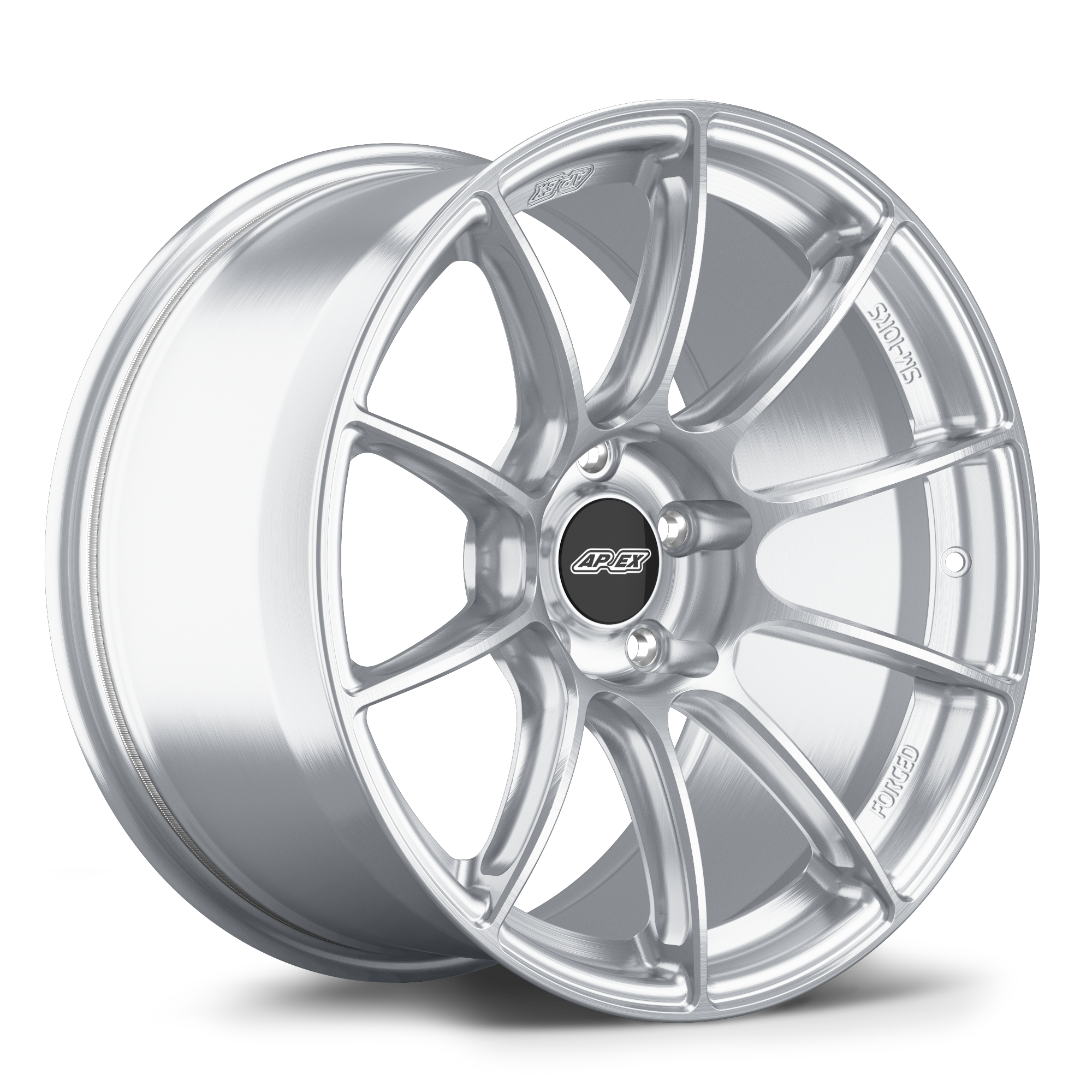

SM-10RS


Order Here

SM-10


Order Here

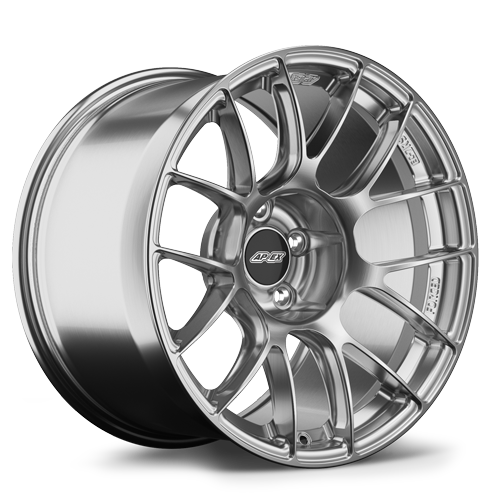

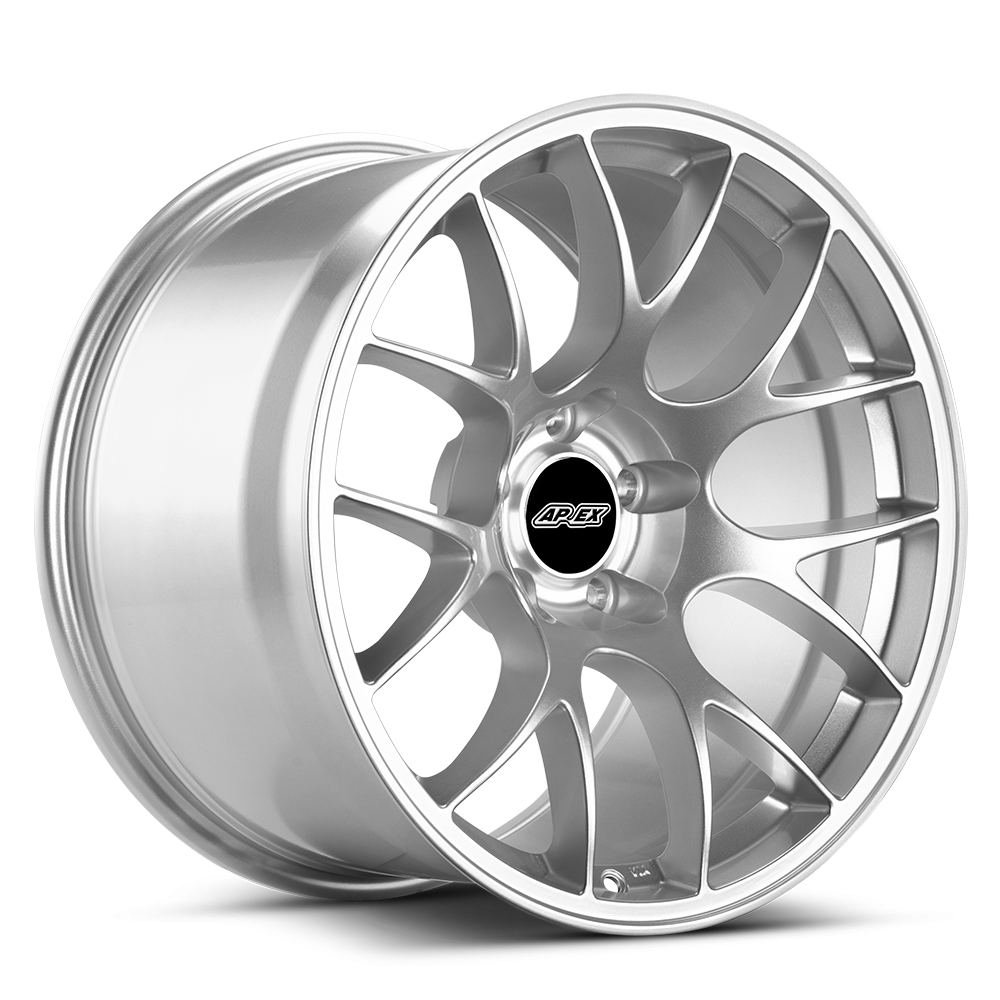

EC-7


Order Here



Bolt Pattern Thread Pitch Center Bore
5x114.3mm M14x1.5mm 70.5mm

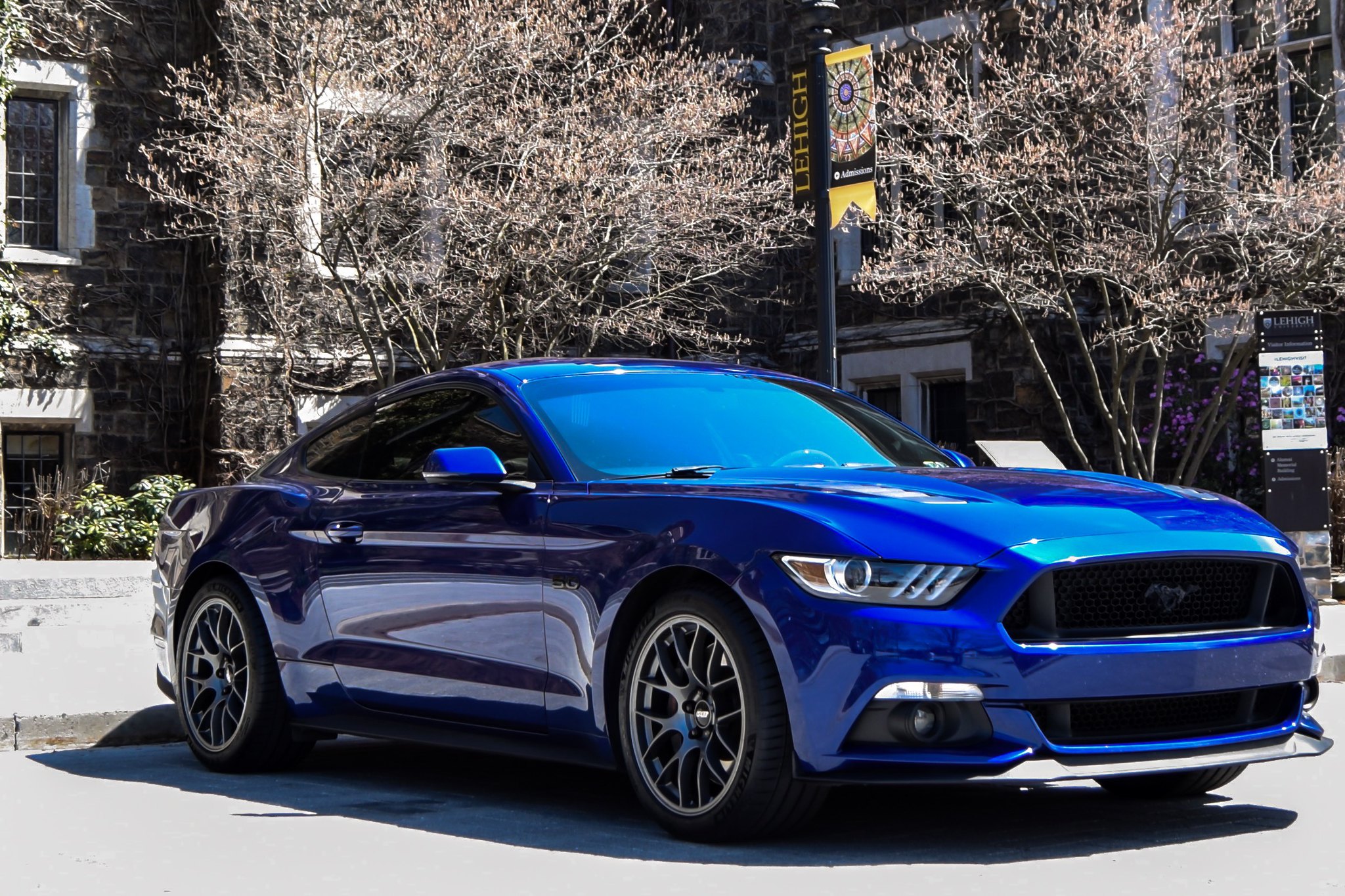

OEM+

Easy upgrades for street-driven cars



These bolt-on wheel fitments are ideal for enthusiasts enjoying their car day-to-day on the street, and they are typically paired with all-season or performance oriented summer tires. These wheel and tire configurations will improve the appearance and performance of the car without requiring modifications to the factory suspension or alignment. Just bolt on and enjoy!



Square Configurations

Recommended for enthusiasts that want to mitigate understeer, improve turn-in, and rotate tires front & rear for extended life.

Wheels

  • Front & Rear: 18x9.5" ET35
    • Available in EC-7

Tires

  • APEX Staff Pick: Front & Rear: 275/40-18
    • Direct Fit
    • Performance All-Season: Michelin Pilot Sport AS4 (540 TW), Yokohama Advan Sport A/S+ (440 TW), Continental DWS06 Plus (560 TW)
    • Performance Summer: Firestone Firehawk Indy 500 (340 TW), Falken Azenis FK510 (300 TW), Yokohama Advan Apex V601 (280 TW), Continental Extremecontact Sport (340 TW)
    • Extreme Performance Summer: Hankook Ventus RS-4 (200 TW), Goodyear Eagle F1 Supercar 3 (220 TW), Yokohama Advan A052 (200 TW)
  • Narrower Alternative: Front & Rear 255/45-18
    • Direct Fit
    • Performance All-Season: Continental DWS06 Plus (560 TW),Michelin Pilot Sport AS4 (540 TW)
    • Performance Summer: General GMax RS (360 TW), Firestone Firehawk Indy 500 (340 TW), Falken Azenis FK510 (300 TW), Yokohama Advan Apex V601 (280 TW), Continental Extremecontact Sport (340 TW), Michelin Pilot Sport 4S (300 TW)



Wheels

  • Front & Rear: 19x9" ET34
    • Available in: EC-7, SM-10

Tires

  • APEX Staff Pick: Front & Rear 255/40-19
    • Direct Fit
    • Performance All-Season: Continental DWS06 Plus (560 TW),Michelin Pilot Sport AS4 (540 TW)
    • Performance Summer: General GMax RS (360 TW), Firestone Firehawk Indy 500 (340 TW), Falken Azenis FK510 (300 TW), Yokohama Advan Apex V601 (280 TW), Continental Extremecontact Sport (340 TW), Michelin Pilot Sport 4S (300 TW)



Staggered Configurations

Maintains stock-like handling characteristics, tires can only be rotated left to right.

Wheels

  • Front: 19x9" ET34 // Rear: 19x10” ET40
    • Available in: EC-7, SM-10

Tires

  • APEX Staff Pick: Front 255/40-19 // Rear 285/35-19
    • Direct Fit
    • Performance All-Season: Yokohama Advan Sport A/S+ (440 TW), Continental DWS06 Plus (560 TW)
    • Performance Summer: General GMax RS (360 TW), Firestone Firehawk Indy 500 (340 TW), Falken Azenis FK510 (300 TW), Continental Extremecontact Sport (340 TW), Michelin Pilot Sport 4S (300 TW), Goodyear F1 Supercar 3 (220 TW)



Wheels

  • Front: 20x9.5" ET35 // Rear: 20x11” ET52
    • Available in: VS-5RS

Tires

  • APEX Staff Pick: Front 255/35-20 // Rear 305/30-20
    • Direct Fit
    • Performance All-Season: Continental DWS06 Plus (560 TW), Falken FK460 A/S (500 TW)
    • Performance Summer: Continental Extremecontact Sport 02 (340 TW), Michelin Pilot Sport 4S (300 TW), Bridgeston Potenza Sport (300 TW)

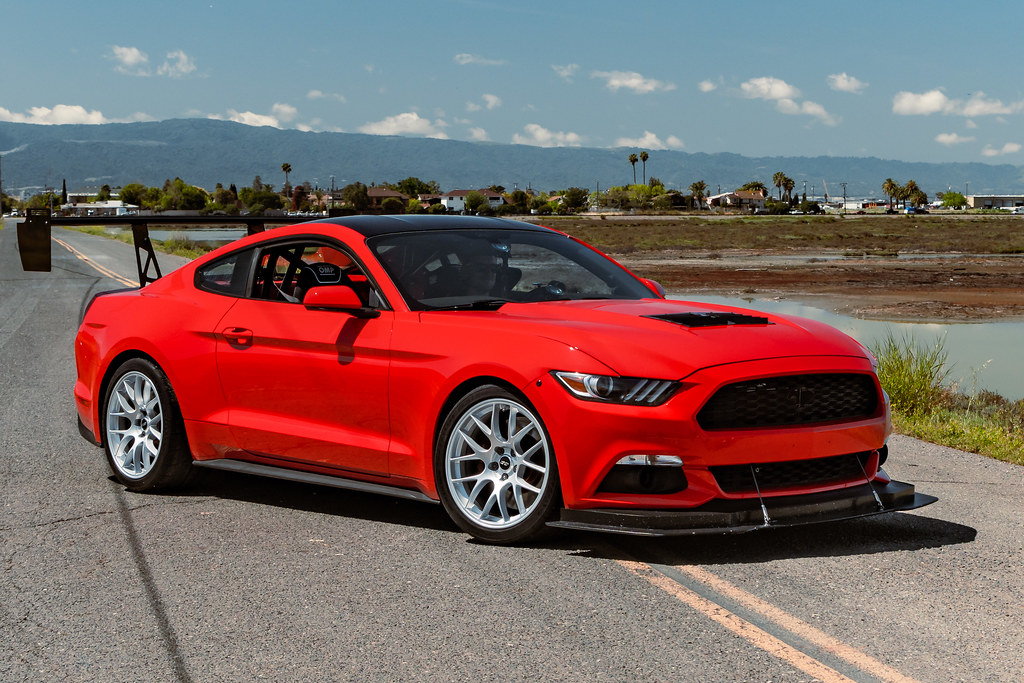

Performance Street & Track

Wider fitments for enhanced performance



Whether you enjoy spirited street driving or you're a weekend track warrior chasing lap times, these wheel & tire configurations are ideal for enthusiasts looking for a more dramatic improvement in performance. They are typically paired with performance oriented summer tires or track oriented R-compounds and this category includes both staggered and square configurations to best suit each individual drivers priorities, goals and preferences for their vehicle.

We've optimized the offset of our wheels to work well with the stock fenders, however, a wide variety of tire compounds can be used and some may require negative camber to fit properly. See fitment notes under each tire configuration below to see if modifications are required. If you plan to track your car, we highly recommended dialing in negative camber regardless of whether your wheel/tire fitment requires it for fender clearance. Negative camber is vital for extracting the most performance and longevity out of your tires, and without the proper amount the outer shoulders of your tires will wear out prematurely and running tire costs will dramatically increase.



Square Configurations

Recommended for enthusiasts that want to mitigate understeer, improve turn-in, and rotate tires front & rear for extended life.

Wheels

  • Front & Rear: 18x10" ET40
    • Available in EC-7, SM-10, VS-5RS, SM-10RS
    • 3mm front spacer required for VS-5RS & SM-10RS

Tires

  • APEX Staff Pick: Front & Rear: 275/40-18
    • Direct Fit
    • Performance Summer: Firestone Firehawk Indy 500 (340 TW), Falken Azenis FK510 (300 TW), Yokohama Advan Apex V601 (280 TW), Continental Extremecontact Sport (340 TW)
    • Extreme Performance Summer: Hankook Ventus RS-4 (200 TW), Goodyear Eagle F1 Supercar 3 (220 TW), Yokohama Advan A052 (200 TW)
    • R-Compound: Toyo Proxes R888R (100 TW), Nitto NT01 (100 TW)
  • Wider Alternative: Front & Rear 285/40-18
    • Direct Fit with most setups, 3-5mm spacer may be required with certain suspension/tire combos. You will have to test this once you get everything mounted up.
    • Performance Summer: Continental Extremecontact Sport (340 TW), Michelin Pilot Sport 4S (300 TW)
    • Extreme Performance Summer: No options currently available
    • R-Compound: No options currently available



Wheels

  • Front & Rear: 19x10" ET40
    • Available in: EC-7, SM-10, VS-5RS

Tires

  • APEX Staff Pick: Front & Rear 285/35-19
    • Direct Fit
    • Performance Summer: General GMax RS (360 TW), Firestone Firehawk Indy 500 (340 TW), Falken Azenis FK510 (300 TW), Yokohama Advan Apex V601 (280 TW), Continental Extremecontact Sport (340 TW), Michelin Pilot Sport 4S (300 TW)
    • Extreme Performance Summer: Goodyear Eagle F1 Supercar 3 (220 TW)
    • R-Compound: Goodyear Eagle F1 Supercar 3R (100 TW), Toyo Proxes R888R (100 TW), Nitto NT01 (100 TW)
  • Narrower Alternative: Front & Rear 275/35-19
    • Direct Fit
    • Performance Summer: General GMax RS (360 TW), Firestone Firehawk Indy 500 (340 TW), Falken Azenis FK510 (300 TW), Yokohama Advan Apex V601 (280 TW), Continental Extremecontact Sport (340 TW), Michelin Pilot Sport 4S (300 TW)
    • Extreme Performance Summer: Hankook Ventus RS-4 (200 TW), Falken RT660 (200 TW)
    • R-Compound: Michelin Pilot Sport Cup 2 (180 TW), Toyo Proxes R888R (100 TW), Nankang AR-1 (100 TW)
  •



Wheels

  • Front: 20x11" ET26 // Rear: 20x11” ET52
    • Available in: VS-5RS
    • Additional negative camber is required up front. We recommend at least -2.75*
    • No spacers are needed front or rear

Tires

  • APEX Staff Pick: Front & Rear 305/30-20
    • Performance Summer: General GMax RS (360 TW), Firestone Firehawk Indy 500 (340 TW), Falken Azenis FK510 (300 TW), Continental Extremecontact Sport (340 TW), Michelin Pilot Sport 4S (300 TW), Bridgestone Potenza Sport (300 TW)
    • Extreme Performance Summer: Goodyear Supercar 3 (220 TW), Michelin Pilot Sport Cup2 Connect (240 TW)
    • R-Compound: Goodyear Supercar 3R (100 TW), Michelin Pilot Sport Cup2 (180 TW), Michelin Pilot Sport Cup2 R (140 TW)



Staggered Configurations

Maintains stock-like handling characteristics, tires can only be rotated left to right.

Wheels

  • Front: 19x10" ET40 // Rear: 19x11” ET52
    • Available in: EC-7, SM-10, VS-5RS

Tires

  • APEX Staff Pick: Front 285/35-19 // Rear 305/30-19
    • Direct Fit
    • Performance Summer: General GMax RS (360 TW), Firestone Firehawk Indy 500 (340 TW), Falken Azenis FK510 (300 TW), Continental Extremecontact Sport (340 TW), Michelin Pilot Sport 4S (300 TW)
    • Extreme Performance Summer: Goodyear Eagle F1 Supercar 3 (220 TW)
    • R-Compound: Nitto NT01 (100 TW), Toyo R888R (100 TW)

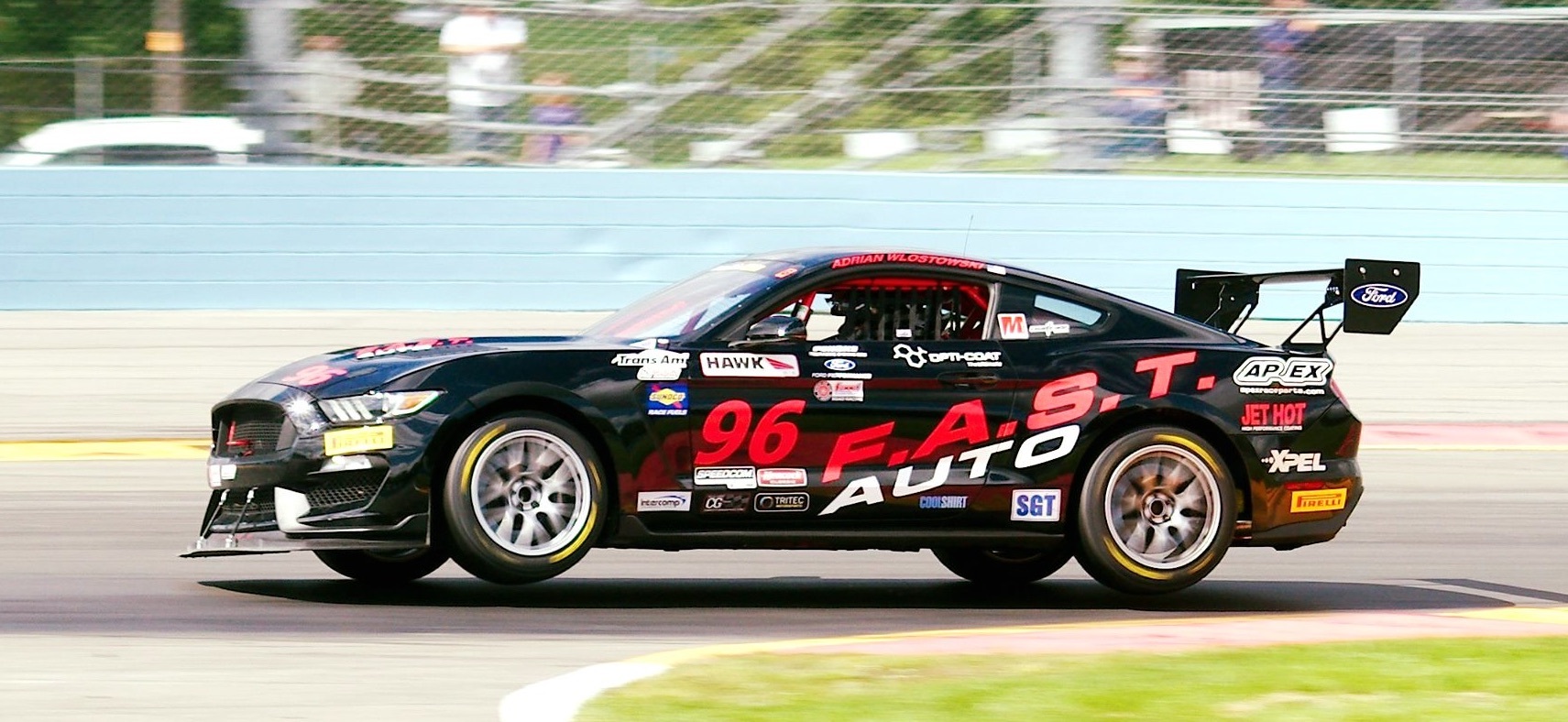

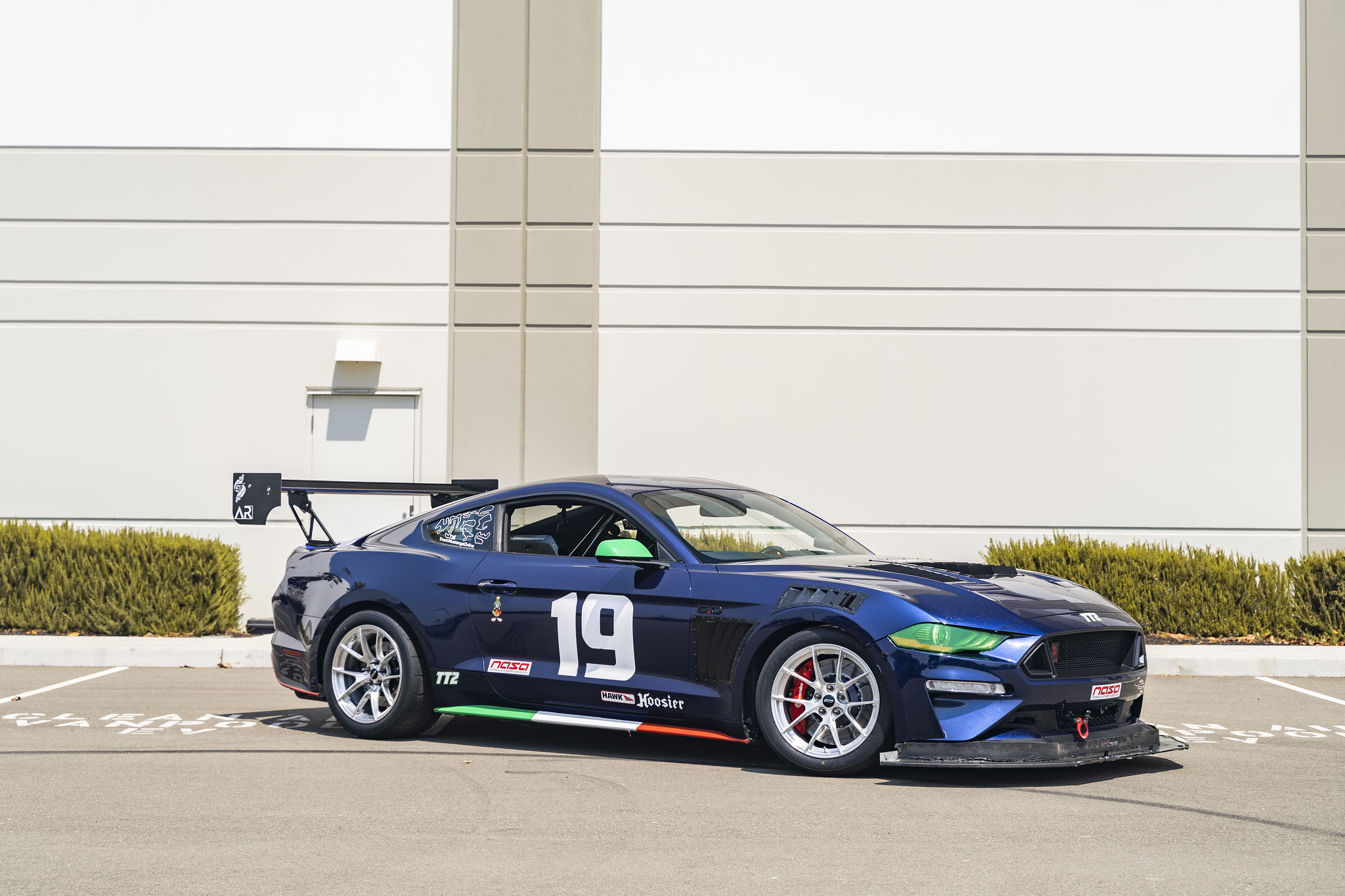

Hardcore Track & Race Fitments

All-out performance for fastest lap times


These wheel and tire configurations are best suited for hardcore track junkies and club racers that prioritize performance above all else.  With these wheels everything from extreme summer tires to full racing slicks are commonly used depending on your experience behind the wheel, class rules, etc.

Additional negative camber is strongly encouraged to maximize performance and tire longevity, and some of the more aggressive fitments will absolutely require it to prevent rubbing under suspension compression. Even with the appropriate amount of negative camber dialed in, some of the more extreme fitments can still scrub the liners under suspension compression and/or when turning the steering wheel to full lock. This is par for the course when pushing the limits of wheel and tire fitment. These fitments are not for someone who primarily will use this wheel setup on the street or in inclement weather.



Square Configurations

Recommended for enthusiasts that want to mitigate understeer, improve turn-in, and rotate tires front & rear for extended life.



Wheels

  • Front & Rear: 18x11" ET52
    • Available in: EC-7, SM-10, VS-5RS, EC-7RS, SM-10RS
    • Additional negative camber is required up front. We recommend at least -2.75*
    • 25mm spacers, extended wheel studs, and open lug nuts are required up front for strut clearance
    • No spacers are needed on the rear
    • Select coilovers with offset housings allow the use of a 20mm front spacer. The only known coilovers are JRi, JRZ, and MCS. Please contact your suspension manufacturer to determine if your coilover not listed here has offset housings if you wish to run less of a front spacer. Most do not.

Tires

  • APEX Staff Pick: Front & Rear: 315/30-18
    • Extreme Performance Summer: Falken RT660 (200 TW), Yokohama Advan A052 (200 TW), Nankang CRS (200 TW)
    • R-Compound: Nitto NT01 (100 TW), Nankang AR1 (100 TW)
    • Semi-Slick/Slick: Hoosier A7 (40TW), Hoosier R7 (40TW), BF Goodrich R1S (40TW), Toyo RR (40TW), Pirelli DH (305/660-18), Michelin SM8/9 (30/65-18)
  • Narrower Alternative: Front & Rear 305/35-18
    • Extreme Performance Summer: No options currently available
    • R-Compound: Nitto NT01 (100 TW), Toyo R888R (100 TW)
    • Semi-Slick/Slick: Toyo RR (40TW), Pirelli DH (305/680-18), Michelin SM8/9 (30/68-18)



Wheels

  • Front & Rear: 19x11" ET52
    • Available in: EC-7, SM-10, VS-5RS, EC-7RS, SM-10RS
    • Additional negative camber is required up front. We recommend at least -2.75*
    • 25mm spacers, extended wheel studs, and open lug nuts are required up front for strut clearance
    • No spacers are needed on the rear
    • Select coilovers with offset housings allow the use of a 20mm front spacer. The only known coilovers are JRi, JRZ, and MCS. Please contact your suspension manufacturer to determine if your coilover not listed here has offset housings if you wish to run less of a front spacer. Most do not.

Tires

  • APEX Staff Pick: Front & Rear 305/30-19
    • Extreme Performance Summer: Falken RT660 (200 TW), Goodyear Supercar 3 (220 TW), Nankang CRS (200 TW)
    • R-Compound: Nitto NT01 (100 TW), Nankang AR1 (100 TW), Goodyear Supercar 3R (100 TW), Michelin Pilot Sport Cup2 (180 TW)
    • Semi-Slick: 295/30-19 Hoosier R7 & A7 (40 TW)



Wheels

  • Front: 19x11" ET26 // Rear: 19x11” ET52
    • Available in: SM-10, VS-5RS, EC-7RS
    • Additional negative camber is required up front. We recommend at least -2.75*
    • No front spacers are needed
    • No rear spacers are needed

Tires

  • APEX Staff Pick: Front & Rear 305/30-19
    • Extreme Performance Summer: Falken RT660 (200 TW), Goodyear Supercar 3 (220 TW), Nankang CRS (200 TW)
    • R-Compound: Nitto NT01 (100 TW), Nankang AR1 (100 TW), Goodyear Supercar 3R (100 TW), Michelin Pilot Sport Cup2 (180 TW)
    • Semi-Slick: 295/30-19 Hoosier R7 & A7 (40 TW)



Wheels

  • Front & Rear: 18x12" ET57
    • Available in: VS-5RS
    • Additional negative camber is required up front. We recommend at least -3.5*
    • 35mm or larger spacers are required up front, along with GT4 or GT350R spec wheel studs,  and open lug nuts
    • Aftermarket rear shock mounts with a slimmer profile than stock are suggested. Small spacer may still be needed in the rear for clearance
    • Coilovers with offset housings are highly suggested. The only known coilovers are JRi, JRZ, and MCS. Please contact your suspension manufacturer to determine if your coilover not listed here has offset housings if you wish to run less of a front spacer. Most do not.
    • The front will poke out with factory fenders, even with the above mods. This should be considered a race only fitment
    • Due to the extremely aggressive nature of this setup, it is the end-users responsibility for proper fitment. Each car is a little different and spacers will be needed to dial it in for your specific suspension setup. We can not give you exact setup guarantees over the phone.



Tires

  • APEX Staff Pick: Front & Rear: 315/30-18
    • Extreme Performance Summer: Falken RT660 (200 TW), Yokohama Advan A052 (200 TW), Nankang CRS (200 TW)
    • R-Compound: Nitto NT01 (100 TW), Nankang AR1 (100 TW)
    • Semi-Slick/Slick: Hoosier A7 (40TW), Hoosier R7 (40TW), BF Goodrich R1S (40TW), Toyo RR (40TW), Pirelli DH (305/660-18), Michelin SM8/9 (30/65-18)
  • Wider Alternative: Front & Rear 335/30-18
    • Aftermarket fender flares must be used if you wish to run 335 wide tires on an S550. DO NOT try to run this with the factory bodywork, it will not work.
  •



  • Wheels

    • Front & Rear: 19x12" ET57
      • Available in: SM-10RS
      • Track alignment required. At least -3* front and -2* rear is a good starting point
      • 35mm or larger spacers are required up front, along with GT4 or GT350R spec wheel studs, and open lug nuts with aftermarket coilovers that provide better clearance than factory setups are required to run a 35mm spacer The only known coilovers are JRi, JRZ, and MCS. Please contact your suspension manufacturer to determine if your coilover not listed here has offset. Most do not.
      • Rear spacer may be needed depending on tire and rear shock mount variations
      • 40+mm spacer required with factory style dampers
      • Due to the extremely aggressive nature of this setup, it is the end-users responsibility for proper fitment. Each car is a little different and spacers will be needed to dial it in for your specific suspension setup. We can not give you exact setup guarantees over the phone.

    Tires

    • APEX Staff Pick: Front & Rear 305/30-19
      • Extreme Performance Summer: Falken RT660 (200 TW), Goodyear Supercar 3 (220 TW), Nankang CRS (200 TW)
      • R-Compound: Nitto NT01 (100 TW), Nankang AR1 (100 TW), Goodyear Supercar 3R (100 TW), Michelin Pilot Sport Cup2 (180 TW)
      • Semi-Slick: 295/30-19 Hoosier R7 & A7 (40 TW)
    • Wider Alternative: Front & Rear 315/30-19
      • Extreme Performance Summer: Falken RT660 (200 TW), Continental Extreme Force (200 TW)
      • R-Compound: Michelin Pilot Sport Cup2 (180 TW)
      • Semi-Slick: Hoosier R7 (40 TW), Hoosier A7 (40 TW)



Staggered Configurations

Maintains stock-like handling characteristics, tires can only be rotated left to right.

Wheels

  • Front: 18x11" ET52 // Rear: 18x12” ET57
    • Available in: VS-5RS
    • Additional negative camber is required up front. We recommend at least -2.75*
    • 25mm spacers, extended wheel studs, and open lug nuts are required up front for strut clearance
    • Select coilovers with offset housings allow the use of a 20mm front spacer. The only known coilovers are JRi, JRZ, and MCS. Please contact your suspension manufacturer to determine if your coilover not listed here has offset housings if you wish to run less of a front spacer. Most do not.
    • Aftermarket rear shock mounts with a slimmer profile than stock are suggested. Small spacer may still be needed in the rear for clearance
    • This fitment is meant for racers looking to maximize rear traction with 315/30-18 tires. Wider tires may be used, but clearances become even tighter and the larger tire will likely stick out past the rear fender lip.
    • Due to the extremely aggressive nature of this setup, it is the end-users responsibility for proper fitment. Each car is a little different and spacers will be needed to dial it in for your specific suspension setup. We can not give you exact setup guarantees over the phone.

Tires

  • APEX Staff Pick: Front & Rear: 315/30-18
    • Extreme Performance Summer: Falken RT660 (200 TW), Yokohama Advan A052 (200 TW), Nankang CRS (200 TW)
    • R-Compound: Nitto NT01 (100 TW), Nankang AR1 (100 TW)
    • Semi-Slick/Slick: Hoosier A7 (40TW), Hoosier R7 (40TW), BF Goodrich R1S (40TW), Toyo RR (40TW), Pirelli DH (305/660-18), Michelin SM8/9 (30/65-18)
  •



Wheels

  • Front: 19x11" ET26 // Rear: 19x11.5” ET56
    • Available in: SM-10, VS-5RS
    • Additional negative camber is required up front. We recommend at least -2.75*
    • Additional negative camber is suggested in the rear. We recommend at least -1.5*
    • No front spacers are needed
    • No rear spacers are needed

Tires

  • APEX Staff Pick: Front 305/30-19 // Rear 325/30-19
    • Extreme Performance Summer: Goodyear Eagle F1 Supercar 3 (220 TW)
    • R-Compound: Nitto NT01 (100 TW), Toyo R888R (100 TW)
    • Semi-Slick: 295/30-19 // 315/30-19 Hoosier R7 & A7 (40 TW)





About Camber Plates


Adjustable camber plates do more than just aid in wide wheel and tire fitment. They provide increased grip and reduced tire wear by spreading the load evenly during cornering. Learn more in our blog article, The Positives of Negative Camber.

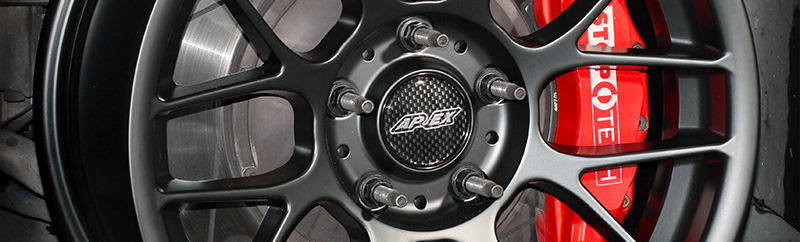

Big Brake Kit Clearances

We have tested many big brake kits with most of the wheels listed in this guide. Those that have been confirmed to clear are listed in the table below. Please email us with any questions related to brake clearance, we’ll be happy to help.

Clears 18" Wheels Clears 19" Wheels
  • OEM Brembo 4 & 6 piston
  • Stoptech ST40 355mm, ST60 355mm, ST60 380mm (Trophy)
  • Wilwood 6 pot 14” Superlite
  • Brembo 14” Pro Series
  • Brembo GT 4 pot 355mm
  • Brembo GT 6 pot 355mm
  • Essex/AP Racing Radi-Cal 372mm
  • S550 6 piston/380mm swap kit

All under 18" section, including the following:

  • OEM GT350 6 piston swap kit
  • Brembo 15” Pro Series
  • Brembo GT 6 pot 380mm
  • Baer Pro 4R
