2012-2018 F06 (Gran Coupé), F12 (convertible), and F13 (coupe) BMW M6.
Do you have an M6 running APEX wheels? Email your photo to support@apexraceparts.com to be featured in our fitment guide!
Vehicle Covered in this Guide
2012-2018 F06 (Gran Coupé), F12 (convertible), and F13 (coupe) BMW M6. Fitment is identical between all models.
Bolt Pattern | Thread Pitch | Center Bore |
5x120mm | M14x1.25mm | 72.56mm |
Performance Street/Track Fitments
Most M6 models are equipped with 20" wheels from the factory. These 19" fitments will reduce rotational mass and support a wide range of popular performance tires while maintaining great brake clearance.
Staggered Setups
Maintains stock-like handling characteristics, tires can only be rotated left to right. Maximizes both front and rear tire width.
Additional Fitment Information
Concavity & Face Profiles

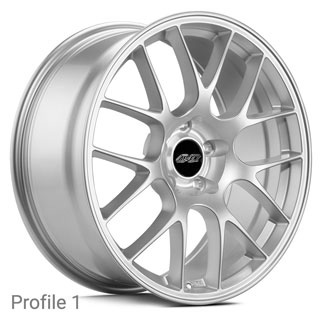

Each of our wheel designs is available in two or three different levels of concavity, which we call Profiles. The Profile is dictated by the width and offset, meaning wide lower-offset wheels will have more concavity, while narrow higher-offset wheels will have less concavity.
Available Face Profiles
ARC-8 | EC-7 | FL-5 | SM-10 |

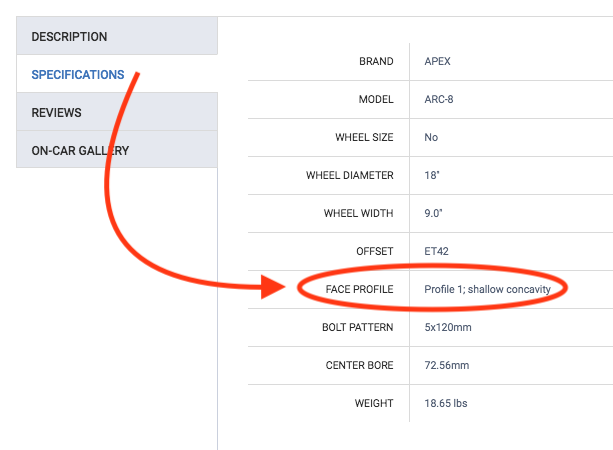

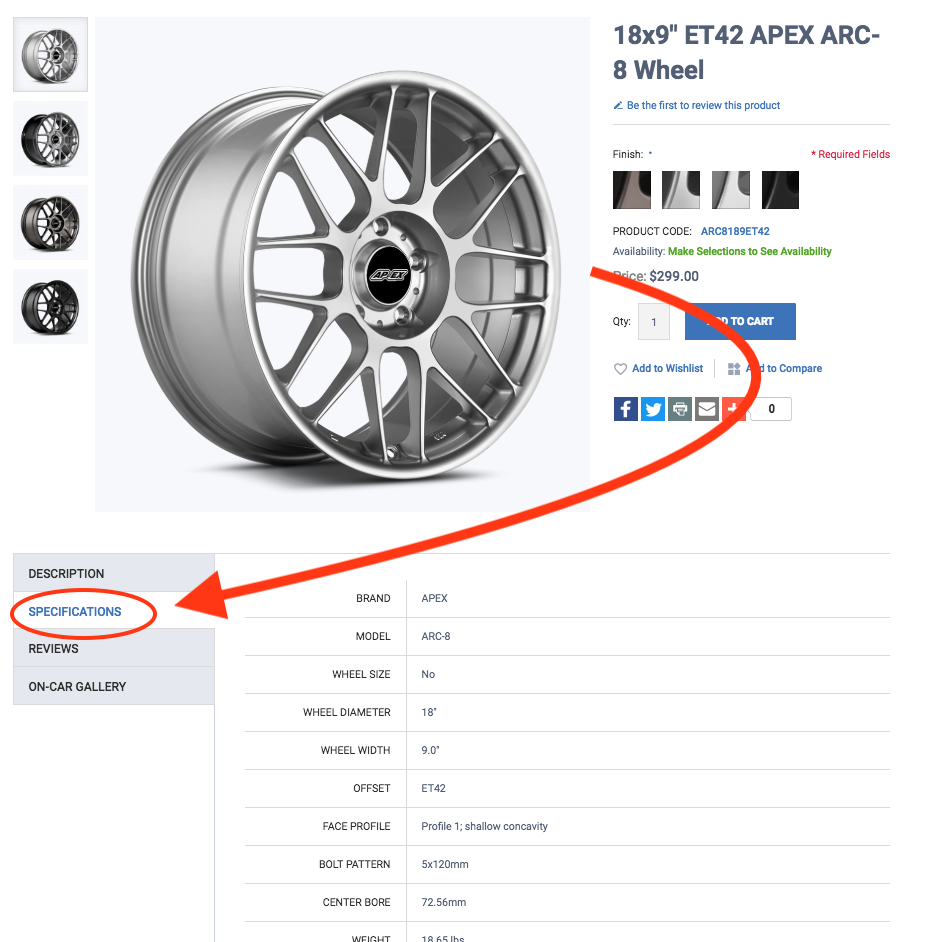

To determine the face profile of a specific wheel visit the "Specifications" tab on the product page for that wheel. For example:
Identifying Suspension Types

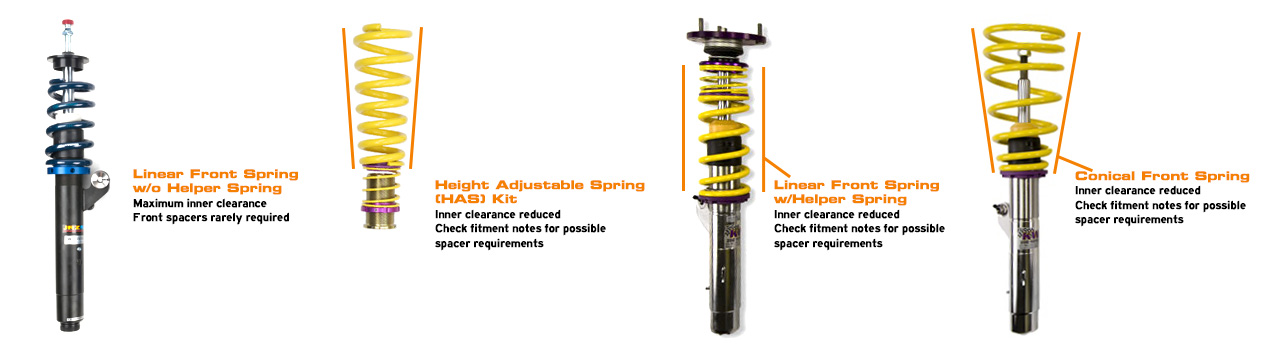

If you’re using coilovers, see the image below to identify which type of coilover spring you have, as it may effect your wheel fitment.
Aftermarket Suspensions Known To Reduce Inner Clearance
(includes but not limited to):
- Bilstein PSS9 & PSS10
- KW Height-Adjustable Spring (HAS) kit
- KW Variants
- KW Clubsports
- Öhlins Road & Track
About Camber Plates
Adjustable camber plates do more than just aid in wide wheel and tire fitment. They provide increased grip and reduced tire wear by spreading the load evenly during cornering. Learn more in our blog article, The Positives of Negative Camber.
Big Brake Kit Clearances
We have tested many brake kits with the wheels listed in this guide. Please email us with any questions related to brake clearance, we’ll be happy to help.
