2002-2008 Z4 Roadster (E85) and Coupe (E86). Fitment is identical between all Z4 Non-M models.
SM-10 // Front & Rear: 17x9.5" ET35 with 255/40-17 tires (mods required)
View all E85/86 Z4 Non-M images
Vehicle Covered in this Guide
2002-2008 Z4 Roadster (E85) and Coupe (E86). Fitment is identical between all Z4 Non-M models.
Available Wheel Designs (click images to enlarge)
All APEX wheel designs are available for this chassis.
| Forged Designs | Flow Formed Designs | ||||

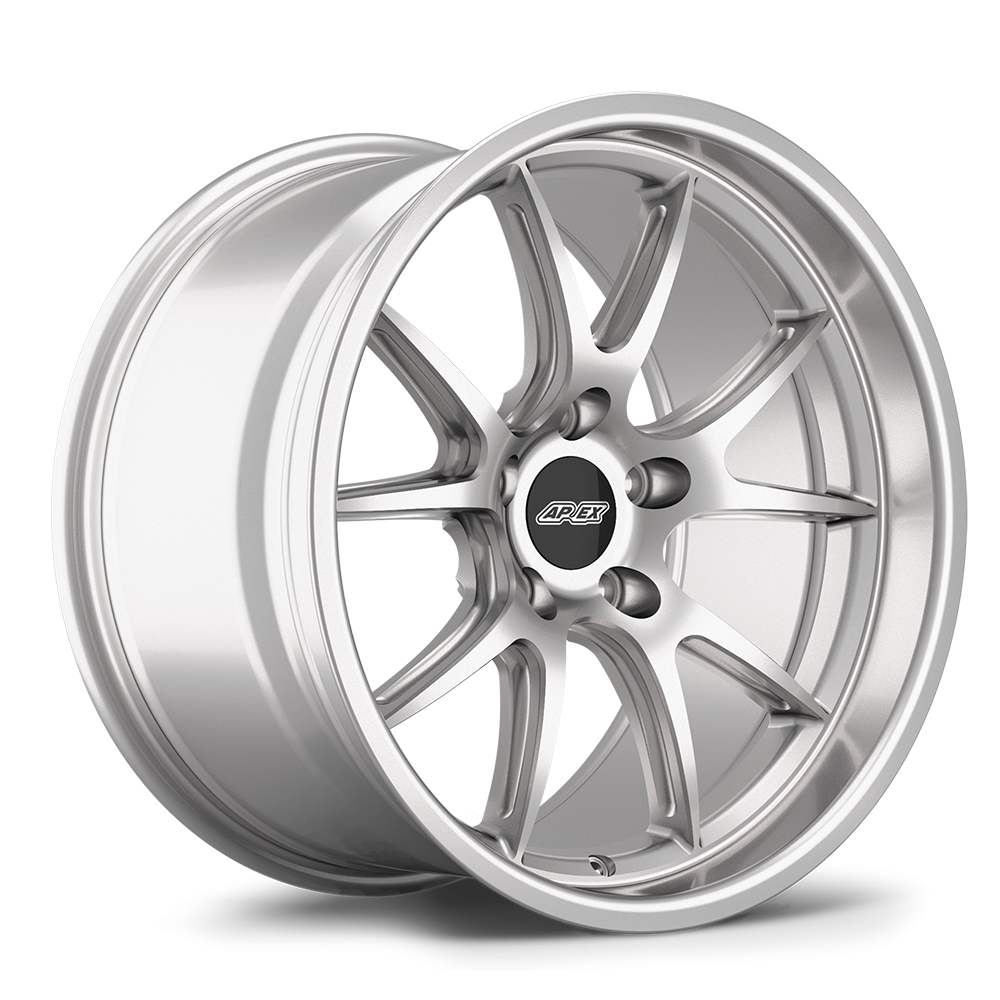

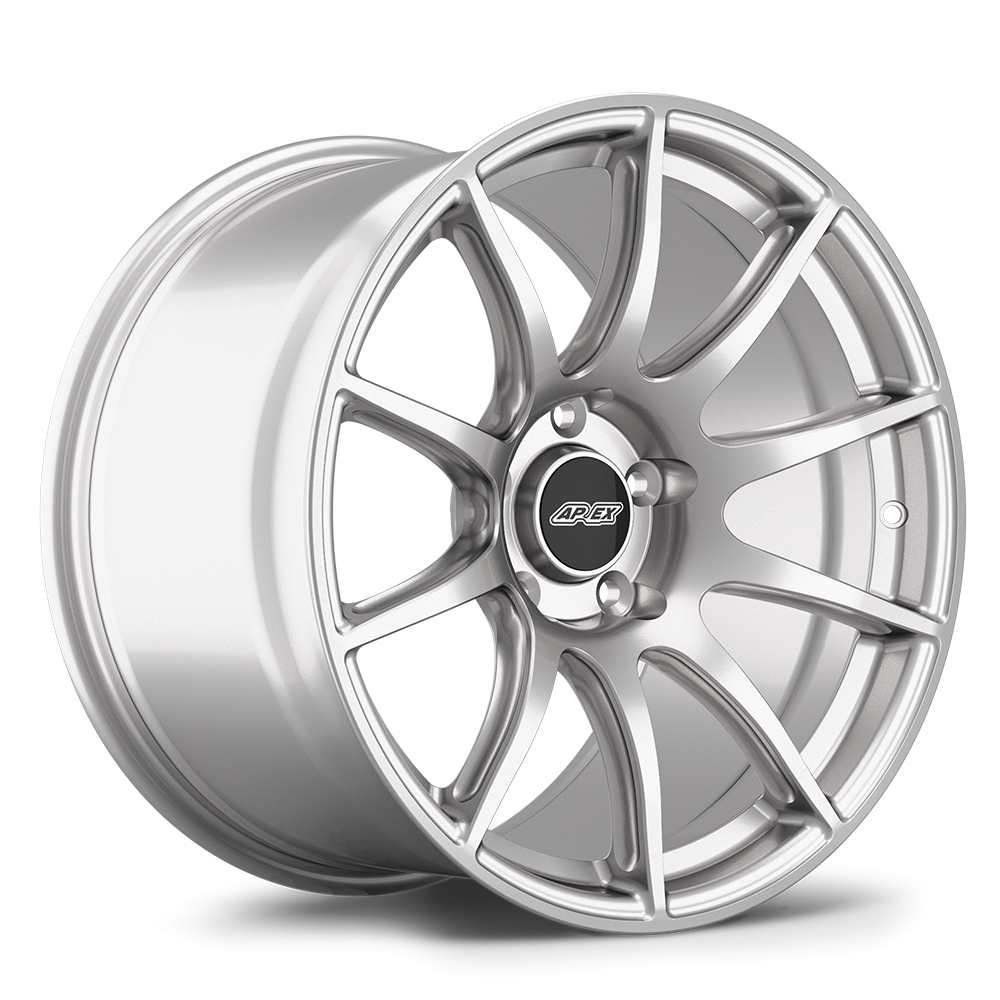

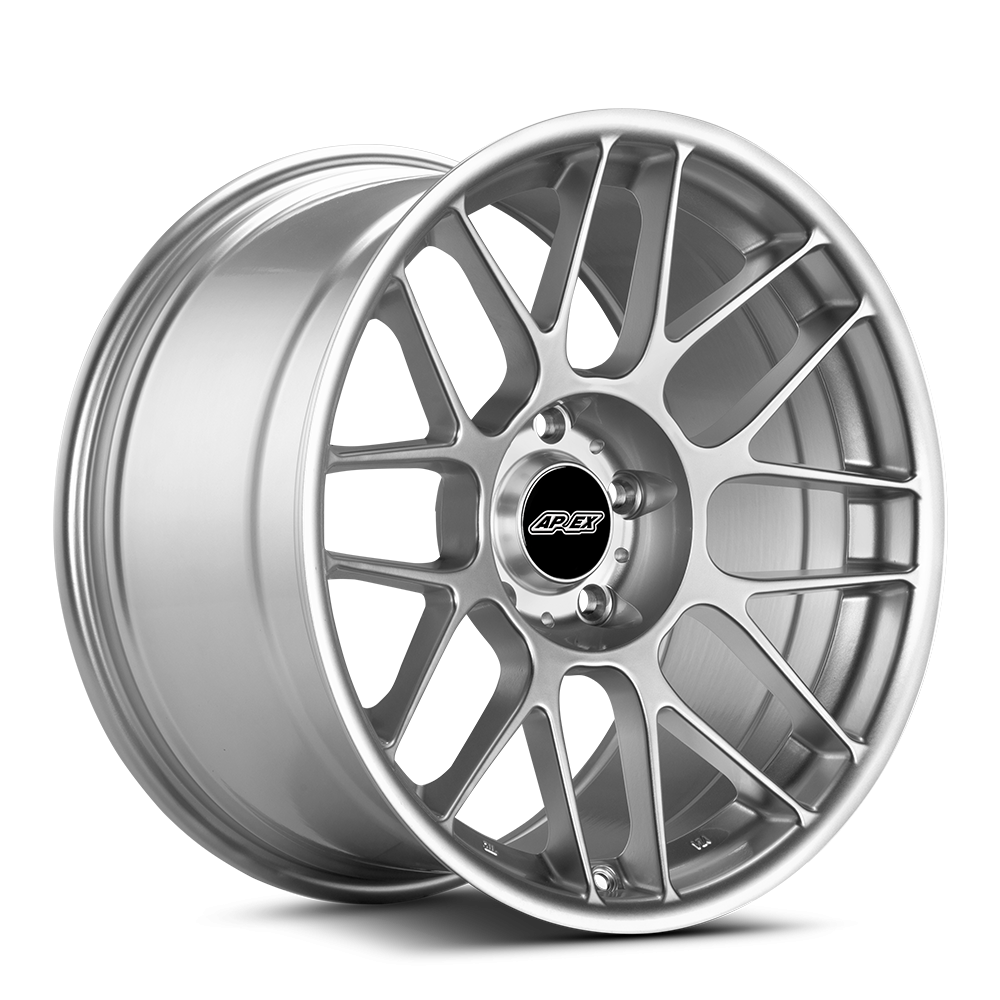

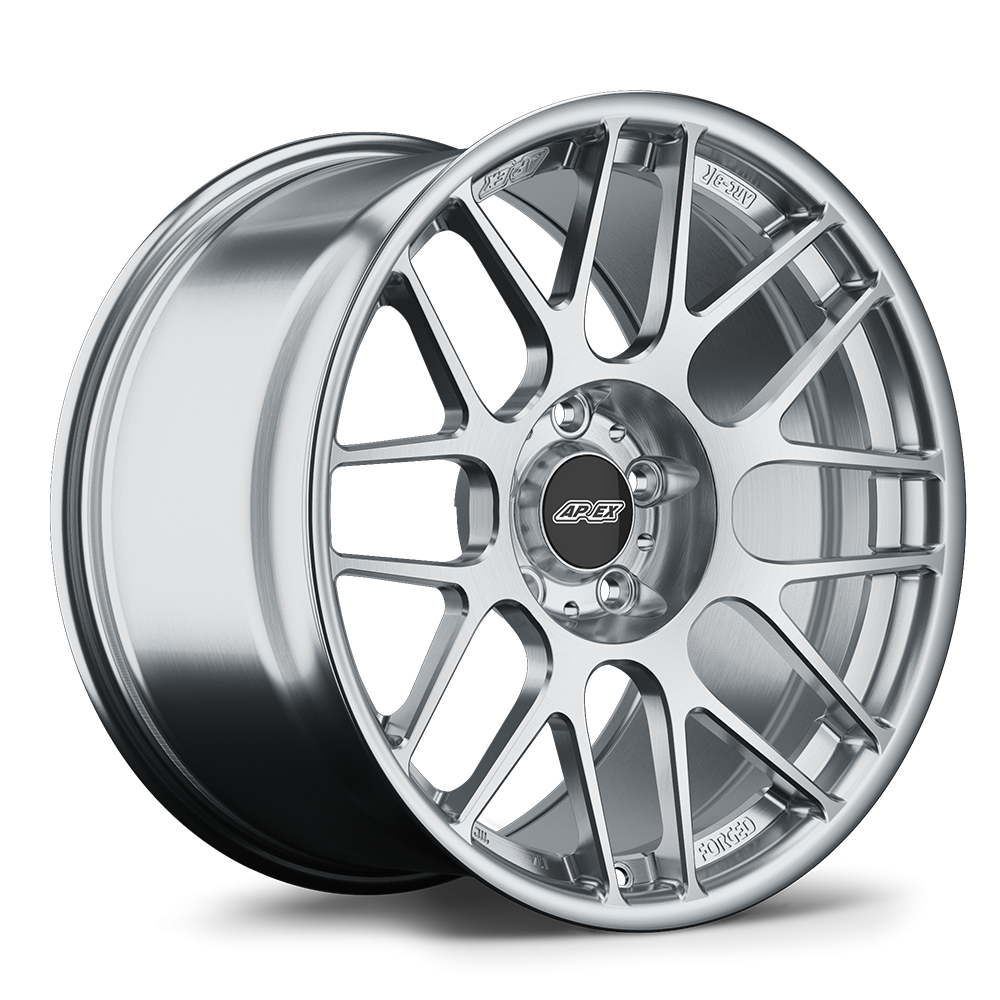

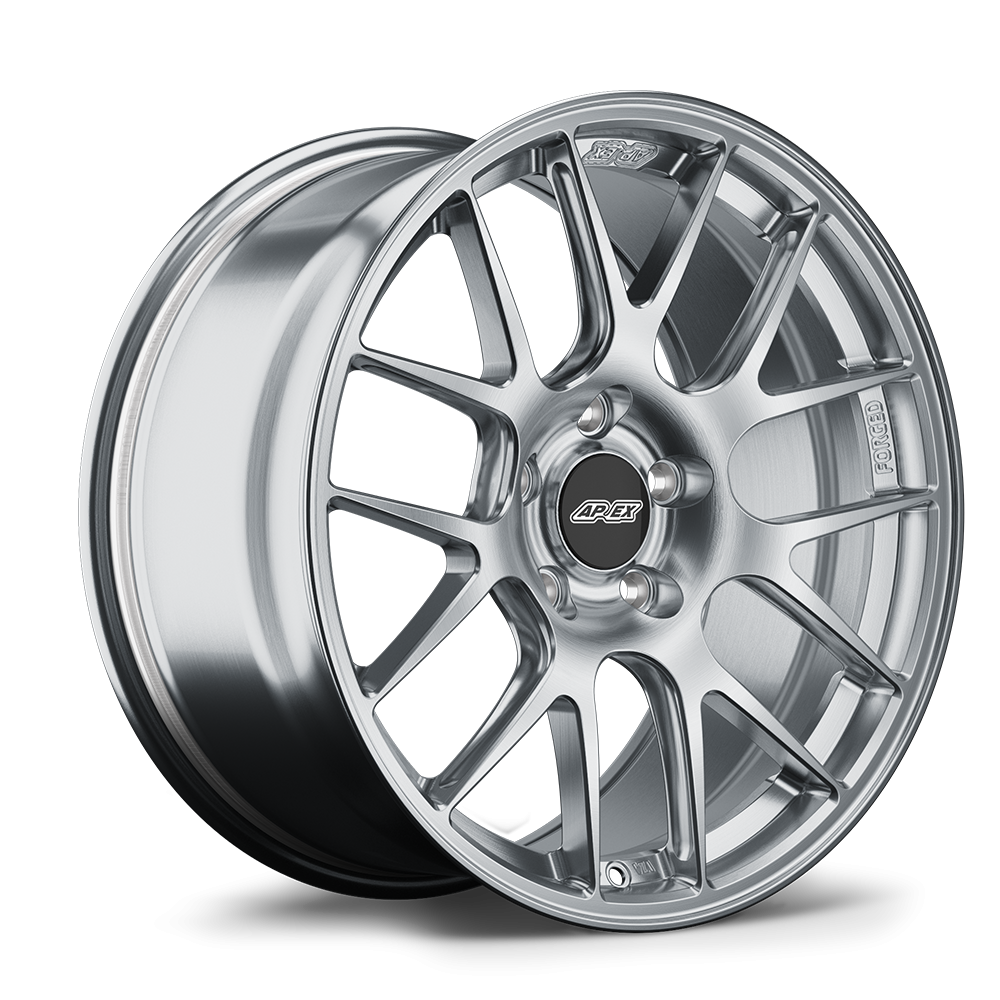

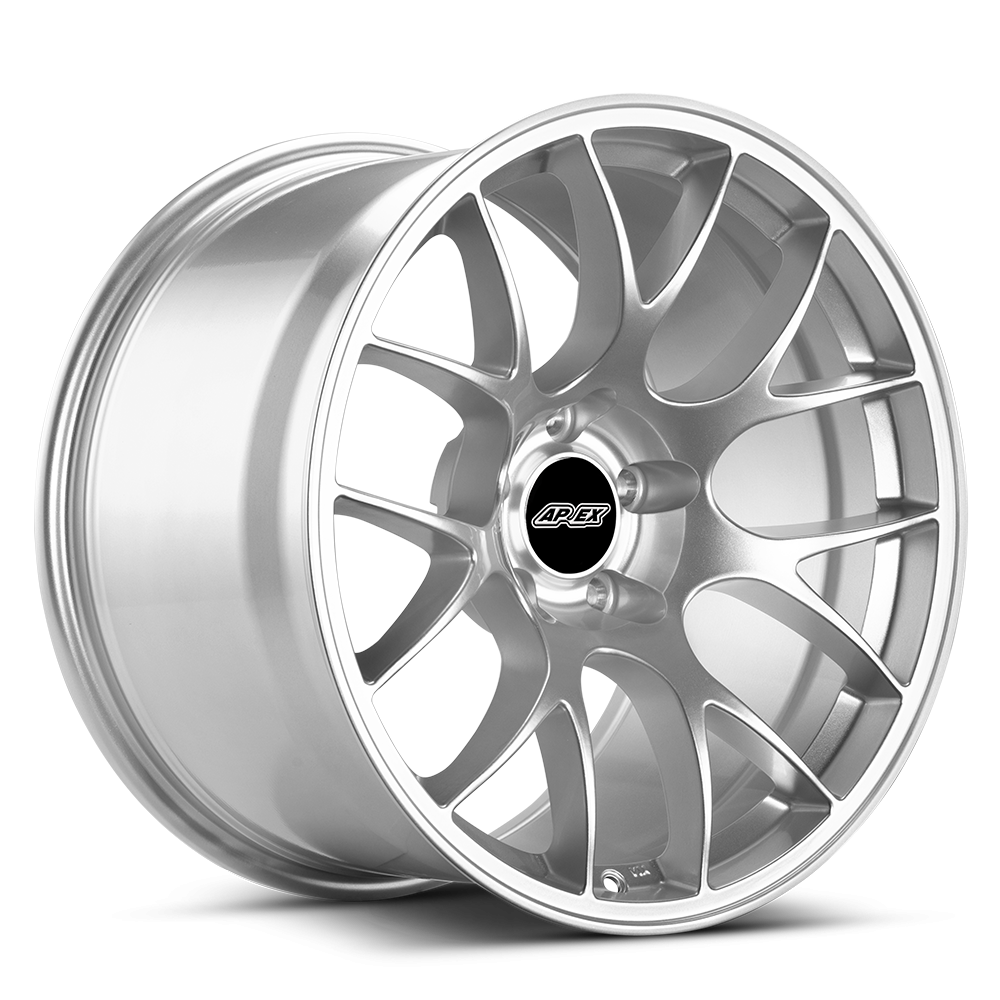

| ARC-8R | EC-7R | ARC-8 | EC-7 | FL-5 | SM-10 |
Order Here |
Order Here |
Order Here |
Order Here |
Order Here |
Order Here |
| Bolt Pattern | Thread Pitch | Center Bore |
| 5x120mm | M12x1.5mm | 72.56mm |
OEM+ Fitments
Easy upgrades for street-driven cars
Square Setups
Recommended for most types of street and performance driving. Allows proper front-to-rear tire rotation to extend tire life & improve handling balance.
- Front & Rear: 17x8.5" ET40 with 235/40-17 tires
- Direct fit.
- 235/45-17 tires can also be used as a direct fit.
- Available in ARC-8R, EC-7R, and ARC-8 designs only.
- Front & Rear: 18x8.5" ET35 or ET38 with 235/40-18 tires
- Direct fit.
Staggered Setups
Maintains stock-like handling characteristics, tires can only be rotated left to right. Maximizes both front and rear tire width.
- Front: 17x8.5" ET40 with 235/40-17 tires
Rear: 17x9" ET42 with 255/40-17 tires- Available in ARC-8, ARC-8R, and EC-7R designs.
- Direct fit.
- Front: 18x8.5" ET35 or ET38 with 235/40-18 tires
Rear: 18x9.5" ET35 with 255/35-18 tires- Direct fit.
- Popular fitment.
- 265/35-18 rear tires can be used, but may require rolled fenders to prevent rubbing.
- Front: 18x8.5" ET35 with 235/40-18 tires
Rear: 18x9.5" ET43 with 265/35-18 tires- Available in EC-7 design only.
- Direct fit.
- 275/35-18 rear tires can be used, but may require rolled fenders to prevent rubbing.
- Front: 19x8.5" ET35 with 235/35-19 tires
Rear: 19x9.5" ET33 with 255/30-19 tires- Direct fit.
- Available in ARC-8 and EC-7 designs only.
- Rear 275/30-19 tires may also be used with rolled fenders and/or negative camber.
- Front: 19x8.5" ET35 with 235/35-19 tires
Rear: 19x9.5" ET43 with 255/30-19 tires- Direct fit.
- Available in EC-7 design only.
- Rear 275/30-19 tires may also be used with rolled fenders and/or negative camber.
Performance Street & Track
Wider fitments for enhanced performance
Square Setups
Recommended for most types of street and performance driving. Allows proper front-to-rear tire rotation to extend tire life & improve handling balance.
- Front & Rear: 17x9" ET30 with 235/40-17 tires
- Front negative camber required.
- Available in ARC-8R, EC-7R, and ARC-8 designs only.
- Front & Rear: 18x9" ET30 or ET31 with 235/40-18 tires
- Front negative camber required.
Staggered Setups
Maintains stock-like handling characteristics, tires can only be rotated left to right. Maximizes both front and rear tire width.
- Front: 17x8.5" ET35 or ET40 with 235/40-17 tires
Rear: 17x9.5" ET35 with 255/40-17 tires- Direct fit.
- Available in ARC-8R, EC-7R, and ARC-8 designs only.
- 275/40-17 rear tires may also be used with rolled fenders and/or negative camber.
- Front: 18x9" ET30 or ET31 with 235/40-18 tires
Rear: 18x9.5" ET35 with 255/35-18 tires
- Front negative camber required.
- Popular fitment.
- Rear 265/35-18 or 275/35-18 tires may also be used with rolled fenders and/or negative camber.
- Front: 19x9" ET28 or ET30 with 245/35-19 tires
Rear: 19x9.5" ET33 with 255/30-19
- Available in ARC-8 design only.
- Front negative camber required.
Additional Fitment Information
Identifying Suspension Types

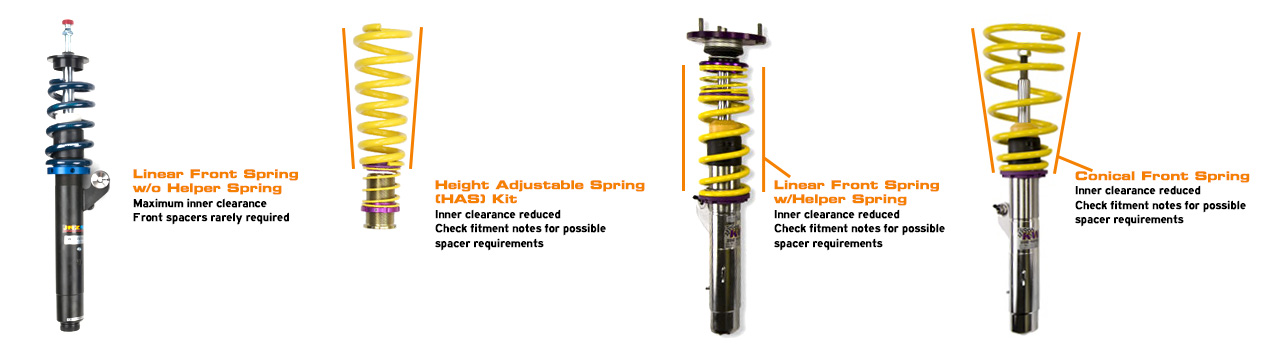

If you’re using coilovers, see the image below to identify which type of coilover spring you have, as it may effect your wheel fitment.
Aftermarket Z4 Suspensions Known To Reduce Inner Clearance
(includes but not limited to):
- Bilstein PSS9 & PSS10
- KW Height-Adjustable Spring (HAS) kit
- KW Variants
- KW Clubsports
- Öhlins Road & Track
Concavity & Face Profiles
Each of our wheel designs is available in two or three different levels of concavity, which we call Profiles. The Profile is dictated by the width and offset, meaning wide lower-offset wheels will have more concavity, while narrow higher-offset wheels will have less concavity.

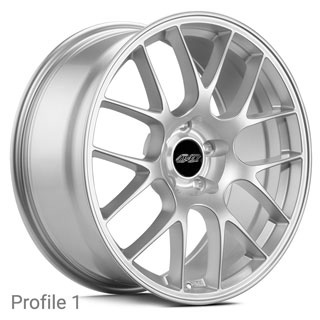

Available Face Profiles
| ARC-8 | EC-7 | FL-5 | SM-10 |
 |
 |
 |

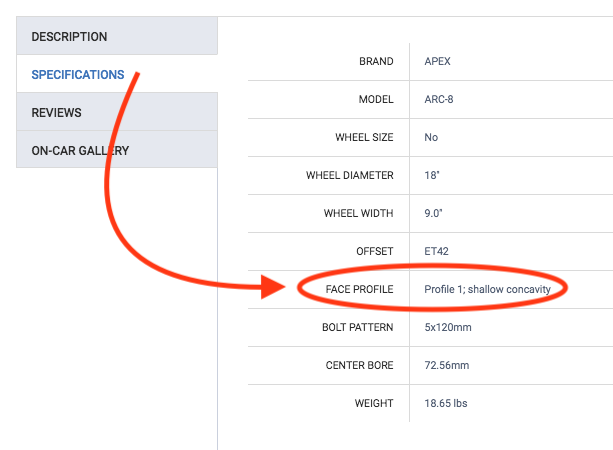

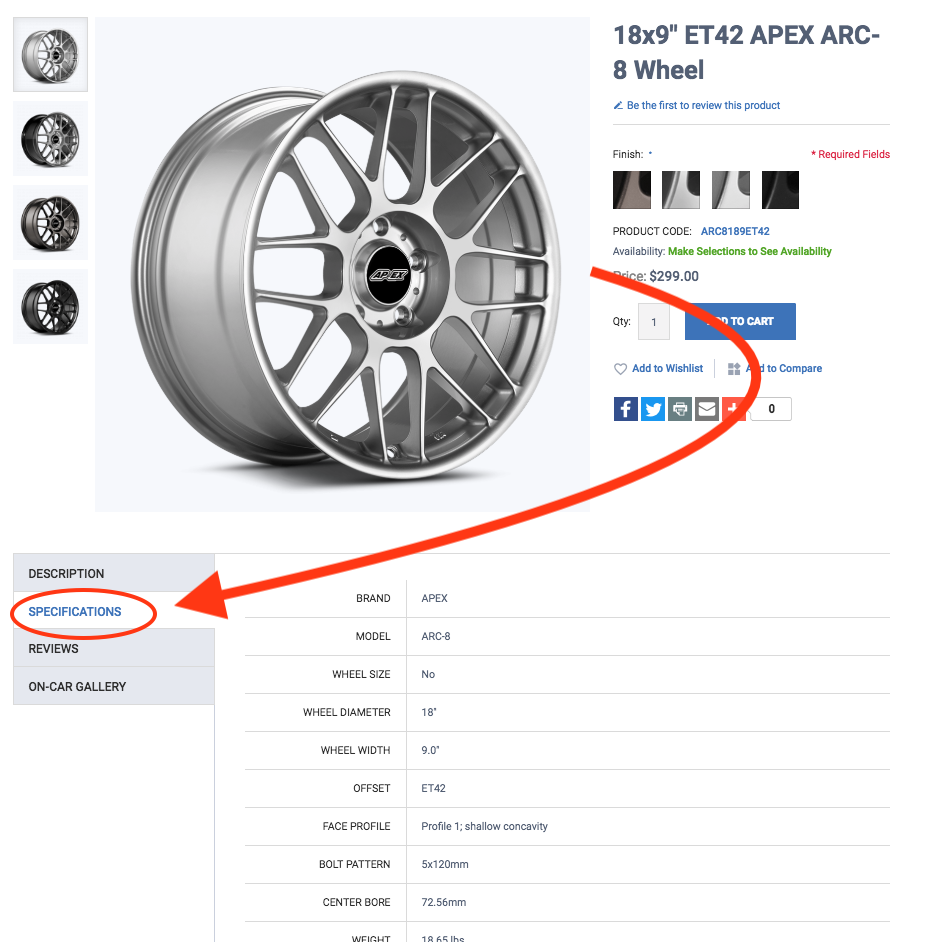

To determine the face profile of a specific wheel visit the "Specifications" tab on the product page for that wheel. For example:
About Camber Plates
Adjustable camber plates do more than just aid in wide wheel and tire fitment. They provide increased grip and reduced tire wear by spreading the load evenly during cornering. Learn more in our blog article, The Positives of Negative Camber, then see our Z4 camber plate pages here.

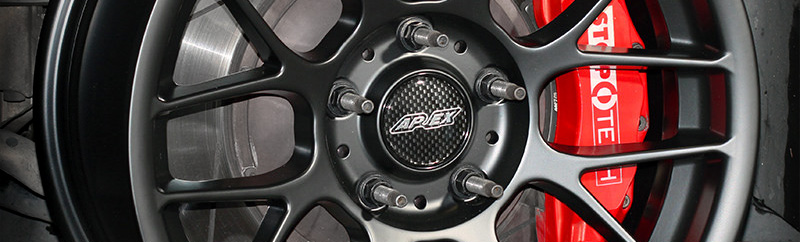

Big Brake Kit Clearances
We have tested many big brake kits with most of the wheels listed in this guide. Please email us with any questions related to brake clearance, we’ll be happy to help.
