997 911 GT2, GT2RS, & GT3RS Wheel & Tire Fitment Guide

  • Updated

For 2007-2012 Porsche 997 911 GT2, GT2RS, & GT3RS Widebody

View all 997 911 Images

Vehicle Covered in this Guide
2007-2012 Porsche 997 911 GT2, GT2 RS, & GT3 RS Widebody Chassis

Brake Clearance Information

In the engineering phase of wheel development we 3D scan factory brakes and review 2D aftermarket brake templates in order to optimize our barrel profiles and spoke curvatures. As a result, our wheels offer massive brake clearance so you can run the smallest possible wheel diameter. Our 18" wheels clear the optional factory PCCB.

Available Wheel Designs (click images to enlarge)



Forged Designs  Flow Formed Designs

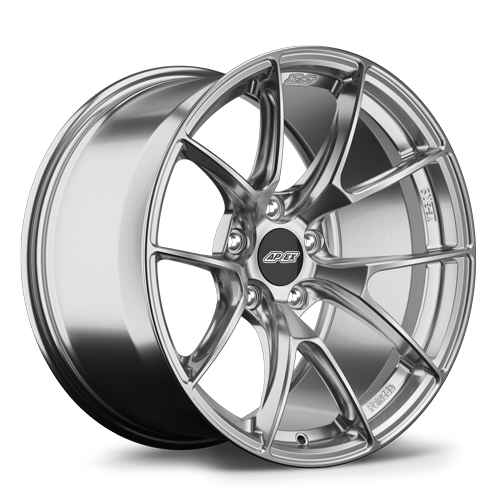

VS-5RS


Order Here

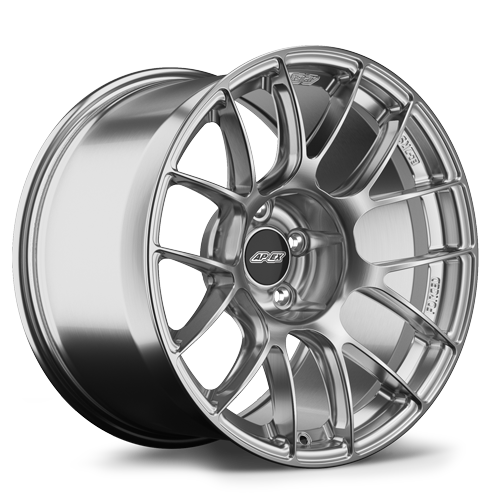

EC-7RS


Order Here

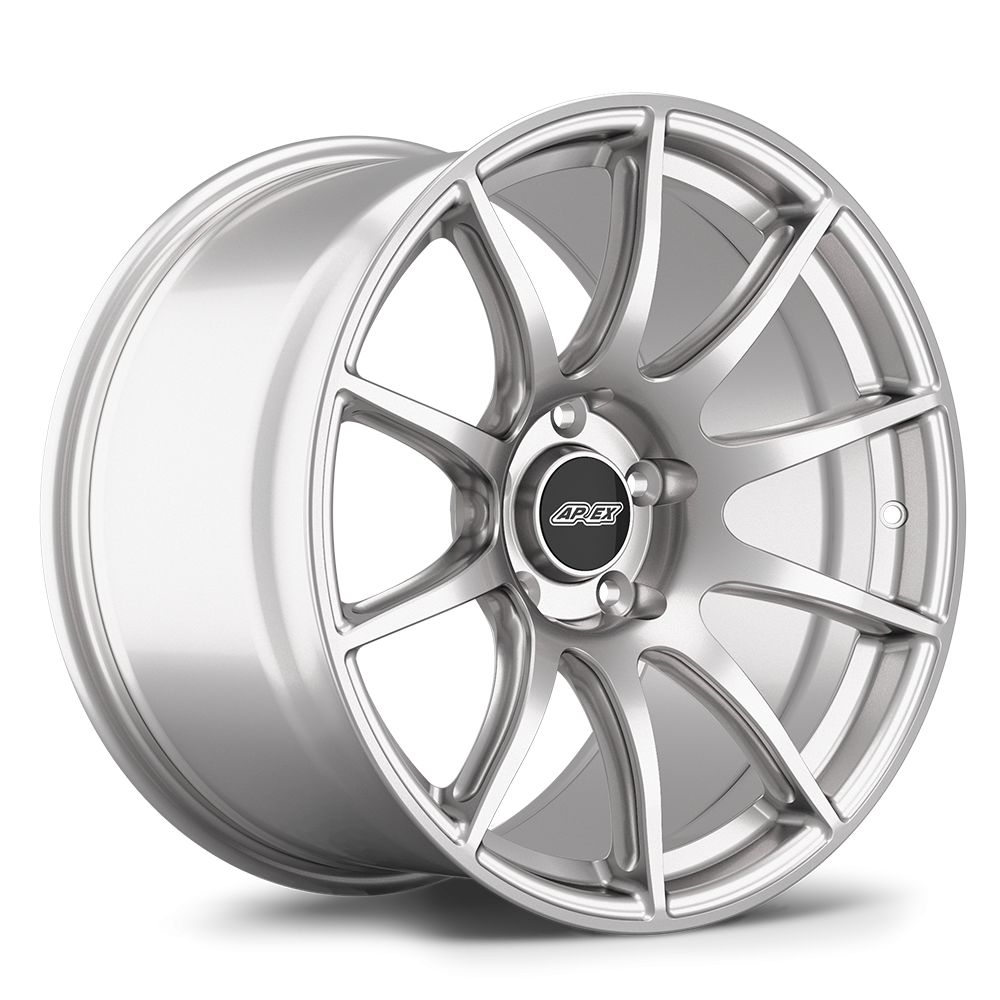

SM-10


Order Here



Bolt Pattern Center Bore Lug Seat Thread Pitch
5x130mm 71.6mm R14 Ball Seat M14x1.5mm





Performance Street & Track

Wider fitments for enhanced performance

Whether you enjoy spirited street driving or you are a weekend track warrior chasing lap times, these wheel & tire configurations are ideal for enthusiasts looking for a more dramatic improvement in performance and they are typically paired with performance oriented summer tires or track oriented r-compounds. Most notably, these fitments incorporate wider 9” front wheels which provide superior tire sidewall support over the more "generic" 8.5" front wheels. A wider front wheel and tire combination will increase front end grip and close the stagger from front to rear resulting in sharper turn-in and less understeer. This is one of the easiest and most effective improvements you can make to your Porsche from a handling perspective.

We've optimized the offset of our 9" front wheels to to work well with the stock fenders, however, a wide variety of tire compounds can be used and some may require negative camber to fit properly. See fitment notes under each tire configuration below to see if modifications are required. If you plan to track your car, we highly recommended dialing in negative camber regardless of whether your wheel/tire fitment requires it for fender clearance. Negative camber is vital for extracting the most performance and longevity out of your tires, and without the proper amount the outer shoulders of your tires will wear out prematurely and running tire costs will dramatically increase.



5 Lug Wheels

  • Front: 18x9” ET46  //  Rear: 18x12” ET45 or ET46
    • Available in: SM-10, EC-7RS, VS-5RS
    • Popular fitment

Tires

  • APEX Staff Pick: Front: 255/35-18  //  Rear: 315/30-18
    • A minimum of -2º of front camber is recommended
    • Max Performance Summer: No options currently available
    • Extreme Performance Summer: Falken RT660 (200 TW), Yokohama A052 (200 TW), Nankang CR-1 (200 TW)
    • R-Compound: Toyo R888R (100 TW), Nankang AR-1 (100 TW)
  • Alternative: Front: 245/40-18  //  Rear: 305/35-18
    • Typically a direct fit, but we encourage a little additional negative camber up front
    • Max Performance Summer: No options currently available
    • Extreme Performance Summer: No options currently available
    • R-Compound: Nitto NT01 (100 TW), Toyo R888R (100 TW)



5 Lug Wheels

  • Front: 19x9” ET50  //  Rear: 19x12” ET46
    • Available in: EC-7RS, VS-5RS
    • Popular fitment

Tires

  • APEX Staff Pick: Front: 245/35-19  //  Rear: 325/30-19
    • Factory 997.2 GT2 RS & GT3 RS sizes
    • Direct fit
    • Max Performance Summer: Michelin Pilot Sport 4S (300 TW)
    • Extreme Performance Summer: Michelin Cup 2 240 Connect (240 TW), Goodyear Supercar 3 (220 TW)
    • R-Compound: Michelin Cup 2 (180 TW), Toyo R888R (100 TW), Nankang AR-1 (100 TW), Pirelli Trofeo R (60TW)
  • Alternative 1: Front: 245/35-19  //  Rear: 315/30-19
    • Direct fit
    • Max Performance Summer: Michelin Pilot Sport 4S (300 TW)
    • Extreme Performance Summer: Falken RT660 (200 TW)
    • R-Compound: Michelin Cup 2 (180 TW)
  • Alternative 2: Front: 245/35-19  //  Rear: 305/30-19
    • Direct fit
    • Max Performance Summer: Michelin Pilot Sport 4S (300 TW)
    • Extreme Performance Summer: Michelin Cup 2 240 Connect (240 TW), Falken RT660 (200 TW), Goodyear Supercar 3 (220 TW), Nankang CR-1 (200 TW)
    • R-Compound: Michelin Cup 2 (180 TW), Toyo R888R (100 TW), Nankang AR-1 (100 TW)



Centerlock Wheels

  • Front: 19x9” ET47  //  Rear: 19x12” ET46
    • Available in: VS-5RS
    • Popular fitment

Tires

  • APEX Staff Pick: Front: 245/35-19  //  Rear: 325/30-19
    • Factory 997.2 GT2 RS & GT3 RS sizes
    • Direct fit
    • Max Performance Summer: Michelin Pilot Sport 4S (300 TW)
    • Extreme Performance Summer: Michelin Cup 2 240 Connect (240 TW), Goodyear Supercar 3 (220 TW)
    • R-Compound: Michelin Cup 2 (180 TW), Toyo R888R (100 TW), Nankang AR-1 (100 TW), Pirelli Trofeo R (60TW)
  • Alternative 1: Front: 245/35-19  //  Rear: 315/30-19
    • Direct fit
    • Max Performance Summer: Michelin Pilot Sport 4S (300 TW)
    • Extreme Performance Summer: Falken RT660 (200 TW)
    • R-Compound: Michelin Cup 2 (180 TW)
  • Alternative 2: Front: 245/35-19  //  Rear: 305/30-19
    • Direct fit
    • Max Performance Summer: Michelin Pilot Sport 4S (300 TW)
    • Extreme Performance Summer: Michelin Cup 2 240 Connect (240 TW), Falken RT660 (200 TW), Goodyear Supercar 3 (220 TW), Nankang CR-1 (200 TW)
    • R-Compound: Michelin Cup 2 (180 TW), Toyo R888R (100 TW), Nankang AR-1 (100 TW)





Hardcore Track & Race

All-out performance for fastest lap times

These wheel and tire configurations are best suited for hardcore track junkies and club racers competing for a spot on the podium.  Everything from Extreme Summer tires to full Racing Slicks are commonly used depending on your experience behind the wheel, class rules, etc. Most notably, these fitments incorporate wider 9” front wheels (or 10" wide if you are real hardcore) which provide superior tire sidewall support over the stock 8.5" front wheels. A wider front wheel and tire combination will increase front end grip and close the stagger from front to rear resulting in sharper turn-in and less understeer. This is one of the easiest and most effective improvements you can make to your Porsche from a handling perspective.

We've optimized the offset of our 9" front wheels to to work well with the stock fenders, however, a wide variety of tire compounds can be used and some may require negative camber to fit properly. See fitment notes under each tire configuration below to see if modifications are required. If you plan to track your car, we highly recommended dialing in negative camber regardless of whether your wheel/tire fitment requires it for fender clearance. Negative camber is vital for extracting the most performance and longevity out of your tires, and without the proper amount the outer shoulders of your tires will wear out prematurely and running tire costs will dramatically increase.



5 Lug Wheels

  • Front: 18x9” ET46  //  Rear: 18x12” ET45 or ET46
    • Available in: SM-10, EC-7RS, VS-5RS
    • Popular fitment

Tires

  • APEX Staff Pick: Front: 255/35-18  //  Rear: 315/30-18
    • A minimum of -2º of front camber is recommended
    • Extreme Performance Summer: Falken RT660 (200 TW), Yokohama A052 (200 TW), Nankang CR-1 (200 TW)
    • R-Compound: Toyo R888R (100 TW), Nankang AR-1 (100 TW)
    • Semi-Slick: Hoosier R7 & A7 (40 TW)
  • Alternative 1: Front: 245/40-18  //  Rear: 305/35-18
    • Typically a direct fit, but we encourage a little additional negative camber
    • Extreme Performance Summer: No options currently available
    • R-Compound: Nitto NT01 (100 TW), Toyo R888R (100 TW)
    • Semi-Slick: No options currently available
  • Alternative 2: Front: 245/35-18  //  Rear: 315/30-18
    • Typically a direct fit, but we encourage a little additional negative camber
    • Extreme Performance Summer: No options currently available
    • R-Compound: Toyo R888R (100 TW)
    • Semi-Slick: Hoosier R7 & A7 (40 TW)
  • Alternative 3: Front: 245/35-18  //  Rear: 315/30-18
    • Typically a direct fit, but we encourage a little additional negative camber
    • Extreme Performance Summer: Continental Extremecontact Force (200 TW)
    • R-Compound: No options currently available
    • Semi-Slick: Hoosier R7 & A7 (40 TW)
  • Alternative 4: Front: 245/645-18  //  Rear: 305/660-18
    • A minimum of -2.5º front & -2.2º rear camber is recommended
    • Racing Slick: Pirelli DH
  • Alternative 5: Front: 265/645-18  //  Rear: 315/680-18
    • A minimum of -3º front & -2.2º rear camber is recommended via front camber plates
    • Racing Slick: Pirelli DH
  • Alternative 6: Front: 265/645-18  //  Rear: 325/660-18
    • A minimum of -3.5º front & -2.2º rear camber is recommended via front camber plates
    • Racing Slick: Pirelli DH



5 Lug Wheels

  • Front: 18x10” ET36  //  Rear: 18x12” ET45 or ET46
    • Available in: SM-10, EC-7RS, VS-5RS
    • Cup front fender flares are required
    • Caster values need to center the wheel for maximum clearance
    • Motorsport oriented coilovers with a slim silhouette required for maximum clearance
    • Massaging plastic fender liners is suggested and tire may still rub at full lock

Tires

  • APEX Staff Pick: Front: 275/35-18  //  Rear: 335/30-18
    • A minimum of -3.5º front & -2.2º rear camber is recommended
    • Extreme Performance Summer:  BFG Rival S 1.5 (200 TW)
    • R-Compound: Nitto NT01 (100 TW), Toyo R888R (100 TW)
    • Semi-Slick: Hoosier R7/A7 (40 TW)
  • Alternative 1: Front: 265/35-18  //  Rear: 315/30-18
    • A minimum of -3.5º front & -2º rear camber is recommended
    • Extreme Performance Summer:  Yokohama A052 (200 TW), Falken RT660 (200 TW)
    • R-Compound: Toyo R888R (100 TW)
    • Semi-Slick: No options currently available
  • Alternative 2: Front: 275/35-18  //  Rear: 315/30-18
    • A minimum of -3.5º front & -2º rear camber is recommended
    • Extreme Performance Summer:  Falken RT660 (200 TW), BFG Rival S 1.5 (200 TW), Continental Extremecontact Force (200 TW)
    • R-Compound: Nitto NT01 (100 TW), Toyo R888R (100 TW)
    • Semi-Slick: Hoosier R7/A7 (40 TW)
  • Alternative 4: Front: 265/645-18  //  Rear: 315/680-18
    • A minimum of -3.5º front & -2.2º rear camber is recommended
    • Racing Slick: Pirelli DH
  • Alternative 4: Front: 275/645-18  //  Rear: 315/680-18
    • A minimum of -3.5º front & -2.2º rear camber is recommended
    • Racing Slick: Pirelli DH
  • Alternative 4: Front: 265/645-18  //  Rear: 325/660-18
    • A minimum of -3.5º front & -2.2º rear camber is recommended
    • Racing Slick: Pirelli DH



5 Lug Wheels

  • Front: 19x9” ET50  //  Rear: 19x12” ET46
    • Available in: EC-7RS, VS-5RS
    • Popular fitment

Tires

  • APEX Staff Pick: Front: 245/35-19  //  Rear: 325/30-19
    • Factory 997.2 GT2 RS & GT3 RS sizes
    • Direct fit
    • Extreme Performance Summer: Michelin Cup 2 240 Connect (240 TW), Goodyear Supercar 3 (220 TW)
    • R-Compound: Michelin Cup 2 (180 TW), Toyo R888R (100 TW), Nankang AR-1 (100 TW), Pirelli Trofeo R (60TW)
    • Semi-Slick: No options currently available
  • Alternative 1: Front: 245/35-19  //  Rear: 315/30-19
    • Direct fit
    • Extreme Performance Summer: Falken RT660 (200 TW)
    • R-Compound: Michelin Cup 2 (180 TW)
    • Semi-Slick: No options currently available
  • Alternative 2: Front: 245/35-19  //  Rear: 305/30-19
    • Direct fit
    • Extreme Performance Summer: Michelin Cup 2 240 Connect (240 TW), Falken RT660 (200 TW), Goodyear Supercar 3 (220 TW), Nankang CR-1 (200 TW)
    • R-Compound: Michelin Cup 2 (180 TW), Toyo R888R (100 TW), Nankang AR-1 (100 TW)
    • Semi-Slick: No options currently available
  • Alternative 3: Front: 235/35-19  //  Rear: 315/30-19
    • Direct fit
    • Extreme Performance Summer: Continental Extremecontact Force (200 TW)
    • R-Compound: Michelin Cup 2 (180 TW)
    • Semi-Slick: Hoosier R7 & A7 (40 TW)



Centerlock Wheels

  • Front: 19x9” ET47  //  Rear: 19x12” ET46
    • Available in: VS-5RS
    • Popular fitment

Tires

  • APEX Staff Pick: Front: 245/35-19  //  Rear: 325/30-19
    • Factory 997.2 GT2 RS & GT3 RS sizes
    • Direct fit
    • Extreme Performance Summer: Michelin Cup 2 240 Connect (240 TW), Goodyear Supercar 3 (220 TW)
    • R-Compound: Michelin Cup 2 (180 TW), Toyo R888R (100 TW), Nankang AR-1 (100 TW), Pirelli Trofeo R (60TW)
    • Semi-Slick: No options currently available
  • Alternative 1: Front: 245/35-19  //  Rear: 315/30-19
    • Direct fit
    • Extreme Performance Summer: Falken RT660 (200 TW)
    • R-Compound: Michelin Cup 2 (180 TW)
    • Semi-Slick: No options currently available
  • Alternative 2: Front: 245/35-19  //  Rear: 305/30-19
    • Direct fit
    • Extreme Performance Summer: Michelin Cup 2 240 Connect (240 TW), Falken RT660 (200 TW), Goodyear Supercar 3 (220 TW), Nankang CR-1 (200 TW)
    • R-Compound: Michelin Cup 2 (180 TW), Toyo R888R (100 TW), Nankang AR-1 (100 TW)
    • Semi-Slick: No options currently available
  • Alternative 3: Front: 235/35-19  //  Rear: 315/30-19
    • Direct fit
    • Extreme Performance Summer: Continental Extremecontact Force (200 TW)
    • R-Compound: Michelin Cup 2 (180 TW)
    • Semi-Slick: Hoosier R7 & A7 (40 TW)



Wheels

  • Front: 19x9.5" ET45 // Rear: 19x12" ET63
    • Available in: VS-5RS
    • RS front fender flares are required
    • Caster values need to center the wheel for maximum clearance
    • Motorsport-oriented coilovers with a slim silhouette with camber plates are required for maximum clearance
    • Massaging plastic fender liners is suggested and tire may still rub at full lock

Tires

  • APEX Staff Pick:Front: 265/35-19 // Rear: 325/30-19
    • Typically a direct fit, but we encourage a minimum of -2º camber up front
    • Max Performance Summer:Michelin PS4S (300 TW)
    • Extreme Performance Summer:Goodyear Eagle Supercar 3 (220 TW), Continental Extremecontact Force (220 TW)
    • R-Compound:Nankang AR-1 (100 TW), Michelin Cup 2 (180 TW), Toyo R888R (100 TW)
    • Semi-Slick:Hoosier R7 & A7(40 TW)



Additional Resources

Should I Dial in Negative Camber, and How Much is Right for me?


Whether you are a casual weekend track warrior that still enjoys your car on the street, or a hardcore racer competing for a spot on the podium, negative camber is a vital part of chassis setup that has many benefits. Not only will adding negative camber create more room for wider wheel and tire configurations, it more importantly improves handling, turn-in and tire longevity. Learn more in our blog article, The Positives of Negative Camber.
