Second Generation GR86 (ZD8/ZN8) Wheel & Tire Fitment Guide

  • Updated

Scion FR-S, Toyota 86 Wheel and Tire Fitment Guide




View all 2nd Gen 86/BRZ Images

Vehicle Covered in this Guide
2022 - Current Toyota GR86, Subaru BRZ

*Click Here to review our Gen 1 Toyota 86 Guide

Brake Clearance Information

In the engineering phase of wheel development we 3D scan factory brakes and review 2D aftermarket brake templates in order to optimize our barrel profiles and spoke curvatures. As a result, our wheels offer massive brake clearance so you can run the smallest possible wheel diameter.

All 17" & 18" APEX GR86 wheels were designed to clear the factory Performance Package Brembo Brakes from the first generation models, which can be adapted to this chassis.

Available Wheel Designs

Forged Designs  Flow Formed Designs

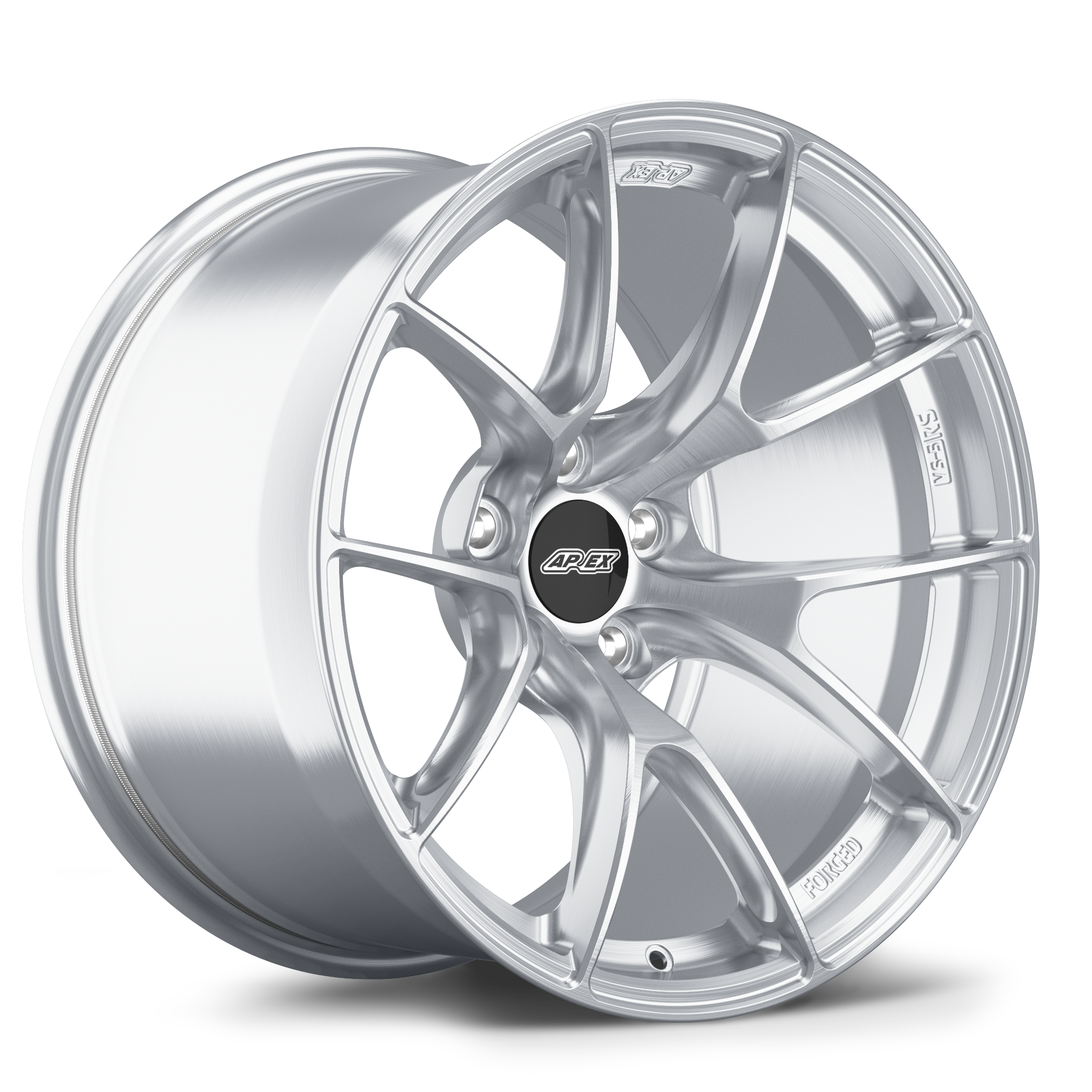

VS-5RS


Order Here

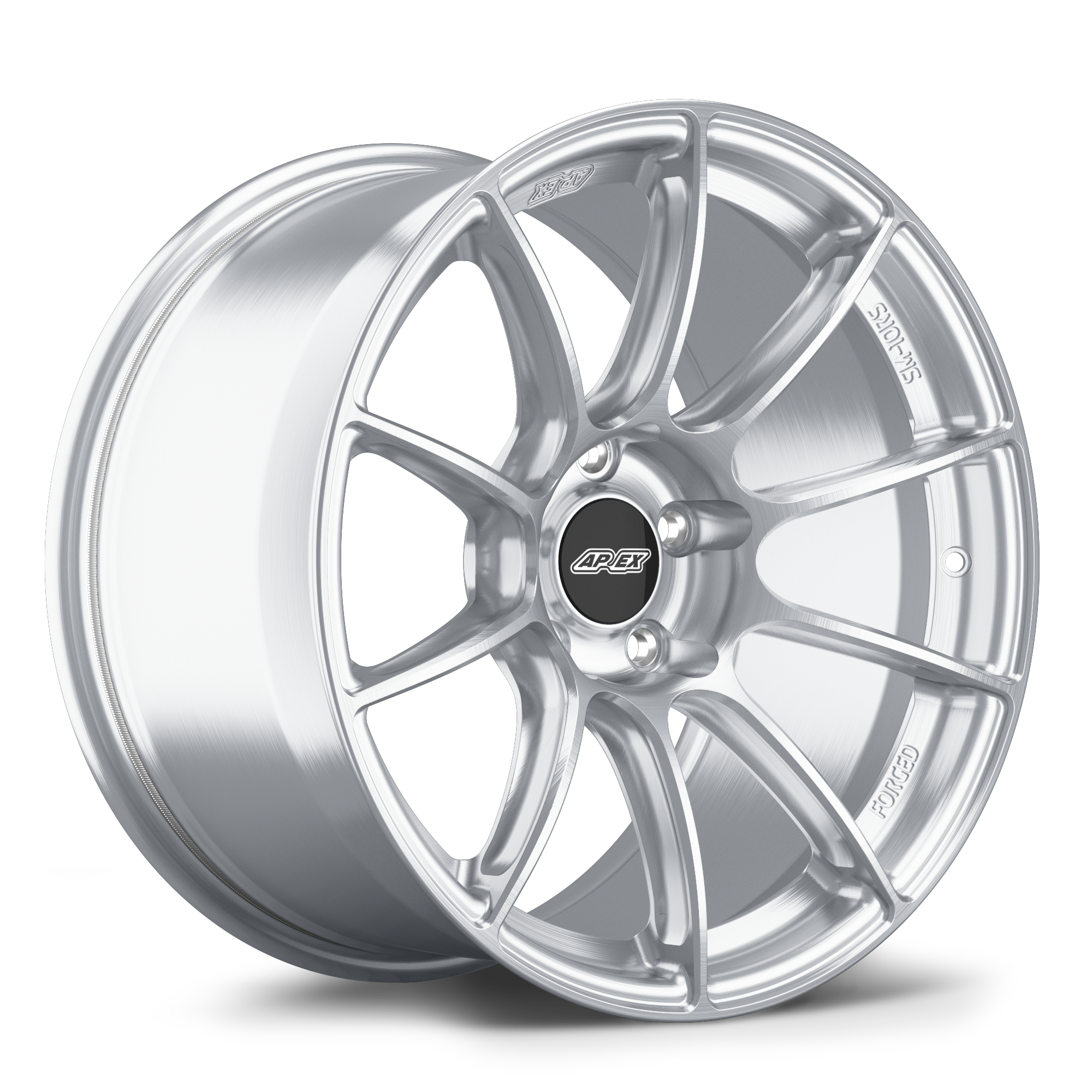

SM-10RS


Order Here

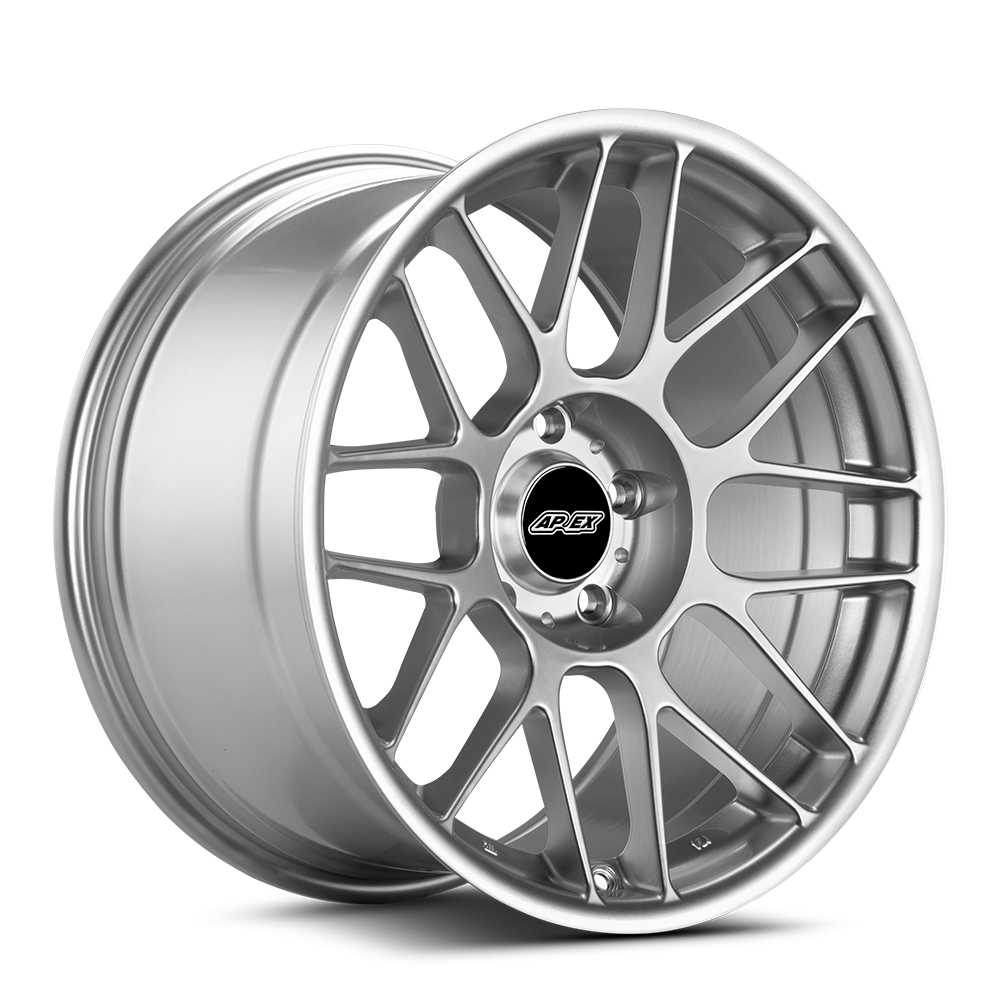

ARC-8

Order Here

Bolt Pattern
5x100mm

Center Bore
56.1mm

Lug Seat
60º Conical

 Thread Pitch
M12x1.25mm



OEM+

Easy upgrades for street-driven cars

These bolt-on wheel fitments are ideal for enthusiasts enjoying their car day-to-day on the street, and they are typically paired with all-season or performance oriented summer tires. These wheel and tire configurations will improve the appearance and performance of the car without requiring modifications to the factory suspension or alignment. Just bolt-on and enjoy!

While these wheel fitments can be used for track days and AutoX, performance will be left on the table. Drivers that prioritize performance should review our Performance Street & Track and/or Hardcore Track & Race sections below.

Wheels

  • Front & Rear: 17x8" ET40
    • Available in: VS-5RS, SM-10RS

Tires

  • APEX Staff Pick: Front & Rear: 225/45-17
    • Direct fit
    • Ultra High Performance All-Season: No options currently available
    • Max Performance Summer: No options currently available
    • Extreme Performance Summer: Yokohama AD08R (200 TW), Dunlop Direzza ZIII (200 TW), Falken Azenis RT660 (200 TW), Nankang NS-2R (200 TW)
    • R-Compound: Nitto NT01 (100 TW), Nankang AR-1 (100 TW), Toyo R888R (100 TW), Toyo RA1 (100 TW)
  • Wider Alternative: Front & Rear: 235/40-17
    • Direct fit
    • Ultra High Performance All-Season: No options currently available
    • Max Performance Summer: No options currently available
    • Extreme Performance Summer: Yokohama AD08R (200 TW), Dunlop Direzza ZIII (200 TW), Falken Azenis RT660 (200 TW), Nankang NS-2R (200 TW)
    • R-Compound: Nitto NT01 (100 TW), Nankang AR-1 (100 TW), Toyo R888R (100 TW), Toyo RA1 (100 TW)



Wheels

  • Front & Rear: 17x8.5" ET44
    • Available in: VS-5RS
    • Popular Fitment

Tires

  • APEX Staff Pick: Front & Rear: 235/40-17
    • Direct fit
    • Ultra High Performance All-Season: No options currently available
    • Max Performance Summer: No options currently available
    • Extreme Performance Summer: Yokohama AD08R (200 TW), Dunlop Direzza ZIII (200 TW), Falken Azenis RT660 (200 TW), Nankang NS-2R (200 TW)
    • R-Compound: Nitto NT01 (100 TW), Nankang AR-1 (100 TW), Toyo R888R (100 TW), Toyo RA1 (100 TW)
    • Semi-Slick: Toyo RR (40 TW)
  • Wider Alternative: Front & Rear: 245/40-17
    • Typically a direct fit, but an increase in negative camber is encouraged for wider compounds or lowered vehicles
    • Ultra High Performance All-Season: Michelin Pilot Sport AS4 (540 TW)
    • Max Performance Summer: Michelin Pilot Sport 4S (300 TW)
    • Extreme Performance Summer - Hankook RS-4 (220 TW), Yokohama A052 (200 TW), Dunlop Direzza ZIII (200 TW), BFG Rival S 1.5 (200 TW), Falken Azenis RT660 (200 TW), GT Radial SX2 (260 TW), Nankang CR-1 (200 TW)
    • R-Compounds: Nankang AR-1 (100TW), Toyo R888R (100 TW), Goodyear Eagle SuperCar 3R (100 TW)

Performance Street & Track

Wider fitments for enhanced performance

Whether you enjoy spirited street driving or you are a weekend track warrior chasing lap times, these wheel & tire configurations are ideal for enthusiasts looking for a more dramatic improvement in performance and they are typically paired with performance oriented Summer tires or track oriented R-compounds.

17” wheels keep weight and tire costs to a minimum, allow for improved ride quality, and will still clear factory Performance Package Brembo brakes with ease.

Wheels

  • Front & Rear: 17x9" ET48
    • Available in: VS-5RS, SM-10RS
    • Popular Fitment
    • These wheels require 5mm front spacers and extended wheel studs for strut clearance on OEM Gen 2 suspension. If additional negative camber has been dialed in at the knuckle, a larger spacer may be required.
    • With aftermarket coilovers a 10mm-15mm front spacer and extended wheel studs are recommended to bring wheels flush to fender.
    • Depending on tire size/model and how negative camber is achieved, shaving the inner lip on the rear quarter panel may be needed

Tires

  • APEX Staff Pick: Front & Rear: 245/40-17
    • Increased negative camber may be required for wider compounds or lowered vehicles
    • Ultra High Performance All-Season: Michelin Pilot Sport AS4 (540 TW)
    • Max Performance Summer: Michelin Pilot Sport 4S (300 TW)
    • Extreme Performance Summer - Hankook RS-4 (220 TW), Yokohama A052 (200 TW), Dunlop Direzza ZIII (200 TW), BFG Rival S 1.5 (200 TW), Falken Azenis RT660 (200 TW), GT Radial SX2 (260 TW), Nankang CR-1 (200 TW)
    • R-Compounds: Nankang AR-1 (100TW), Toyo R888R (100 TW), Goodyear Eagle SuperCar 3R (100 TW)
  • Wider Alternative: Front & Rear: 255/40-17
    • Increased negative camber is typically required
    • Ultra High Performance All-Season: Michelin Pilot Sport AS4 (540 TW)
    • Max Performance Summer: Continental ExtremeContact Sport (340 TW)
    • Extreme Performance Summer: Hankook RS-4 (220 TW), Yokohama A052 (200 TW), Dunlop Direzza ZIII (200 TW), BFG Rival S 1.5 (200 TW), Falken Azenis RT660 (200 TW), Nankang CR-1 (200 TW)
    • R-Compound: Nitto NT01 (100 TW), Nankang AR-1 (100 TW), Toyo R888R (100 TW), Michelin Pilot Sport Cup 2 (180 TW), Pirelli Trofeo R (60 TW), Toyo RA1 (100 TW)
  • Narrower Alternative: Front & Rear: 235/40-17
    • Typically a direct fit, but an increase in negative camber is encouraged for wider compounds or lowered vehicles
    • Ultra High Performance All-Season: No options currently available
    • Max Performance Summer: No options currently available
    • Extreme Performance Summer: Yokohama AD08R (200 TW), Dunlop Direzza ZIII (200 TW), Falken Azenis RT660 (200 TW), Nankang NS-2R (200 TW)
    • R-Compound: Nitto NT01 (100 TW), Nankang AR-1 (100 TW), Toyo R888R (100 TW), Toyo RA1 (100 TW)



Wheels

  • Front & Rear: 17x9" ET42
    • Available in: ARC-8
    • These wheels typically do not require any spacer. However, if additional negative camber has been dialed in at the knuckle, a 5mm front spacer may be needed.
    • Depending on tire size/model and how negative camber is achieved, shaving the inner lip on the rear quarter panel may be required

Tires

  • APEX Staff Pick: Front & Rear: 245/40-17
    • Increased negative camber may be required for wider compounds or lowered vehicles
    • Ultra High Performance All-Season: Michelin Pilot Sport AS4 (540 TW)
    • Max Performance Summer: Michelin Pilot Sport 4S (300 TW)
    • Extreme Performance Summer - Hankook RS-4 (220 TW), Yokohama A052 (200 TW), Dunlop Direzza ZIII (200 TW), BFG Rival S 1.5 (200 TW), Falken Azenis RT660 (200 TW), GT Radial SX2 (260 TW), Nankang CR-1 (200 TW)
    • R-Compounds: Nankang AR-1 (100TW), Toyo R888R (100 TW), Goodyear Eagle SuperCar 3R (100 TW)
  • Wider Alternative: Front & Rear: 255/40-17
    • Increased negative camber is typically required
    • Ultra High Performance All-Season: Michelin Pilot Sport AS4 (540 TW)
    • Max Performance Summer: Continental ExtremeContact Sport (340 TW)
    • Extreme Performance Summer: Hankook RS-4 (220 TW), Yokohama A052 (200 TW), Dunlop Direzza ZIII (200 TW), BFG Rival S 1.5 (200 TW), Falken Azenis RT660 (200 TW), Nankang CR-1 (200 TW)
    • R-Compound: Nitto NT01 (100 TW), Nankang AR-1 (100 TW), Toyo R888R (100 TW), Michelin Pilot Sport Cup 2 (180 TW), Pirelli Trofeo R (60 TW), Toyo RA1 (100 TW)
  • Narrower Alternative: Front & Rear: 235/40-17
    • Typically a direct fit, but an increase in negative camber is encouraged for wider compounds or lowered vehicles
    • Ultra High Performance All-Season: No options currently available
    • Max Performance Summer: No options currently available
    • Extreme Performance Summer: Yokohama AD08R (200 TW), Dunlop Direzza ZIII (200 TW), Falken Azenis RT660 (200 TW), Nankang NS-2R (200 TW)
    • R-Compound: Nitto NT01 (100 TW), Nankang AR-1 (100 TW), Toyo R888R (100 TW), Toyo RA1 (100 TW)
  •

Wheels

  • Front & Rear: 18x9" ET42
    • Available in VS-5RS, SM-10RS

Tires

  • APEX Staff Pick: Front & Rear: 255/35-18
    • Extreme Performance Summer: Hankook Ventus R-S4 (200TW), Dunlop Direzza ZIII (200TW), Falken Azenis RT660 (200TW), Yokohama A052 (200TW), Michelin Pilot Sport Cup 2 Connect (240TW), Yokohama AD08R (200TW), Nankang CR-1 (200 TW)
    • R-Compound: Michelin Pilot Sport Cup 2 (180TW), Nankang AR-1 (100TW), Toyo Proxes R888R (100TW)
    • Semi-Slick: Hoosier R7 (40TW), Hoosier A7 (40TW), Toyo Proxes RR (40TW)
  • Wider Alternative: Front & Rear: 265/35-18
    • A minimum of approximately -2º of camber is required both front and rear, depending on vehicle ride height and tire model. Rear quarter panel shaving required. Amount will depend on camber settings and ride height.
    • Extreme Performance Summer: Hankook RS-4 (220 TW), Yokohama A052 (200 TW), Dunlop Direzza ZIII (200 TW), Falken Azenis RT660, Nankang CR-1 (200 TW)
    • R-Compound: Nankang AR-1 (100 TW), Toyo R888R (100 TW), Goodyear Supercar 3R (100 TW), Pirelli Trofeo R (60 TW)
    • Semi-Slick: BFGoodrich R1S (40 TW)
  • Narrower Alternative: Front & Rear: 245/35-18
    • Extreme Performance Summer: Continental Extremecontact Force (200 TW)
    • R-Compounds: Michelin Pilot Sport Cup2 (180 TW)
    • Semi-Slicks: Hoosier R7 (40 TW), Hoosier A7 (40 TW), Hankook Z214 C51





Hardcore Track & Race

All-out performance for fastest lap times

These wheel and tire configurations are best suited for hardcore track junkies and club racers competing for a spot on the podium.  Everything from Extreme Summer tires to full Racing Slicks are commonly used depending on your experience behind the wheel, class rules, etc.

Wheels

  • Front & Rear: 17x9.5" ET40
    • Available in VS-5RS
    • This is a very aggressive track-oriented fitment that will not work for cars on factory suspension. Aggressive alignment settings, suspension modifications, and body trimming are required.

Tires

  • APEX Staff Pick: Front & Rear: 255/40-17
    • A minimum of approximately -2.5º of camber is required both front and rear, depending on vehicle ride height and tire model. Rear quarter panel shaving required. Amount will depend on camber settings and ride height.
    • Extreme Performance Summer: Hankook RS-4 (220 TW), Yokohama A052 (200 TW), Dunlop Direzza ZIII (200 TW), BFG Rival S 1.5 (200 TW), Falken Azenis RT660 (200 TW), Nankang CR-1 (200 TW)
    • R-Compound: Nitto NT01 (100 TW), Nankang AR-1 (100 TW), Toyo R888R (100 TW), Michelin Pilot Sport Cup 2 (180 TW), Pirelli Trofeo R (60 TW), Toyo RA1 (100 TW)
    • Semi-Slick: Toyo RR (40 TW)
  • Narrow Alternative: Front & Rear: 245/40-17
    • A minimum of approximately -2.5º of camber is required both front and rear, depending on vehicle ride height and tire model. Rear quarter panel shaving required. Amount will depend on camber settings and ride height.
    • Extreme Performance Summer - Hankook RS-4 (220 TW), Yokohama A052 (200 TW), Dunlop Direzza ZIII (200 TW), BFG Rival S 1.5 (200 TW), Falken Azenis RT660 (200 TW), GT Radial SX2 (260 TW), Nankang CR-1 (200 TW)
    • R-Compounds: Nankang AR-1 (100TW), Toyo R888R (100 TW), Goodyear Eagle SuperCar 3R (100 TW)
    • Semi Slick: Hoosier R7 (40 TW), Hoosier A7 (40 TW), BFG R1 (40 TW), BFG R1S (40 TW), Toyo RR (40 TW)

Wheels

  • Front & Rear: 17x10" ET45
    • Available in SM-10RS
    • This is a very aggressive track-oriented fitment that will not work for cars on factory suspension. Aggressive alignment settings, suspension modifications, body trimming, and at least a 12.5mm spacer is required.

Tires

  • APEX Staff Pick: Front & Rear: 255/40-17
    • A minimum of approximately -2.5º of camber is required both front and rear, depending on vehicle ride height and tire model. Rear quarter panel shaving required. Amount will depend on camber settings and ride height.
    • Extreme Performance Summer: Hankook RS-4 (220 TW), Yokohama A052 (200 TW), Dunlop Direzza ZIII (200 TW), BFG Rival S 1.5 (200 TW), Falken Azenis RT660 (200 TW), Nankang CR-1 (200 TW)
    • R-Compound: Nitto NT01 (100 TW), Nankang AR-1 (100 TW), Toyo R888R (100 TW), Michelin Pilot Sport Cup 2 (180 TW), Pirelli Trofeo R (60 TW), Toyo RA1 (100 TW)
    • Semi-Slick: Toyo RR (40 TW)

Wheels

  • Front & Rear: 18x9.5" ET40
    • Available in VS-5RS, SM-10RS
    • This is a very aggressive track-oriented fitment that will not work for cars on factory suspension. Aggressive alignment settings, suspension modifications, and body trimming are required.

Tires

  • APEX Staff Pick: Front & Rear: 255/35-18
    • A minimum of approximately -2.5º of camber is required both front and rear, depending on vehicle ride height and tire model. Rear quarter panel shaving required. Amount will depend on camber settings and ride height.
    • Extreme Performance Summer: Hankook Ventus R-S4 (200TW), Dunlop Direzza ZIII (200TW), Falken Azenis RT660 (200TW), Yokohama A052 (200TW), Michelin Pilot Sport Cup 2 Connect (240TW), Yokohama AD08R (200TW), Nankang CR-1 (200 TW)
    • R-Compound: Michelin Pilot Sport Cup 2 (180TW), Nankang AR-1 (100TW), Toyo Proxes R888R (100TW)
    • Semi-Slick: Hoosier R7 (40TW), Hoosier A7 (40TW), Toyo Proxes RR (40TW)
  • Wider Alternative: Front & Rear: 265/35-18
    • A minimum of approximately -3º of camber is required both front and rear, depending on vehicle ride height and tire model. Rear quarter panel shaving required. Amount will depend on camber settings and ride height.
    • Extreme Performance Summer: Hankook RS-4 (220 TW), Yokohama A052 (200 TW), Dunlop Direzza ZIII (200 TW), Falken Azenis RT660, Nankang CR-1 (200 TW)
    • R-Compound: Nankang AR-1 (100 TW), Toyo R888R (100 TW), Goodyear Supercar 3R (100 TW), Pirelli Trofeo R (60 TW)
    • Semi-Slick: BFGoodrich R1S (40 TW)
  • Narrower Alternative: Front & Rear: 245/35-18
    • A minimum of approximately -2.5º of camber is required both front and rear, depending on vehicle ride height and tire model. Rear quarter panel shaving required. Amount will depend on camber settings and ride height.
    • Extreme Performance Summer: Continental Extremecontact Force (200 TW)
    • R-Compounds: Michelin Pilot Sport Cup2 (180 TW)
    • Semi-Slicks: Hoosier R7 (40 TW), Hoosier A7 (40 TW), Hankook Z214 C51

Additional Resources




Brake Clearance Information

In the engineering phase of wheel development we 3D scan factory brakes and review 2D aftermarket brake templates in order to optimize our barrel profiles and spoke curvatures. As a result, our wheels offer massive brake clearance so you can run the smallest possible wheel diameter. The following brakes have been tested and confirmed to clear our wheels.



Apex Race Parts

VS-5RS

17x8.5" ET44

VS-5RS

17x9" ET48

ARC-8

17x9" ET42

VS-5RS

17x9.5" ET40

EC-7R

17x9.5" ET40

EC-7R

18x9.5" ET40
OEM Brakes Clears Clears Clears Clears Clears Clears
OEM PP Brakes Clears Clears Clears Clears Clears Clears

AP Essex 13.01.10151

CP9660 Front 6 Piston // 372x34mm

 Barrel Barrel Check Pending 11mm Spacer Needed Check Pending Check Pending

AP Essex 13.01.10152

CP9668 Front 6 Piston // 372x34mm

 Barrel 25mm Spacer Needed Check Pending 16mm Spacer Needed Check Pending Check Pending

AP Essex 13.01.10148

CP9660 Front 6 Piston // 355x32mm

 3mm Spacer Needed 1mm Spacer Needed Check Pending Clears Check Pending Check Pending

AP Essex 13.01.10149

CP9668 Front 6 Piston // 355x32mm

 9mm Spacer Needed 7mm Spacer Needed Check Pending 5mm Spacer Needed Check Pending Check Pending

AP Essex 13.01.10150

CP9451 Front 4 Piston // 340x28mm

 Clears Clears Check Pending Clears Check Pending Check Pending

AP Essex 13.01.10147

CP8350 Front 4 Piston // 325x32mm

 Clears Clears Check Pending Clears Check Pending Check Pending

AP Essex 13.01.10153

CP8350 Front 4 Piston // 299x32mm

 Clears Clears Check Pending Clears Check Pending Check Pending

Brembo Front 1M1.8047A

GT/GT-S/GT-R Front 6pot 355x32mm

 Barrel Barrel Barrel Barrel Barrel Clears

Brembo Front 1P1.8002A

GT/GT-S/GT-R Front 4pot 345x28mm

 Barrel Barrel
 Barrel Barrel Barrel Clears

Brembo Front 1H1.7003A

GT Front 4pot 332x32mm

 Clears Clears 2mm Spacer Needed Clears Clears Clears

Brembo Front 1S4.6003A

CSG Spec BM4 Front 4 Pot // 326x30mm

 Clears Clears 7mm Spacer Needed Clears Clears Clears

Brembo Front 1H4.6005A

GT Front 4pot 326x30mm

 4mm Spacer Needed 4mm Spacer Needed 7mm Spacer Needed 2mm Spacer Needed Clears Clears

Brembo Race Front 3K2.8016A

RACE Front 4pot 355x32mm

 5mm Spacer Needed Clears 14mm Spacer Needed Clears 12mm Spacer Needed Clears

Brembo Race Front 3K2.7001A

RACE Front 4pot 332x32mm

 Clears Clears Clears Clears Clears Clears

Brembo Rear 2P1.8042A

GT/GT-S/GT-R Rear 4pot 345x28mm

 Barrel Barrel Barrel Barrel Barrel Clears

Brembo Rear 2E4.5003A

GT Rear 2pot 316x20mm

 Clears Clears Clears Clears Clears Clears

Stoptech Front 83.827.4700.XX

Front ST40 4pot 355x32mm

 2mm Spacer Needed Clears Barrel Clears 6mm Spacer Needed Clears

Stoptech Front 83.827.4300.XX

Front ST40 4pot 328x32mm

 Clears Clears Clears Clears Clears Clears

Stoptech Front 98.827.2KS0.00

Front C43 Race 4 pot 309.6x32mm

 Clears Clears Clears Clears Clears Clears

Stoptech Rear 83.827.002G.XX

Rear ST22 2pot 345x28mm

 Clears Clears Clears Clears Clears Clears

Stoptech Rear 98.841.2LR1.00

Rear C42 2 pot 298x20.6mm

 Clears Clears Clears Clears Clears Clears

Wilwood Front 140-12870

Front 6 Piston // 326x28mm

 Clears Clears Clears Clears Check Pending Check Pending

Wilwood Rear 140-12871

Rear 4 Piston // 326x20mm

 Clears Clears Check Pending Clears Check Pending Check Pending



Should I Dial in Negative Camber, and How Much is Right for me?

Whether you are a casual weekend track warrior that still enjoys your car on the street, or a hardcore racer competing for a spot on the podium, negative camber is a vital part of chassis setup that has many benefits. Not only will adding negative camber create more room for wider wheel and tire configurations, it more importantly improves handling, turn-in and tire longevity. Learn more in our blog article, The Positives of Negative Camber.



Still have questions?
Fill out our Fitment Recommendation form
Call us: 925-245-0773
Email us: support@apexraceparts.com
