Honda S2000 Wheel and Tire Fitment Guide
Vehicle Covered in this Guide
2000 - 2009 Honda S2000
Brake Clearance Information
In the engineering phase of wheel development we 3D scan factory brakes and review 2D aftermarket brake templates in order to optimize our barrel profiles and spoke curvatures. As a result, our wheels offer massive brake clearance so you can run the smallest possible wheel diameter.
Centering Ring Information
All APEX S2000 wheels are purpose built with a 5x114.3mm bolt pattern and 70.1mm center bore which allow enthusiasts to rotate wheels & tires on all four corners. To account for the smaller factory 64.1mm rear hub specifications, we offer aluminum centering rings.
Important:
- Factory Honda lug nuts CANNOT be used with Apex wheels. 60º conical lug nuts are required.
Available Wheel Designs
|

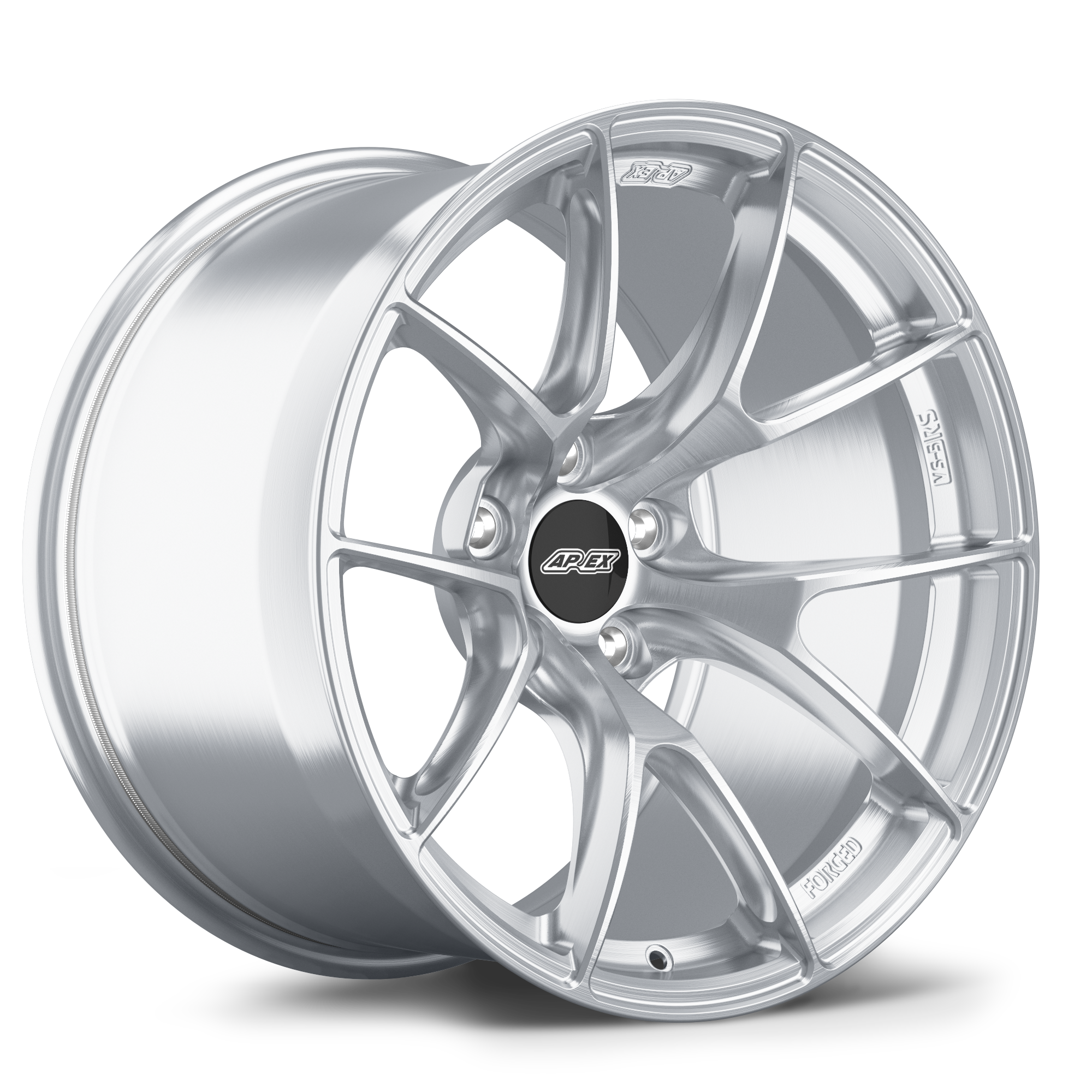

VS-5RS |

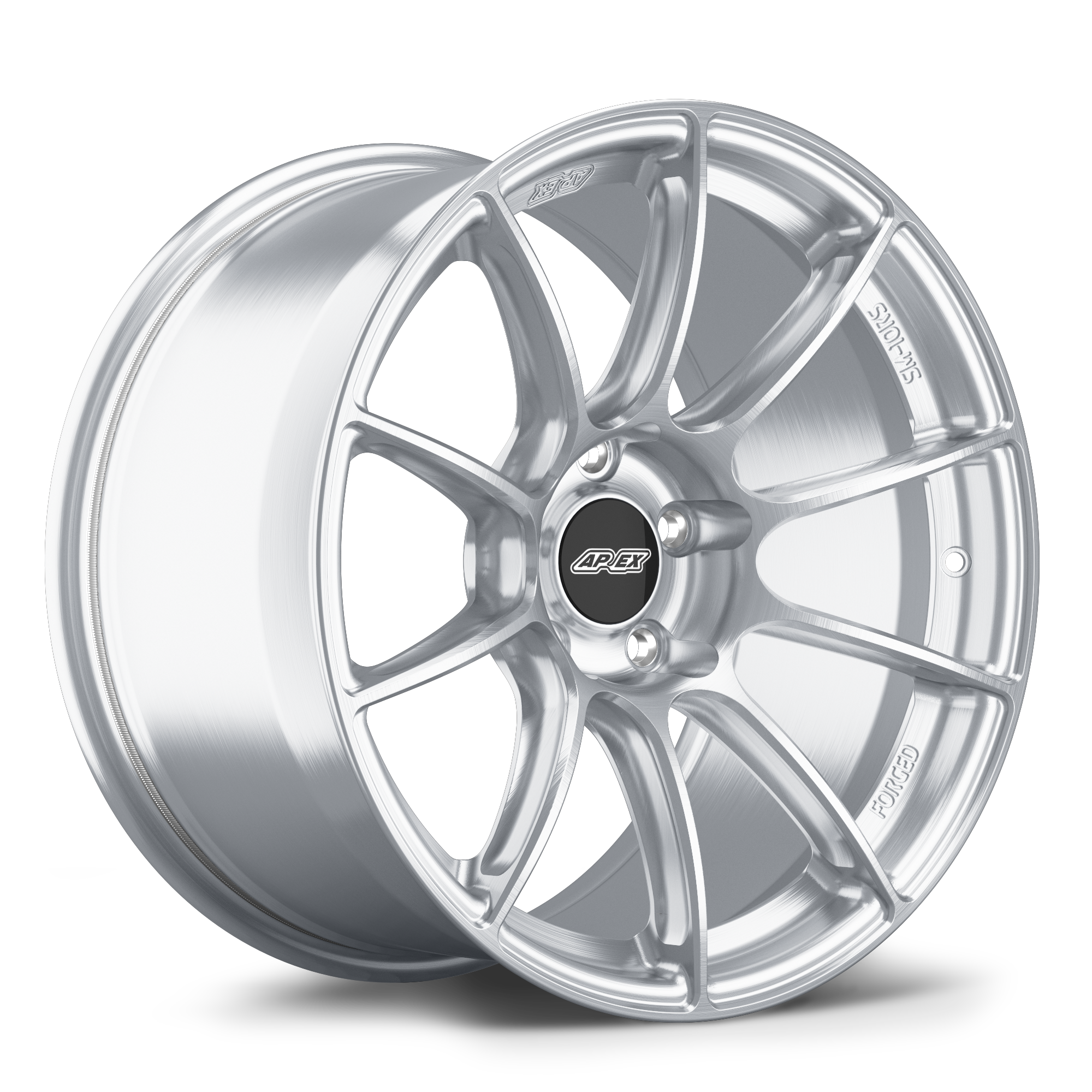

SM-10RS |
|
Bolt Pattern |
Center Bore |
Lug Seat |
Thread Pitch M12x1.5mm |
Performance Street & Track
Wider fitments for enhanced performance
Whether you enjoy spirited street driving or you are a weekend track warrior chasing lap times, these wheel & tire configurations are ideal for enthusiasts looking for a more dramatic improvement in performance and they are typically paired with performance oriented Summer tires or track oriented R-compounds.
Wheels
- Front & Rear: 17x9" ET61
- Available in VS-5RS, SM-10RS
- Popular Fitment
- Designed to clear the front upper control arms at full lock under load.
Tires
- APEX Staff Pick: Front & Rear: 245/40-17
- Typically a direct fit, but a mild increase in negative camber is encouraged if you plan to run a track/race compound that runs wide.
- Ultra High Performance All-Season: Michelin Pilot Sport AS4 (540 TW)
- Max Performance Summer: Michelin Pilot Sport 4S (300 TW)
- Extreme Performance Summer - Hankook RS-4 (220 TW), Yokohama A052 (200 TW), Dunlop Direzza ZIII (200 TW), BFG Rival S 1.5 (200 TW), Falken Azenis RT660 (200 TW), GT Radial SX2 (260 TW), Nankang CR-1 (200 TW)
- R-Compounds: Nankang AR-1 (100TW), Toyo R888R (100 TW), Goodyear Eagle SuperCar 3R (100 TW)
- Semi Slick: Hoosier R7 (40 TW), Hoosier A7 (40 TW), BFG R1 (40 TW), BFG R1S (40 TW), Toyo RR (40 TW)
- Wider Alternative: Front & Rear: 255/40-17
- A mild increase in negative camber is typically required
- Ultra High Performance All-Season: Michelin Pilot Sport AS4 (540 TW)
- Max Performance Summer: Continental ExtremeContact Sport (340 TW)
- Extreme Performance Summer: Hankook RS-4 (220 TW), Yokohama A052 (200 TW), Dunlop Direzza ZIII (200 TW), BFG Rival S 1.5 (200 TW), Falken Azenis RT660 (200 TW), Nankang CR-1 (200 TW)
- R-Compound: Nitto NT01 (100 TW), Nankang AR-1 (100 TW), Toyo R888R (100 TW), Michelin Pilot Sport Cup 2 (180 TW), Pirelli Trofeo R (60 TW), Toyo RA1 (100 TW)
- Semi-Slick: Toyo RR (40 TW)
- Narrower Alternative: Front & Rear: 235/40-17
- Direct fit
- Ultra High Performance All-Season: No options currently available
- Max Performance Summer: No options currently available
- Extreme Performance Summer: Yokohama AD08R (200 TW), Dunlop Direzza ZIII (200 TW), Falken Azenis RT660 (200 TW), Nankang NS-2R (200 TW)
- R-Compound: Nitto NT01 (100 TW), Nankang AR-1 (100 TW), Toyo R888R (100 TW), Toyo RA1 (100 TW)
- Semi-Slick: Toyo RR (40 TW)
Wheels
- Front & Rear: 17x9.5" ET51, 17x9.5" ET51 Ver. B
- Available in VS-5RS, SM-10RS
- 17x9.5" ET51 Ver. B offers increased concavity in exchange for only clearing stock brakes.
- Popular Fitment
- Designed to clear the upper front control arm at full lock under load.
Tires
- APEX Staff Pick: Front & Rear: 255/40-17
- A minimum of -2º to -2.5º of camber all around is typically required
- Rolling front and rear fenders is typically required
- Ultra High Performance All-Season: Michelin Pilot Sport AS4 (540 TW)
- Max Performance Summer: Continental ExtremeContact Sport (340 TW)
- Extreme Performance Summer: Hankook RS-4 (220 TW), Yokohama A052 (200 TW), Dunlop Direzza ZIII (200 TW), BFG Rival S 1.5 (200 TW), Falken Azenis RT660 (200 TW), Nankang CR-1 (200 TW)
- R-Compound: Nitto NT01 (100 TW), Nankang AR-1 (100 TW), Toyo R888R (100 TW), Michelin Pilot Sport Cup 2 (180 TW), Pirelli Trofeo R (60 TW), Toyo RA1 (100 TW)
- Semi-Slick: Toyo RR (40 TW)
- Narrower Alternative: Front & Rear: 245/40-17
- A minimum of -2º camber all around is typically required
- Rolling front and rear fenders is typically required
- Ultra High Performance All-Season: Michelin Pilot Sport AS4 (540 TW)
- Max Performance Summer: Michelin Pilot Sport 4S (300 TW)
- Extreme Performance Summer - Hankook RS-4 (220 TW), Yokohama A052 (200 TW), Dunlop Direzza ZIII (200 TW), BFG Rival S 1.5 (200 TW), Falken Azenis RT660 (200 TW), GT Radial SX2 (260 TW), Nankang CR-1 (200 TW)
- R-Compounds: Nankang AR-1 (100TW), Toyo R888R (100 TW), Goodyear Eagle SuperCar 3R (100 TW)
- Semi Slick: Hoosier R7 (40 TW), Hoosier A7 (40 TW), BFG R1 (40 TW), BFG R1S (40 TW), Toyo RR (40 TW)
Hardcore Track & Race
All-out performance for fastest lap times
These wheel and tire configurations are best suited for hardcore track junkies and club racers competing for a spot on the podium. Everything from Extreme Summer tires to full Racing Slicks are commonly used depending on your experience behind the wheel, class rules, etc.
This is our most aggressive wheel fitment for weekend track warriors and hard core racers seeking maximum tire sidewall support. These 10" wheel widths will require supportive modifications commonly found on track cars, and may still lightly scrub the plastic fender liners at full steering lock or under heavy suspension compression.
Wheels
- Front & Rear: 17x10" ET48
- Available in VS-5RS, SM-10RS
- Popular Fitment
- This aggressive fitment may make contact with upper control arm at full lock. Steering limiters are recommended .
Tires
- APEX Staff Pick: Front & Rear: 255/40-17
- Typically requires a minimum of -3º camber front and rear. Offset upper balljoints are recommended.
- Fenders need to be rolled flat. Pulling the fenders will provide even more clearance, but is not always a necessity.
- Relocating the rear fender tabs is recommended.
- Max Performance Summer: Continental ExtremeContact Sport (340 TW)
- Extreme Performance Summer: Hankook RS-4 (220 TW), Yokohama A052 (200 TW), Dunlop Direzza ZIII (200 TW), BFG Rival S 1.5 (200 TW), Falken Azenis RT660 (200 TW), Nankang CR-1 (200 TW)
- R-Compound: Nitto NT01 (100 TW), Nankang AR-1 (100 TW), Toyo R888R (100 TW), Michelin Pilot Sport Cup 2 (180 TW), Pirelli Trofeo R (60 TW), Toyo RA1 (100 TW)
- Semi-Slick: Toyo RR (40 TW)
- Wider Alternative: Front & Rear: 275/35-17
- Typically requires a minimum of -3º camber front and rear. Offset upper balljoints are recommended.
- Fenders need to be rolled flat. Pulling the fenders will provide even more clearance, but is not always a necessity.
- Relocating the rear fender tabs is recommended.
- Max Performance Summer: Pirelli P Zero Rosso (220 TW)
- Semi Slick: Hoosier R7 (40 TW), Hoosier A7 (40 TW)
Additional Resources
Brake Clearance Information
In the engineering phase of wheel development we 3D scan factory brakes and review 2D aftermarket brake templates in order to optimize our barrel profiles and spoke curvatures. As a result, our wheels offer massive brake clearance so you can run the smallest possible wheel diameter. The following brakes have been tested and confirmed to clear our wheels.
 |
VS-5RS 17x9" ET61 |
VS-5RS 17x9.5" ET51 |
VS-5RS 17x10" ET48 |
| OEM Brakes | Clears | Clears | Clears |
| AP Racing Front
13.01.10003/4 CP8350 4 Piston // 299x32mm |
28mm Spacer Needed | Clears |
3mm Spacer Needed |
|
Brembo Front 1A1.6016A 4 Piston // 328x28mm |
- | Clears | Clears |
|
Brembo Rear 2P1.6009A/10A 4 Piston // 328x28mm |
- | 8mm Spacer Needed | 9mm Spacer Needed |
|
Project Mu Single Piston // 330x25mm |
Clears | No Data | No Data |
|
Sakebomb Garage Front Wilwood Trackday Kit 4 Piston // 325x32mm |
22mm Spacer Needed | Clears | Clears |
|
Sakebomb Garage Rear RX8 Rear Caliper // 314x20mm |
Clears | No Data | No Data |
|
Spoon Sports 4 Piston // 300x25mm |
22mm Spacer Needed | Clears | Clears |
|
Stoptech Front 83.429/435.6700.XX ST-60 // 355x32mm |
25mm Spacer Needed |
2mm Spacer Needed | Clears |
|
Stoptech Front 83.429/435.4700.XX ST-40 // 355x32mm |
24mm Spacer Needed | 7mm Spacer Needed | Clears |
|
Stoptech Front 83.429/435.4300.XX ST-40 // 328x28mm |
22mm Spacer Needed | Clears | Clears |
|
Stoptech Front 87-429-D900-R7-3 C43 // 355x32mm |
26mm Spacer Needed | Clears | Clears |
|
Stoptech Rear 83.429/435.012F.XX ST-22 // 322x22mm |
14mm Spacer Needed |
Clears | Clears |
|
Wilwood Front 140-14965 Superlite 6R // 327x32mm |
25mm Spacer Needed |
Clears | Clears |
|
Wilwood Front 140-10309 Narrow Superlite 6R // 327x28mm |
14mm Spacer Needed |
Clears | Clears |
|
Wilwood Rear 140-16347 Narrow Superlite 4R // 327x20mm |
14mm Spacer Needed |
Clears | Clears |
Should I Dial in Negative Camber, and How Much is Right for me?
Whether you are a casual weekend track warrior that still enjoys your car on the street, or a hardcore racer competing for a spot on the podium, negative camber is a vital part of chassis setup that has many benefits. Not only will adding negative camber create more room for wider wheel and tire configurations, it more importantly improves handling, turn-in and tire longevity. Learn more in our blog article The Positives of Negative Camber.
